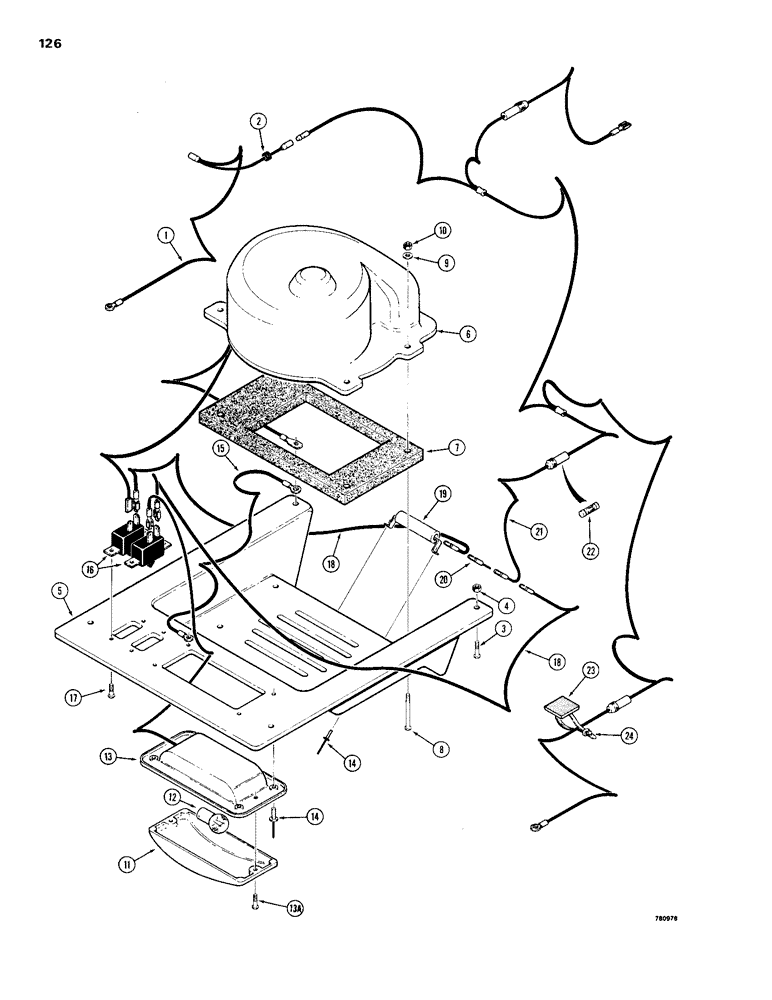

Запчасти Case 1150B (126) - CAB ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

R39626

WIRE

1шт.

2

353-700

BUSHING

GROMMET - rubber

1шт.

3

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- machine, no. 10 - 24 NC x 5/8", plated

4шт.

4

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

NUT - hex, self lock, no. 10 - 24 NC

4шт.

5

R39543

COVER

1шт.

6

L36309

ELECTRIC MOTOR

DEFOGGER

1шт.

7

F43619

SEAL

1шт.

8

182-520

SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"

- machine, no. 10 - 24 NC x 1-1/4"

4шт.

9

195-516

WASHER,#12

- flat, no. 10

4шт.

10

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

R41377

LAMP

ASSEMBLY - dome, Includes: Refs. 11 - 14

1шт.

11

D71458

LAMP

LENS

1шт.

12

D71459

LAMP

BULB - trade no. 1591

1шт.

13

NSS

NOT SOLD SEPARAT

BODY

1шт.

13a

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

- no. 8 -32 NC x 1/4"

2шт.

14

151-527

RIVET - pop, 5/32" x 1/2" Pop, 5/32" x .517"

6шт.

15

R39545

CABLE

WIRE - ground

1шт.

16

D75876

IGNITION SWITCH

SWITCH

2шт.

17

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- machine, no. 6 - 32 NC x 1/2"

4шт.

18

A34860

ELECTRICAL WIRE

WIRE

2шт.

19

F43625

RESISTOR

- 10 ohm, 25W

1шт.

20

A34863

ADAPTER

CONNECTOR - electrical

1шт.

21

R37696

HARNESS - cab, Includes: Ref. 22

1шт.

22

223-38

FUSE,3 Amp, Type 3AG

- 3 amp, no. AGC

3шт.

23

R37564

CLIP

- harness

3шт.

24

R40745

STRAP

TIE

3шт.
