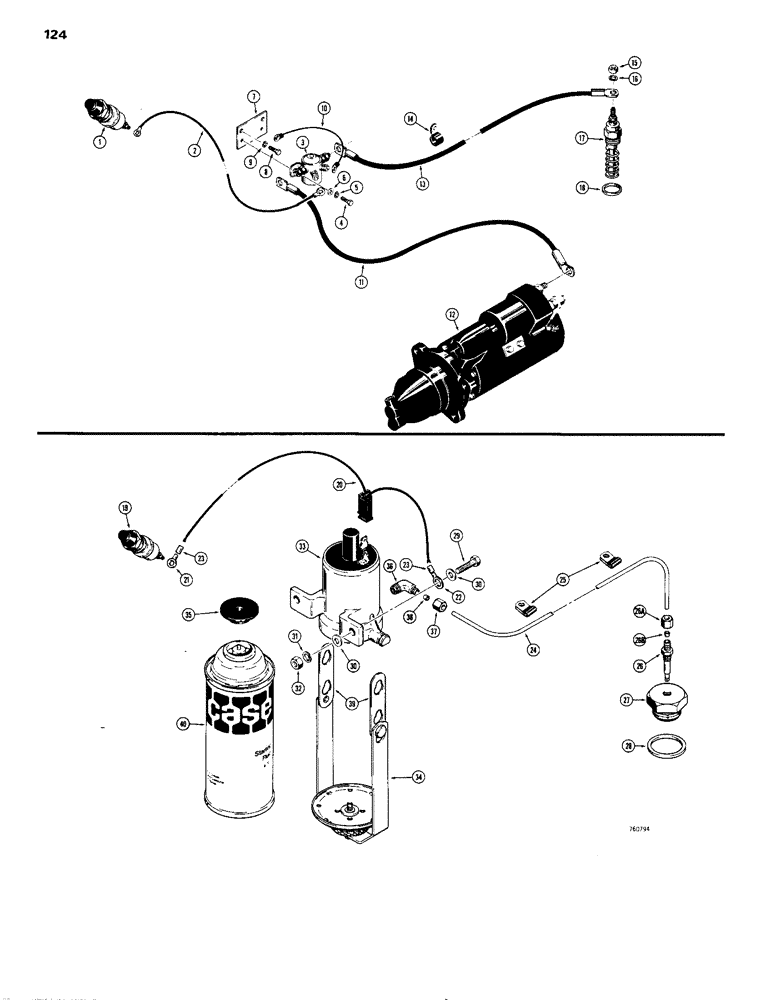

Запчасти Case 1150B (124) - ENGINE PRE-HEATER (06) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

- push button

1шт.

2

F21342

ELECTRICAL WIRE

WIRE -, Serial Range: switch-solenoid

1шт.

3

D31479

SOLENOID SWITCH

SOLENOID - switch

1шт.

4

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

7

D47796

BRACKET

- solenoid mounting

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

10

D31548

ELECTRICAL WIRE

WIRE - ground

1шт.

11

D47797

CABLE

-, Serial Range: solenoid-starter

1шт.

12

REF

INSTRUCTION

STARTER - engine, parts list Fig. 96

1шт.

13

R29762

CABLE

-, Serial Range: solenoid-heater

1шт.

14

49838

CLAMP

- cable

1шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

A66333

HEATER

- manifold

1шт.

18

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

19

D34924

SWITCH

- push button, cold start aid ether injection

1шт.

20

R29794

CABLE

ASSEMBLY - solenoid, cold start aid ether injection

1шт.

21

223-325

TERMINAL - electrical, at switch, cold start aid ether injection

1шт.

22

223-326

TERMINAL - electrical, at ground, cold start aid ether injection

1шт.

23

223-83

SLEEVE

- insulating, if used, cold start aid ether injection

2шт.

24

R27253

PLASTIC-RUBBER TUBE,0.125" OD x 46" L

TUBE - nylon, cold start aid ether injection

1шт.

25

D43839

CLAMP

- tube, cold start aid ether injection

2шт.

A145069

NOZZLE INJECTION

INJECTOR ASSEMBLY - non-turbocharged models, cold start aid ether injection

1шт.

A145070

NOZZLE INJECTION

INJECTOR ASSEMBLY - turbocharged models, cold start aid ether injection, Includes: Refs. 26 - 26B

1шт.

26

NSS

NOT SOLD SEPARAT

INJECTOR, cold start aid ether injection

1шт.

26a

222-110

TUBE NUT,3/8"-24

NUT - compression, cold start aid ether injection

1шт.

26b

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression, cold start aid ether injection

1шт.

27

L10283

PLUG

- reducing, cold start aid ether injection

1шт.

28

A20916

MANIFOLD GASKET

GASSET - plug, cold start aid ether injection

1шт.

29

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", cold start aid ether injection

2шт.

30

195-21

WASHER,5/16"

- flat, , Cold start aid ether injection 5/16"

8шт.

31

92-5

LOCK WASHER,5/16"

WASHER - lock, , cold start aid ether injection 5/16"

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, cold start aid ether injection

2шт.

R29793

GLOW PLUG

SOLENOID AND ETHER CAN ASSEMBLY, cold start aid ether injection, Includes: Refs. 33 - 38

1шт.

33

NSS

NOT SOLD SEPARAT

SOLENOID - electrical, cold start aid ether injection

1шт.

34

D77648

BAIL

- can, cold start aid ether injection

1шт.

35

R30786

GASKET

- can, cold start aid ether injection

1шт.

36

A44809

FITTING

- 90 degree, compression, cold start aid ether injection

1шт.

37

222-110

TUBE NUT,3/8"-24

NUT - compression, cold start aid ether injection

1шт.

38

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression, cold start aid ether injection

1шт.

39

R30812

LINK

EXTENSION - bail, cold start aid ether injection

2шт.

40

B17072

START SPRAY FLUID

CAN - aerosol, cold start aid ether injection

1шт.
