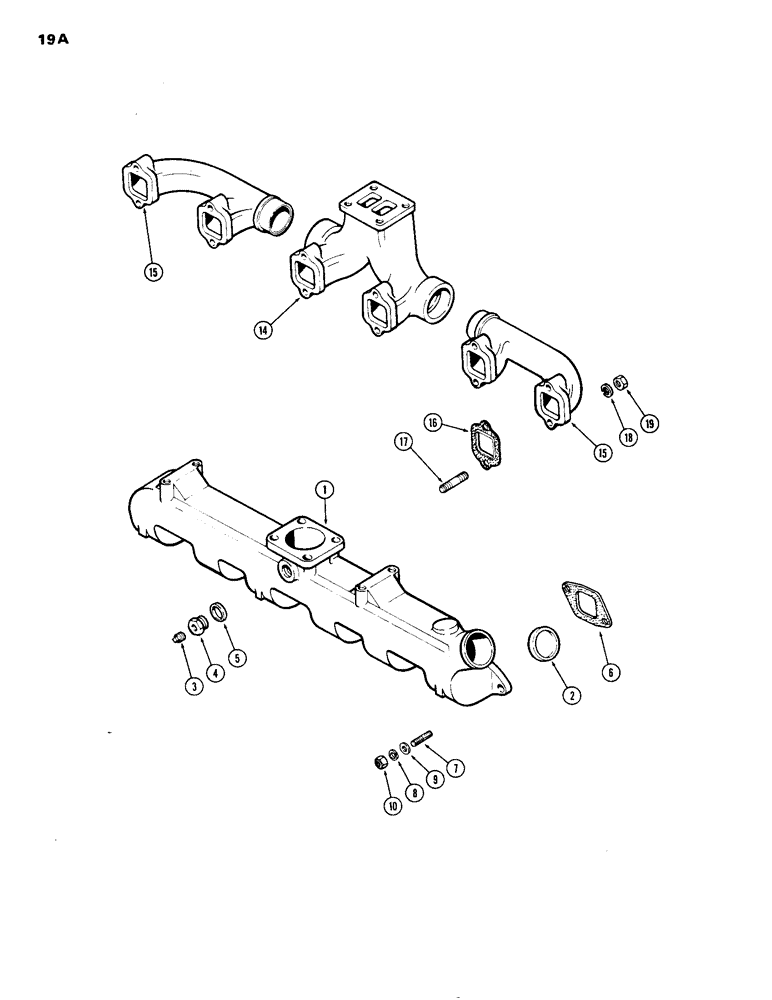

Запчасти Case 1150B (019A) - MANIFOLDS, (451BDT) DIESEL ENGINE, FOR ALTITUDE COMPENSATING ENGS. INTAKE MANIFOLD (01) - ENGINE

A66087

MANIFOLD

ASSEMBLY - intake, Includes: Refs. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup type (66.68 mm)

1шт.

3

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT, square head

1шт.

4

L10283

PLUG

- heater hole

1шт.

5

A20916

MANIFOLD GASKET

GASKET - heater hole plug

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A59077

STUD

- intake manifolds, 3/8" NC x 1-13/16"

12шт.

8

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

12шт.

9

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16"

12шт.

10

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" NC hex

12шт.

14

A76322

MANIFOLD

- exhaust, center

1шт.

15

A65917

MANIFOLD

- exhaust, ends

2шт.

16

A58895

GASKET

- exhaust manifold

6шт.

17

A140924

STUD

- exhaust manifold, 3/8" NC x 2-5/8"

12шт.

18

92-6

LOCK WASHER,3/8"

WASHER - lock, , exhaust manifold 3/8"

12шт.

19

131-903

NUT,3/8"-16

NUT - 3/8" NC hex, Seez-Pruf, exhaust manifold

12шт.
