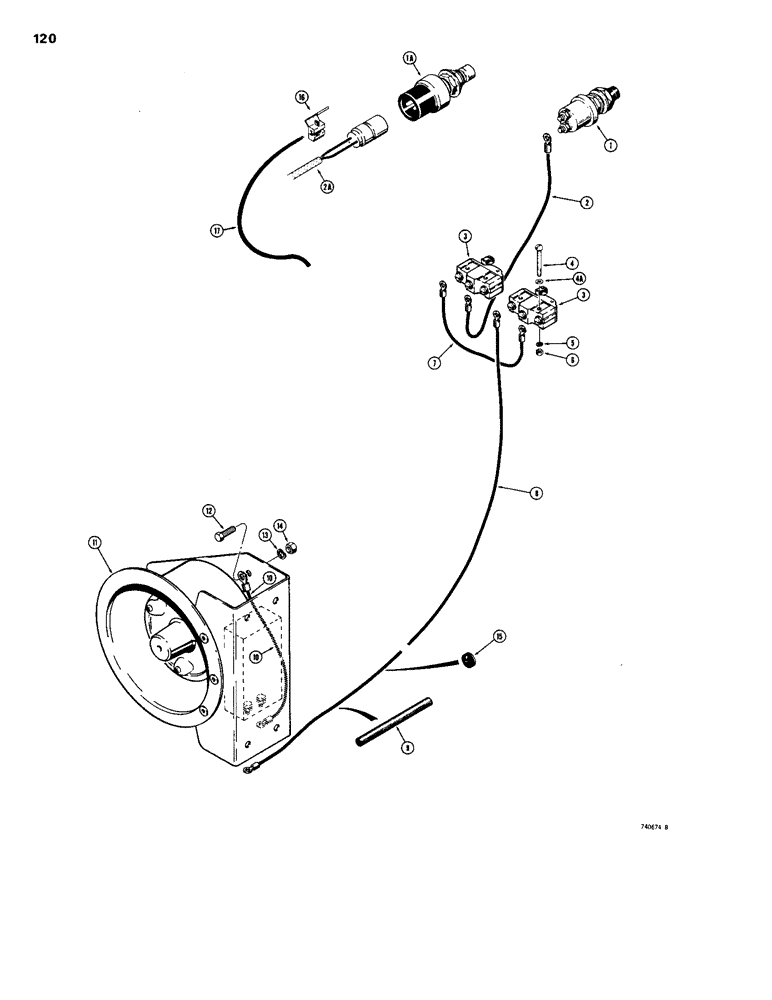

Запчасти Case 1150B (120) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

- push button start, requires spade type wire terminals, order R40432 switch, R40985 wire and R41086 connector

1шт.

1a

R40432

SWITCH

- push button start

1шт.

2

R34964

ELECTRICAL WIRE

WIRE - D34924 switch

1шт.

2a

R40985

ELECTRICAL WIRE

WIRE - R40432 switch

1шт.

3

L54683

SWITCH

- backup

2шт.

4

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- fillister head, slotted, no. 6 - 32 NC x 1-1/4"

4шт.

4a

195-7

WASHER,#6

- flat, no. 6

4шт.

5

195-89

WASHER - lock, no. 6

4шт.

6

129-15

NUT,#6-32

4шт.

7

R32483

ELECTRICAL WIRE

WIRE - alarm switch to alarm switch

1шт.

8

R34963

ELECTRICAL WIRE

WIRE - alarm, Serial Range: switch-alarm

1шт.

9

A23870

GROMMET

LOOM - wire

1шт.

10

R34956

ELECTRICAL WIRE

WIRE - ground, alarm

1шт.

11

S223033

BUZZER

ALARM - backup

1шт.

12

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

14

25-104

NUT,1/4"-20, G5

3шт.

15

A23870

GROMMET

- wire, if used

1шт.

16

R41086

CONNECTOR, ELEC

CONNECTOR - electrical

1шт.

17

R40987

WIRE

1шт.
