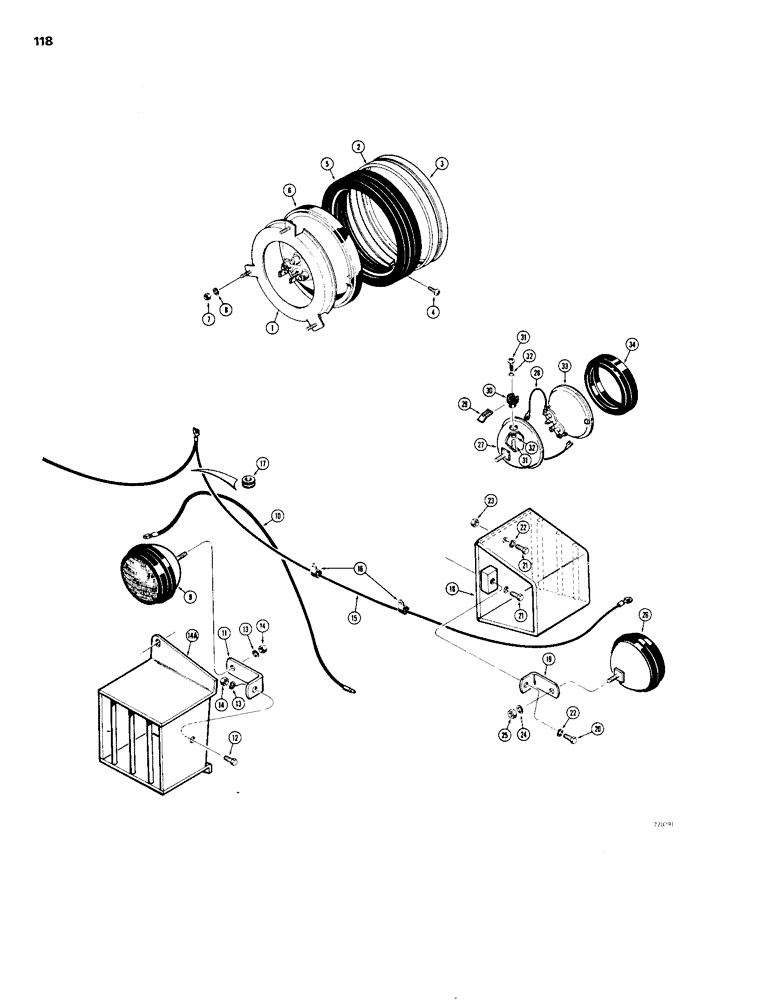

Запчасти Case 1150B (118) - D41701 HEADLIGHT ASSEMBLY (06) - ELECTRICAL SYSTEMS

D41701

LAMP

HEADLIGHT ASSEMBLY - 24 volt, Includes: Refs. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

FRAME - light

1шт.

2

A40693

HUB CAP

RETAINING RING - light, rear

1шт.

3

A40694

RETAINER

RETAINING RING - light, front

1шт.

4

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- round head machine, no. 10 -24 NC x 3/4", plated

2шт.

5

A40695

RING

RETAINER - light, rubber

1шт.

6

D37920

LAMP

LIGHT - sealed beam, 24 volt

1шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC, plated

6шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

9

L45149

HEADLIGHT

REAR LIGHT ASSEMBLY - 24 volt, parts list below

1шт.

10

A14733

ELECTRICAL WIRE

WIRE - rear light

1шт.

11

R30019

BRACKET

- light mounting, rear

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Rear light Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

13

92-8

LOCK WASHER,1/2"

rear light 1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, rear light

2шт.

14a

R30018

GUARD

- rear light

1шт.

15

R27912

HARNESS

- electrical, loader models, side light

1шт.

15

R27721

HARNESS

- electrical, dozer models, side light

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- R27912 harness, side light

2шт.

17

D42106

GROMMET

- R27912 harness, side light

1шт.

18

R27720

GUARD ASSY.

GUARD - light, side

2шт.

19

R27714

BRACKET

- light mounting, side

2шт.

20

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Side light Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Dozer models, side light Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Loader models, side light Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

22

92-8

LOCK WASHER,1/2"

side light 1/2"

6шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, side light

4шт.

24

92-8

LOCK WASHER,1/2"

side light 1/2"

2шт.

25

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, side light

2шт.

26

L45149

HEADLIGHT

LIGHT - side, 24 volt, parts list below, side light

2шт.

L45149

HEADLIGHT

LIGHT - 24 volt, assembly, Includes: Refs. 27 - 34

1шт.

27

NSS

NOT SOLD SEPARAT

BODY AND WIRE - L45149 light assembly

1шт.

28

A40033

ELECTRICAL WIRE

WIRE - light to insulator, L45149 assembly

1шт.

29

10927

SPRING

- retainer, L45149 light assembly

1шт.

30

B50293

TERMINAL CONNECTOR

- light connection, L45149 assembly

1шт.

31

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- round head machine, no. 8 - 32 NC x 1/4", L45149 light assembly

2шт.

32

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , L45149 Light assembly Int Tooth, #8

2шт.

33

L10499

LAMP

LIGHT - sealed beam, 24 volt, L45149 light assembly

1шт.

34

D31441

RETAINER

- light to body, L45149 assembly

1шт.
