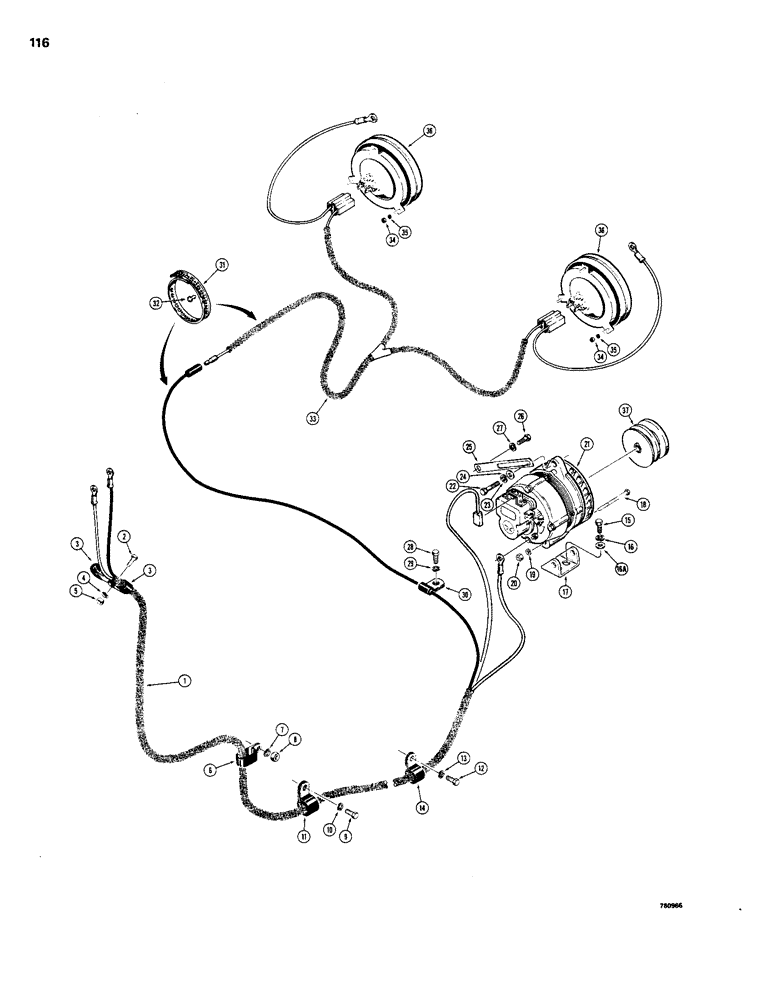

Запчасти Case 1150B (116) - FRONT ELECT. WIRING, INSTRUMENT PANEL TO ALTERNATOR, ENG. & HEADLIGHTS USED ON TRAC SN7306659 & AFT (06) - ELECTRICAL SYSTEMS

1

R40104

HARNESS

- front, electrical

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

3

49845

CLAMP

- harness

2шт.

4

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

6

D47783

CLAMP

- harness

1шт.

7

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

11

D40471

CLAMP

- harness

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

14

49845

CLAMP

- harness

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

16a

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

17

A160391

BRACKET

- alternator mounting (Replaced A160301)

1шт.

18

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

19

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

21

R36588

ALTERNATOR

- 16 amp, 24V, Motorola #70D44966EO, parts list, Fig. 88

1шт.

21

R36587

ALTERNATOR

- 42 amp, 24V, parts list, Fig. 92

1шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

23

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

24

295-21

WASHER - flat, 5/16"

1шт.

25

R40121

STRAP

- alternator adjusting

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

28

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

1шт.

29

92-7

LOCK WASHER,7/16"

1шт.

30

49857

CLAMP

- wire

1шт.

31

D41077

STRAP

- wire retaining

2шт.

32

D41075

STUD

- strap

2шт.

33

D35912

ELECTRICAL WIRE

WIRE - electrical, headlight

1шт.

34

129-17

NUT,Hex, #10 - 24

NUT - hex, #10 -24 NC

6шт.

35

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

36

D41701

LAMP

LIGHT - head, parts list Fig. 118

2шт.

37

REF

INSTRUCTION

PULLEY - Figs. 91 & 95

1шт.
