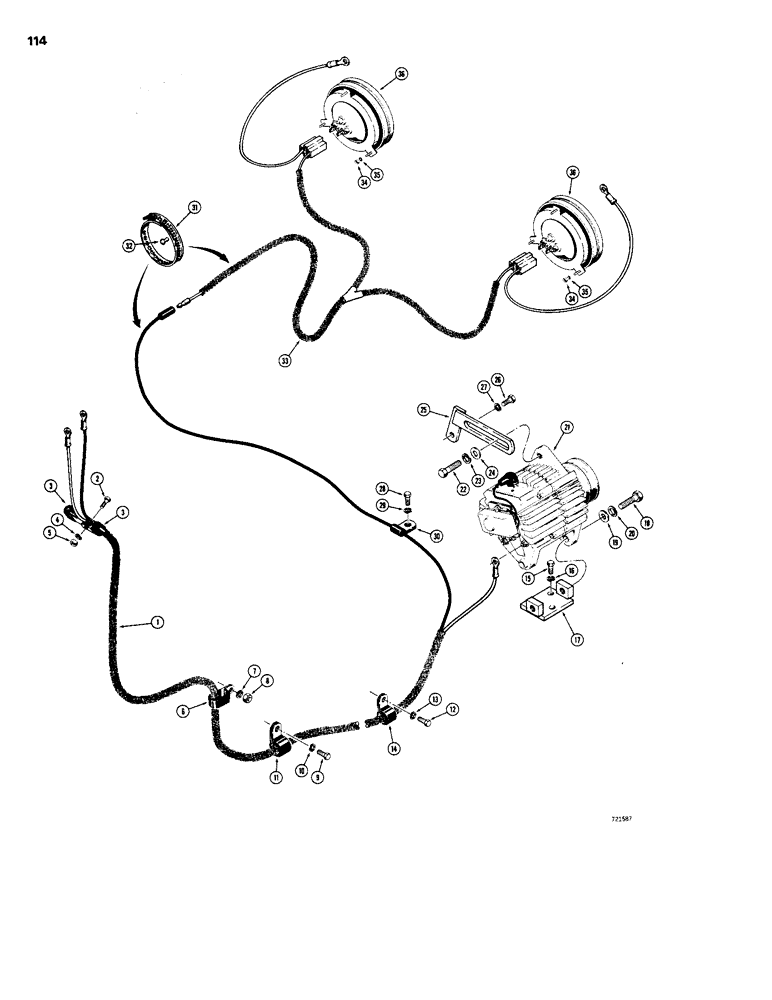

Запчасти Case 1150B (114) - FRONT ELECT. WIRING, INSTRUMENT PANEL TO ALTERNATOR, ENG. & HEADLIGHTS USED BEFORE TRAC. SN 7306659 (06) - ELECTRICAL SYSTEMS

1

R26856

HARNESS

- front, electrical

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

3

49845

CLAMP

- harness

2шт.

4

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

6

D47783

CLAMP

- harness

1шт.

7

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

11

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- harness, dozer models

1шт.

11

49838

CLAMP

- harness, loader models

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

14

49851

SHIELD

- harness

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

17

R27258

BRACKET

- alternator mounting

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

95-8

WASHER,1/2"

flat 1/2"

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

R27267

ALTERNATOR - 24 volt, Preslotite no. ANB 7002, parts list Fig. 84, production only

1шт.

21

A44440

ALTERNATOR

- 24 volt, Prestolite no. ANB 6002, parts list Fig. 84, order A44794

1шт.

21

R34730

ALTERNATOR - 24 volt, Prestolite no. ANB 7003, parts list Fig. 80, production only

1шт.

21

A44794

ALTERNATOR

- 24 volt, Prestolite no. ANB 6004, parts list Fig. 80

1шт.

22

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

23

92-8

LOCK WASHER,1/2"

1шт.

24

D26752

WASHER

- special

1шт.

25

R27263

STRAP

- alternator adjusting

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 7/16" - 14 NC x 3/4"

1шт.

27

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

28

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

1шт.

29

92-7

LOCK WASHER,7/16"

1шт.

30

NLS

NO LONGER SERVICED

- wire

1шт.

31

D41077

STRAP

- wire retaining

2шт.

32

D41075

STUD

- strap

2шт.

33

D35912

ELECTRICAL WIRE

WIRE - electrical, headlight

1шт.

34

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC

6шт.

35

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

36

D41701

LAMP

LIGHT - head, parts list Fig. 118

2шт.
