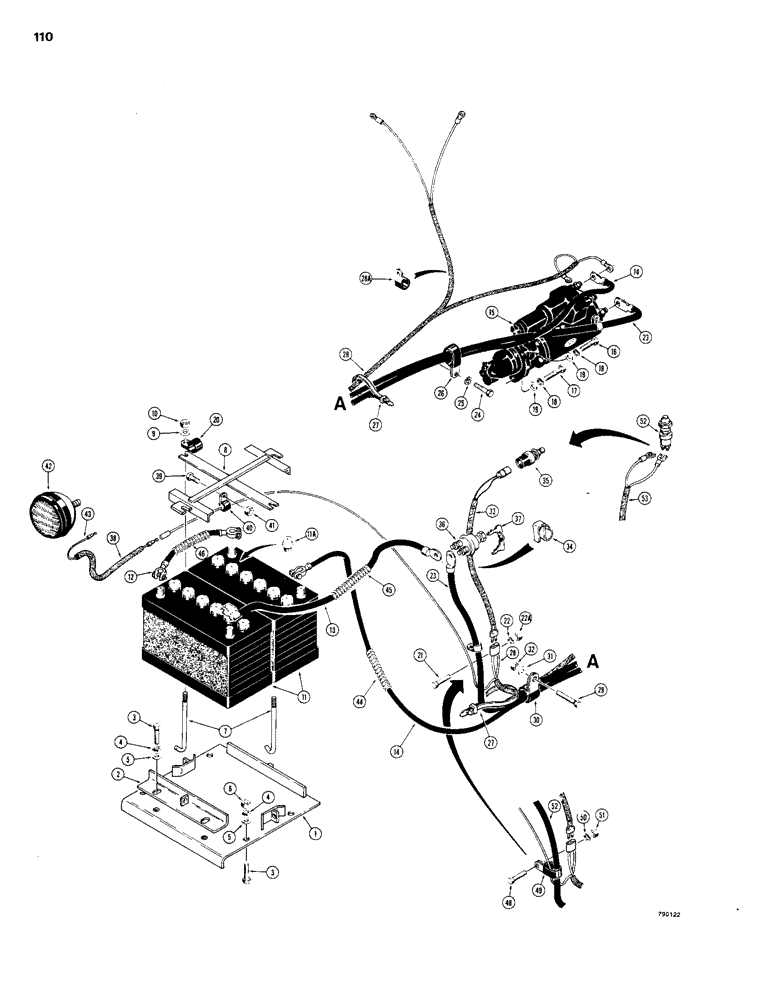

Запчасти Case 1150B (110) - REAR ELECTRICAL WIRING, INSTRUMENT PANEL TO STARTER, BATTERY & REAR LIGHT (06) - ELECTRICAL SYSTEMS

1

R27661

PLATE - battery support

1шт.

2

R27660

BRACKET

ANGLE - battery retaining

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

4

92-8

LOCK WASHER,1/2"

6шт.

5

195-33

WASHER,1/2"

- flat, 1/2"

6шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" x 13 NC

2шт.

7

R27652

ROD

- battery holddown

4шт.

8

R27662

BRACKET

HOLDDOWN - battery

1шт.

9

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

10

131-351

LOCK NUT,5/16"-18, GA

NUT - hex self lock, 5/16" - 18 NC

5шт.

11

A38411

DRY BATTERY

- 12 volt, service replacement

1шт.

When replacing battery, use the 6 nonspill caps from existing battery or order 6 new nonspill caps.

1шт.

11a

A60553

CAP

- battery, nonspill

6шт.

12

R27210

CABLE

- battery jumper

1шт.

13

R26953

CABLE

- battery neg.

1шт.

14

R40473

CABLE

- battery, pos.

1шт.

15

R26137

STARTER MOTOR

STARTER - 24 volt, Delco Remy no. 1113998, parts list Fig. 96

1шт.

15

R37343

X

STARTER - 24 volt, Prestolite #MES-6406-L, parts list Fig. 100

1шт.

16

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

1шт.

17

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

18

92-8

LOCK WASHER,1/2"

3шт.

19

R24323

WASHER

- hardened

3шт.

20

D20302

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

22a

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

23

R40474

CABLE

- ground starter to master switch, has frame ground

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

HHCS - 5/16" - 13 NC x 1-1/4"

2шт.

25

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

26

D40471

CLAMP

- tractor sn 7306659 and after

2шт.

27

L18331

CABLE TIE,375.9mm L, Nylon

STRAP - plastic

1шт.

28

R26855

HARNESS

- rear light and starter

1шт.

28a

49838

CLAMP

- hose

1шт.

29

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

30

D34163

CLAMP

- hose

1шт.

31

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

1шт.

32

25-1010

NUT,5/8"-11, G5

1шт.

33

R40985

ELECTRICAL WIRE

WIRE - R40432 switch

1шт.

34

F43611

CLIP

- wire

1шт.

35

R40432

SWITCH

- push button start

1шт.

36

R25784

SWITCH

AND KEY - master disconnect, Includes: Ref. 37

1шт.

37

D36822

KEY

- switch, set of two

1шт.

38

D42919

LOOM

- tail light wire

1шт.

39

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

1шт.

40

49857

CLAMP

- wire

1шт.

41

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

42

L45149

HEADLIGHT

LIGHT - rear, parts list Fig. 118

1шт.

43

A14733

ELECTRICAL WIRE

WIRE

1шт.

44

R40573

LOOM

GUARD - plastic

2шт.

45

R40572

CONDUIT

GUARD - plastic

2шт.

46

R40777

CONDUIT

GUARD - plastic

1шт.

47

D43390

CABLE

- ground, used before tractor sn 7306659

1шт.

48

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

49

D49498

CLAMP

- used before tractor sn 7306659

2шт.

50

92-8

LOCK WASHER,1/2"

2шт.

51

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

52

D34924

SWITCH

- uses spade connectors, use R40432 switch and R40985 wire

1шт.

53

R27209

ELECTRICAL WIRE

WIRE - D34924 switch

1шт.
