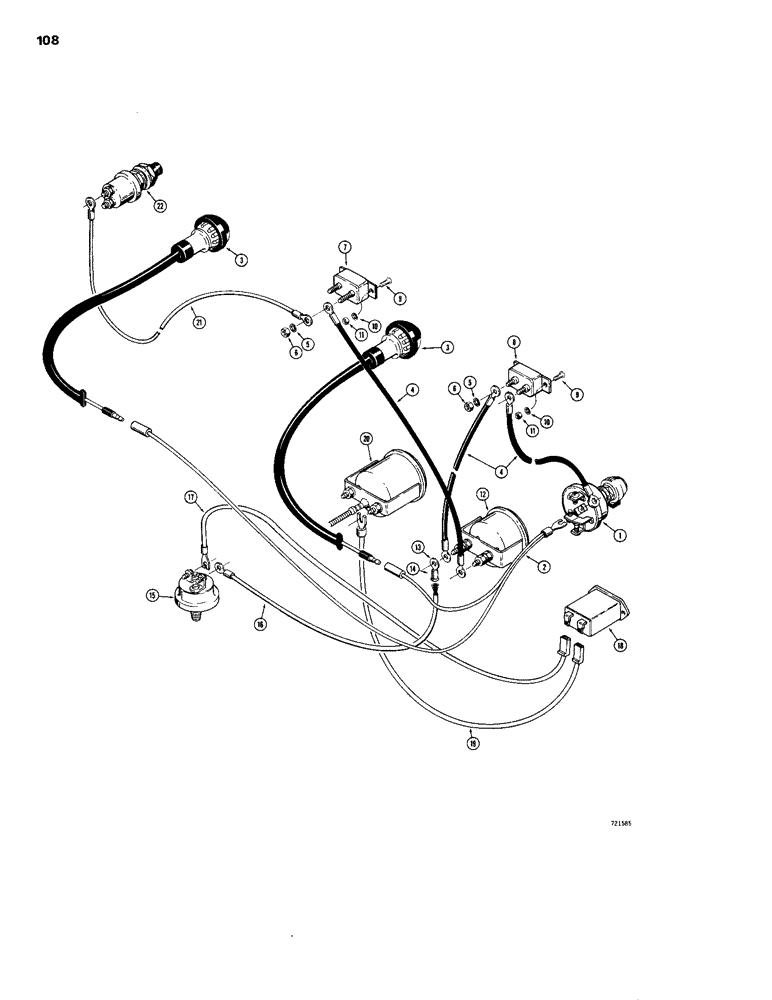

Запчасти Case 1150B (108) - INSTRUMENT PANEL WIRING (06) - ELECTRICAL SYSTEMS

1

R27539

SWITCH

- light

1шт.

2

R27208

HARNESS

- panel lights

1шт.

3

L43830

HEADLIGHT

LIGHTS - instruments, parts list Fig. 106

2шт.

4

51200220

ELECTRICAL WIRE

WASHER - lock 1/2"

3шт.

5

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

4шт.

6

129-37

NUT,#10-32

4шт.

7

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amp

1шт.

8

L11342

BREAKER

CIRCUIT BREAKER - 25 amp

1шт.

9

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

RHMS - # 8 - 32 NC x 3/8", plated

4шт.

10

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

11

129-16

NUT,#8-32

4шт.

12

R38643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

13

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - electrical

1шт.

14

223-93

TERMINAL CONNECTOR,Female, 14 - 16

SLEEVE - insulating

1шт.

15

D28798

SWITCH

- pressure, Includes: Ref. 16

1шт.

16

D28797

ELECTRICAL WIRE

WIRE - switch

1шт.

17

R27252

HARNESS

WIRE - jumper

1шт.

18

L49907

GAUGE

METER - hour, engine

1шт.

19

D39285

ELECTRICAL WIRE

WIRE - jumper

1шт.

20

R38644

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

21

F21342

ELECTRICAL WIRE

WIRE - circuit breaker to preheater or ether injection switch

1шт.

22

D34924

SWITCH

- push button, preheater or ether injection

1шт.
