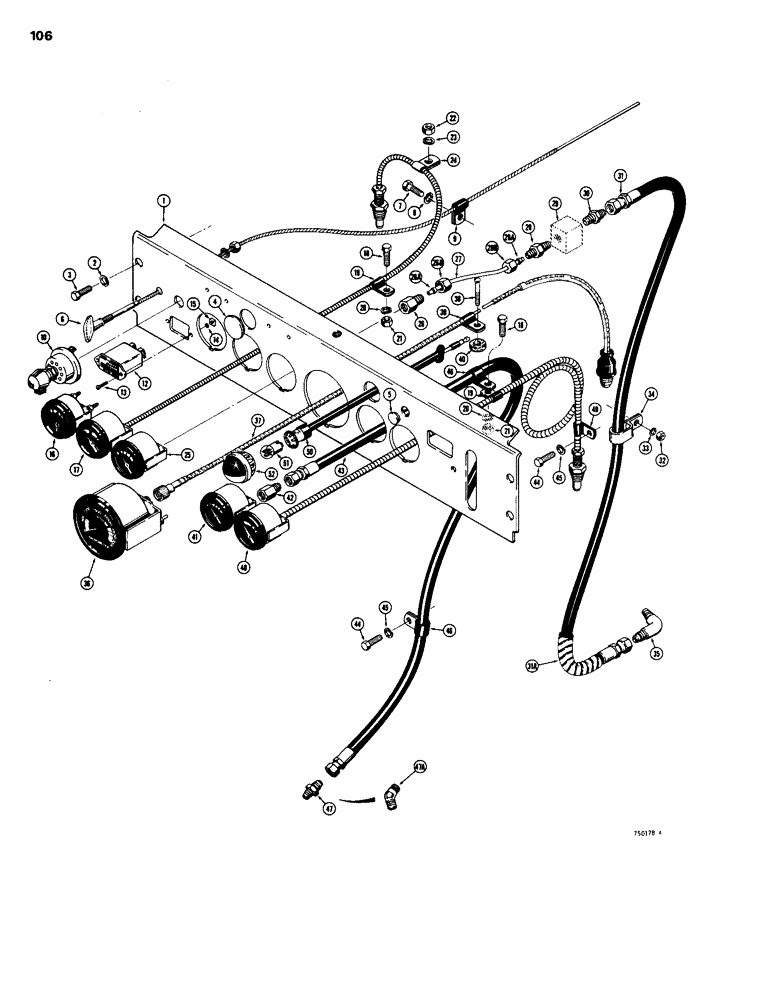

Запчасти Case 1150B (106) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

1

R27128

PANEL - instrument

1шт.

2

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

3

113-279

BOLT

HHCS - 3/8" - 16 NC x 3/4", plated

4шт.

4

353-407

PLUG,Dome, .687" hole, Nylon

- button, if used

2шт.

5

353-407

PLUG,Dome, .687" hole, Nylon

- button, if used

2шт.

6

R27120

CONTROL

- engine shut off

2шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

9

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- cable

1шт.

10

R27539

SWITCH

- light

1шт.

12

L49907

GAUGE

METER - hour

1шт.

13

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- machine, fillister head, no. 5-40 NC x 1/2"

2шт.

14

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

2шт.

15

129-44

SQUARE NUT,Sq, #5-40

2шт.

16

R38643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

17

R42267

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- tube and cable

2шт.

20

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

22

25-107

NUT,7/16"-14, G5

- hex, 7/16" -14 NC

1шт.

23

195-29

WASHER,7/16"

- flat, 7/16"

1шт.

24

51200330

CLAMP

- cable

1шт.

25

R38647

ELECTRICAL GAUGE

GAUGE - engine oil pressure

1шт.

D35091

PIPE FITTING

FITTING - compression, male female, Includes: Refs. 28 - 28B

1шт.

26

NSS

NOT SOLD SEPARAT

BODY

1шт.

26a

D37176

SLEEVE

RING - compression

1шт.

26b

D37362

TUBE NUT

- compression

1шт.

27

R37216

TUBE,152.4 mm L

- nylon

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

FITTING - compression, male

1шт.

28

NSS

NOT SOLD SEPARAT

BODY

1шт.

28a

D37176

SLEEVE

RING - compression

1шт.

28b

D37362

TUBE NUT

- compression

1шт.

29

NSS

NOT SOLD SEPARAT

TEE -, Serial Range: welded-frame

1шт.

30

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - male, straight

1шт.

31

D95116

HOSE

- engine to oil pressure gauge, 44" (1118 mm)

1шт.

31a

R12586

TAPE

WRAP - D95116 hose

1шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

33

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

34

D47783

CLAMP

- hose

1шт.

35

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - male, 90 degrees

1шт.

36

R27126

TACHOMETER

- engine R.P.M.

1шт.

37

R27130

CABLE

- tachometer

1шт.

38

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- machine, round head, 1/4" - 20 NC x 2-1/4"

1шт.

39

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- cable

1шт.

40

A34133

GASKET

- breather tube

1шт.

41

R38646

GAUGE

- transmission oil pressure

1шт.

42

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

FITTING - straight, female

1шт.

43

R35323

HOSE

- 100" (2540 mm)

1шт.

43

D95117

HOSE

- 57" (1448 mm)

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

45

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

46

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- hose

2шт.

47

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - straight, D95117 hose

1шт.

47a

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

FITTING - 45 degrees, R35323 hose

1шт.

48

R38645

GAUGE

- converter temperature

1шт.

49

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- cable

1шт.

L43830

HEADLIGHT

LIGHT - dash, Includes: Refs. 50 - 52

2шт.

50

NSS

NOT SOLD SEPARAT

BODY

1шт.

51

T39535

BULB

- no. 1251

1шт.

52

L30467

LENS

1шт.
