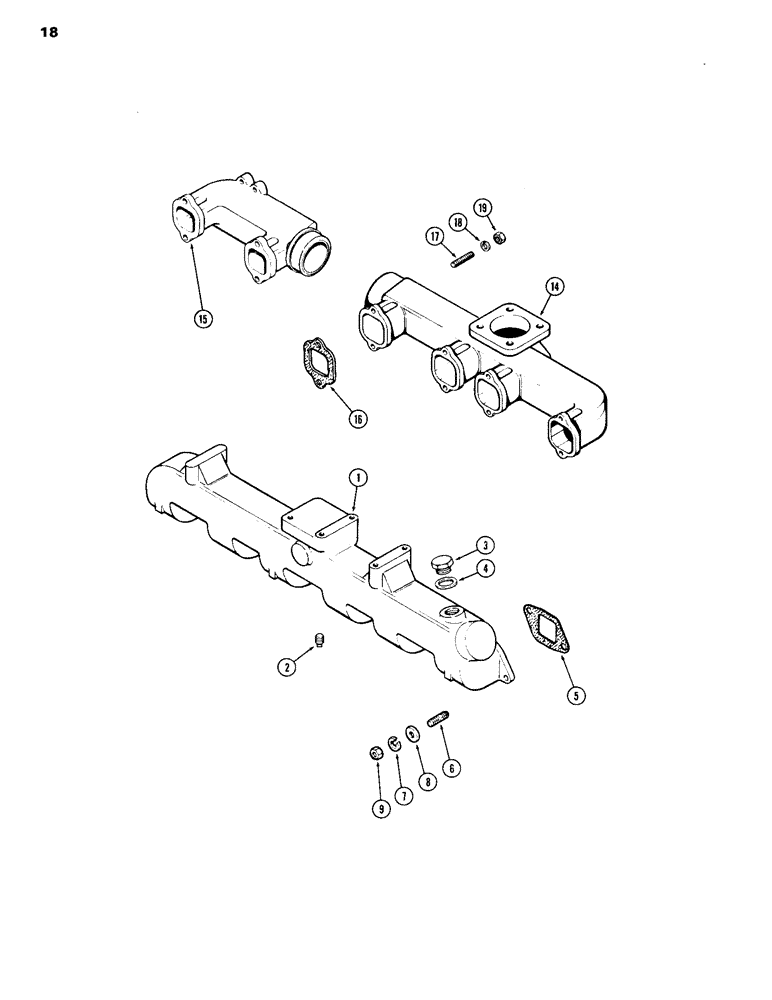

Запчасти Case 1150B (018) - MANIFOLDS, (451BD) DIESEL ENGINE, FOR NATURALLY ASPIRATED ENG. INTAKE MANIFOLD (01) - ENGINE

A66099

MANIFOLD

ASSEMBLY - intake (Replaces A62844), Includes: Refs. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

2

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT, square head

1шт.

3

L10283

PLUG

- heater hole

1шт.

4

A20916

MANIFOLD GASKET

GASKET - heater hole plug

1шт.

5

A58662

MANIFOLD GASKET

- intake manifold

6шт.

6

A59077

STUD

- intake manifold, 3/8" NC x 1-13/16"

12шт.

7

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

12шт.

8

195-25

WASHER,3/8"

- x 13/16 x 1/16" 3/8"

12шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

12шт.

14

A64966

MANIFOLD

- exhaust, front

1шт.

15

A58664

MANIFOLD

- exhaust, rear

1шт.

16

A58666

MANIFOLD GASKET

- exhaust manifold

6шт.

17

A59077

STUD

- exhaust manifold, 3/8" NC x 1-13/16"

12шт.

18

92-6

LOCK WASHER,3/8"

WASHER - lock, , exhaust manifold 3/8"

12шт.

19

131-903

NUT,3/8"-16

NUT - 3/8" NC hex Seez-Pruf, exhaust manifold

12шт.
