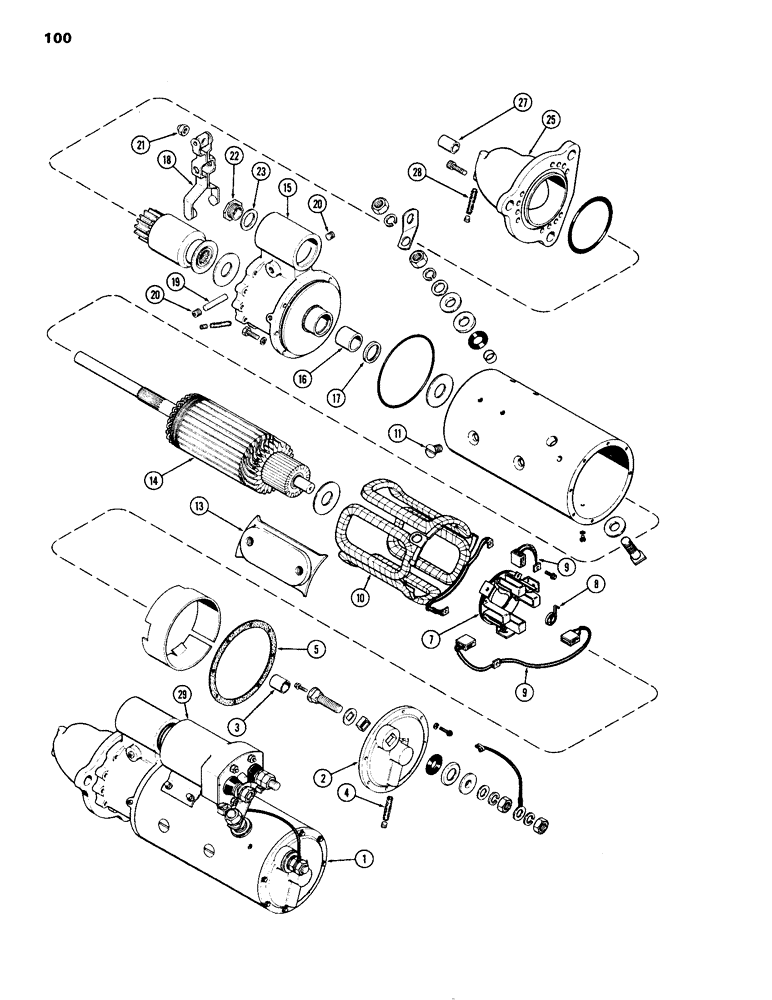

Запчасти Case 1150B (100) - R37343 STARTER, PRESTOLITE NO. MES64066 (06) - ELECTRICAL SYSTEMS

1

R37343

X

STARTER ASSEMBLY - (Prestolite #MES64066), Includes: Refs. 2 - 66

1шт.

2

A45647

HEAD

ASSEMBLY - commutator end, Includes: P/N A45659 and Refs. 3 & 4

1шт.

A45659

KIT

PACKAGE - bearing and wick

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

5

A45640

GASKET

- head (Package of 5)

1шт.

7

A45650

PLATE

ASSEMBLY - brush holder, Includes: Ref. 8

1шт.

8

A45637

SPRING

SET - brush (Set of 8)

1шт.

9

A45652

BRUSH, COMMUTATOR

BRUSH SET

1шт.

10

A45648

COIL

ASSEMBLY - field, Includes: Refs. 10 & 11

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

8шт.

NSS

NOT SOLD SEPARAT

GASKET - pole shoe screws (not used this application)

8шт.

13

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

14

A45654

ARMATURE

1шт.

15

A45655

HOUSING

ASSEMBLY - intermediate, Includes: Refs. 16 & 17

1шт.

16

A25672

BEARING

- 7/8 x 1 x 1" (22.23 x 25.4 x 25.4 mm)

1шт.

17

A45649

SEAL

- oil, 7/8 x 1-1/4 x 3/16" (22.23 x 31.75 x 4.76 mm)

1шт.

18

A45084

YOKE

- shifter

1шт.

A45661

PACKAGE

- yoke attaching parts, Includes: Refs. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

PIN - yoke pivot

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - yoke pin

2шт.

21

NSS

NOT SOLD SEPARAT

NUT - yoke stop (5/16"-24 hex)

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - housing

1шт.

23

A45639

GASKET

- plug (Package of 10)

1шт.

24

A45636

PISTON

DRIVE ASSEMBLY, Includes: P/N A45658 and Refs. 27 & 28

1шт.

25

A45651

HOUSING

ASSEMBLY - drive end

1шт.

A45658

PACKING

PACKAGE - bearing and wick

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - armature shaft

1шт.

28

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

29

A45656

SOLENOID

ASSEMBLY - (Fig. 105A)

1шт.

R37343

X

STARTER ASSEMBLY - (Replaced 37343)

1шт.

A45662

KIT

PACKAGE - mounting bolts

1шт.

34

NSS

NOT SOLD SEPARAT

BOLT - commutator cover to frame, #10-32 x 3/4" hex head

7шт.

35

NSS

NOT SOLD SEPARAT

BOLT - drive housing to intermediate housing, 1/4-28 x 7/8" socket head

6шт.

36

NSS

NOT SOLD SEPARAT

BOLT - intermediate housing to frame, 1/4-28 x 1" hex head

7шт.

37

A45641

INSULATOR

INSULATION - field (Package of 10)

1шт.

A45657

KIT

PACKAGE - thrust washers

1шт.

39

NSS

NOT SOLD SEPARAT

WASHER - intermediate housing, 1/8" thick (3.18 mm)

1шт.

39

NSS

NOT SOLD SEPARAT

WASHER - intermediate housing, 1/32" thick (0.79 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - drive housing, 3/32" thick (2.38 mm)

1шт.

42

NSS

NOT SOLD SEPARAT

WASHER - commutator end, 1/32" thick (0.79 mm)

4шт.

42

NSS

NOT SOLD SEPARAT

WASHER - commutator end, 3/64" thick (1.19 mm)

2шт.

A45660

KIT

PACKAGE - field terminal stud, Includes: Refs. 46 - 52

1шт.

46

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

47

NSS

NOT SOLD SEPARAT

WASHER - insulation, inner

1шт.

48

NSS

NOT SOLD SEPARAT

WASHER - insulation, inner

1шт.

NSS

NOT SOLD SEPARAT

WASHER - insulation (in frame)

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER - insulation, outer

1шт.

51

NSS

NOT SOLD SEPARAT

WASHER - steel, outer

1шт.

52

NSS

NOT SOLD SEPARAT

WASHER - cap

1шт.

53

A45643

ASSEMBLY

LEAD - solenoid to commutator end terminal stud

1шт.

54

A45642

CONNECTION

CONNECTOR - solenoid to field terminal

1шт.

A45663

KIT

PACKAGE - commutator end terminal stud, Includes: Refs. 55 - 62

1шт.

55

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

56

NSS

NOT SOLD SEPARAT

WASHER - insulation, inner (Neoprene)

1шт.

57

NSS

NOT SOLD SEPARAT

WASHER - insulation, inner

1шт.

58

NSS

NOT SOLD SEPARAT

BUSHING - insulation, (in end frame)

1шт.

59

NSS

NOT SOLD SEPARAT

WASHER - insulation, outer (bakelite)

1шт.

60

NSS

NOT SOLD SEPARAT

WASHER - steel, outer

1шт.

61

NSS

NOT SOLD SEPARAT

WASHER - 1/2" lock

2шт.

62

NSS

NOT SOLD SEPARAT

NUT - terminal stud, 1/2"-13 hex

2шт.

63

A45638

PLUG

- (Neoprene) (Package of 6)

1шт.

64

A45646

SNAP RING

O-RING - 3/16 x 5/16 x 1/16" (4.76 x 7.94 x 1.59 mm) (Package of 10)

1шт.

65

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- 4-1/8 x 4-3/8 x 1/8" (104.78 x 111.13 x 3.18 mm)

1шт.

66

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- 3-1/4 x 3-1/2 x 1/8" (82.55 x 88.9 x 3.18 mm)

1шт.
