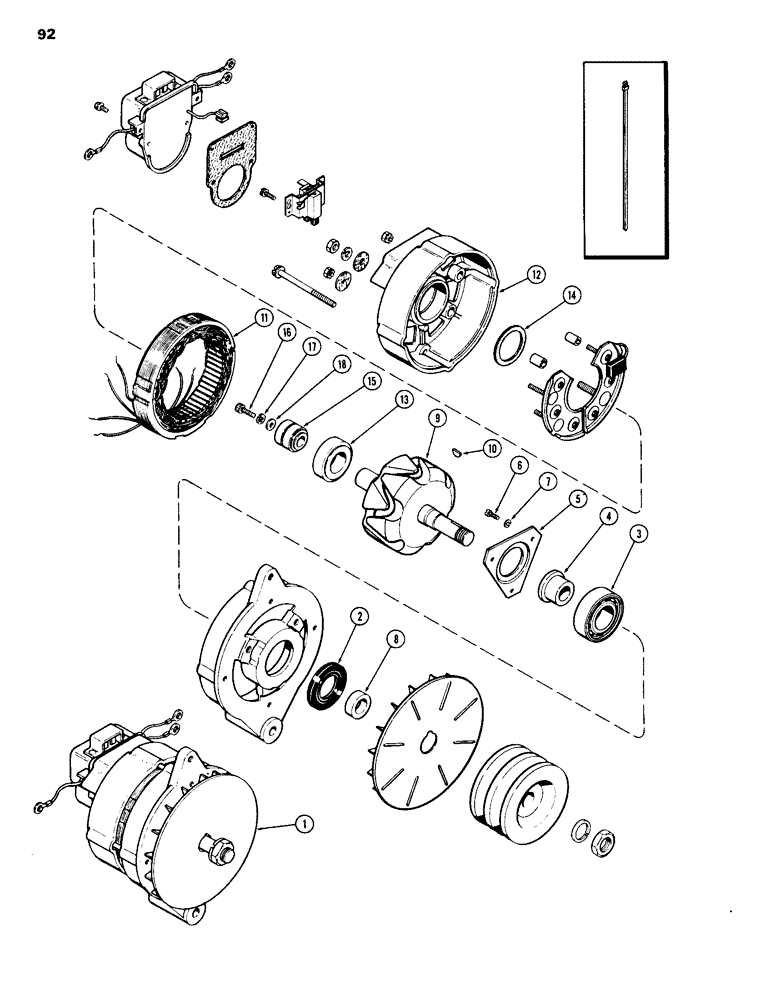

Запчасти Case 1150B (092) - R36587 ALTERNATOR, MOTOROLA NO. 8HC3017G (06) - ELECTRICAL SYSTEMS

R36587

ALTERNATOR

ASSEMBLY - (Production only) (Motorola #8HC3017G) (Order 1-A47090 alternator, 1-A41361 pulley, 1-A47167 regulator, 1-A47159 regulator gasket, 2 of 187-1089 and 2 of 182-519 regulator mounting screws)

1шт.

R36587 Alternator is 42 Amp

1шт.

1

A47090

ALTERNATOR

ASSEMBLY - (Service only) (Motorola #HC3017GS) (without pulley, regulator, regulator gasket and mounting screws), Includes: Refs. 2 - 38

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A47157

HOUSING

- front

1шт.

3

A47163

BALL BEARING,0.983" ID x 2.0467" OD x 0.596"

BEARING - front housing, 1 x 2 x 9/16" (25.4 x 50.8 x 14.29 mm)

1шт.

4

A41052

SLEEVE

- bearing pilot

1шт.

5

A43280

RETAINER

- front bearing

1шт.

6

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

- front retainer, #8-32 x 3/8" slotted head

3шт.

7

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

8

A47160

SEAL

- oil, grease reservoir, 1 x 1-7/8 x 5/16" (25.4 x 47.63 x 9.74 mm)

1шт.

9

A47166

IMPELLER

ROTOR ASSEMBLY

1шт.

10

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley #5, 1/8" x 5/8", HT

1шт.

11

A47155

STATOR

ASSEMBLY

1шт.

12

A47158

HOUSING

- rear

1шт.

13

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - rear housing, 11/16 x 1-9/16 x 1/2" (17.46 x 39.69 x 12.7 mm)

1шт.

14

A47170

RETAINER

- rear bearing, 1-9/16 x 1-13/16 x 1/8" (39.69 x 45.04 x 3.18 mm)

1шт.

15

A44581

RING

- slip (Order A44580)

1шт.

16

163-4

SCREW,Hex, #10 - 32 x 5/8"

- slip ring, #10 x 5/8", 12 point socket head

1шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

18

A44788

WASHER

- slip ring bearing screw

1шт.

A47090

ALTERNATOR

ASSEMBLY

1шт.

22

A47165

DIODE

RECTIFIER ASSEMBLY - negative, with diodes and studs, Serial Range: (anode-plate)

1шт.

23

A47164

DIODE

RECTIFIER ASSEMBLY - positive, with diodes and studs, Serial Range: (cathode-plate)

1шт.

24

A45253

DIODE ELEMENT

DIODE ASSEMBLY - trio

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

129-17

NUT,Hex, #10 - 24

NUT - #10 NC hex

3шт.

26

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

27

A45254

SPACER

- trio diode

1шт.

28

A44771

SLEEVE CYLINDER

SLEEVE - insulator, 1/4 x 5/16 x 1/2" (6.35 x 7.94 x 12.7 mm)

1шт.

28

A47156

SLEEVE CYLINDER

SLEEVE - insulator, 3/16 x 1/4 x 3/8" (4.76 x 6.35 x 9.53 mm)

1шт.

29

A45053

WASHER

- insulating, 1/4 x 3/4" x 1/16" (6.35 x 19.05 x 1.59 mm)

2шт.

29

A41038

WASHER

- insulating, 3/16 x 3/4 x 1/16" (4.76 x 19.05 x 1.59 mm)

2шт.

30

A41060

LOCK NUT

NUT - #10-24 hex with external shakeproof washer

3шт.

31

A45030

BOLT

- thru, #10 NF x 4"

4шт.

32

A41048

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - with holder

1шт.

33

A44780

SCREW

- brush holder to rear housing

2шт.

34

A42431

FAN

- ventilating

1шт.

35

A47162

SPACER

- fan

1шт.

36

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Pulley 5/8"

1шт.

37

A41035

NUT

- pulley retaining

1шт.

38

T54520

STRAP

WRAP - wire locking (Nylon tie)

2шт.

42

A41361

PULLEY

1шт.

43

A47167

REGULATOR

ASSEMBLY - voltage

1шт.

44

A47159

GASKET

- regulator to rear housing

1шт.

45

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

- regulator mounting (#8-32 x 1/2" self-tapping)

2шт.

45

187-1089

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

SCREW - regulator mounting (#8-32 x 3/4" slotted hex washer head)

2шт.
