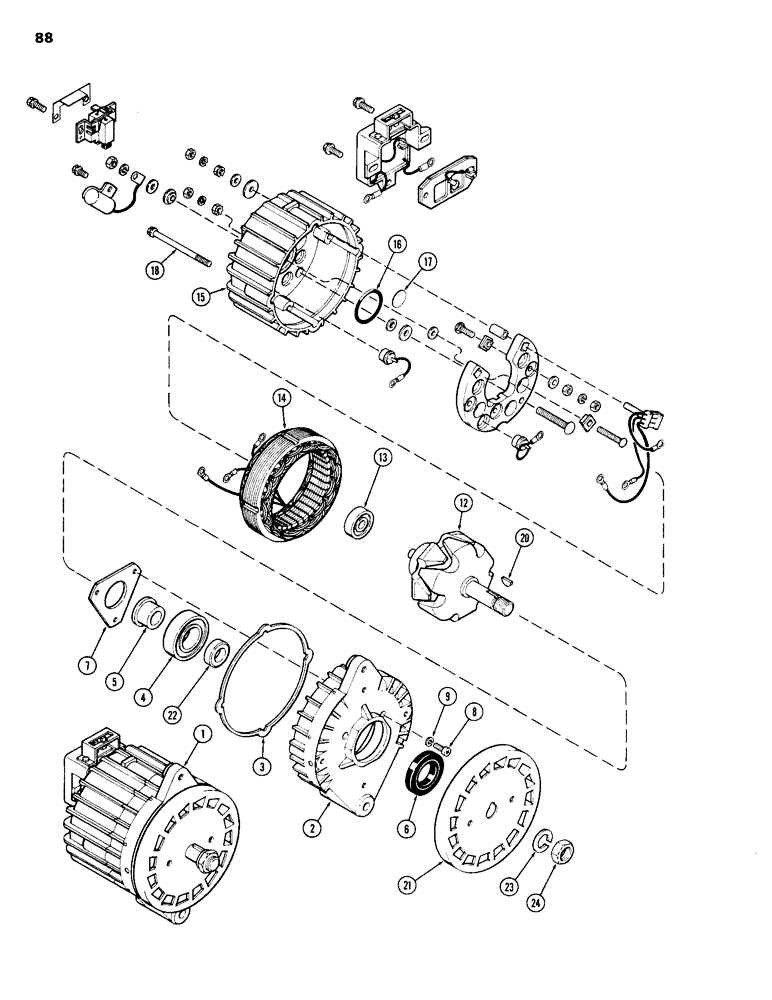

Запчасти Case 1150B (088) - R36588 ALTERNATOR, MOTOROLA NO. 70D44966E01 (06) - ELECTRICAL SYSTEMS

R36588

ALTERNATOR

ASSEMBLY, 16 AMP, (Motorola #70D44966E01) (Production only) (Order 1-A47263 alternator, 1-A47275 voltage regulator and 1 each of 187-576 and 187-1090 screws)

1шт.

1

A47263

ALTERNATOR

ASSEMBLY - (Motorola #8TA3052C) (Service only) (Without voltage regulator), Includes: Refs. 2 - 57

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A47266

HOUSING

- front

1шт.

3

A43439

GASKET

- front housing to rear housing

1шт.

4

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - front housing, 1 x 2 x 5/8" (25.4 x 50.8 x 15.88 mm)

1шт.

5

A41052

SLEEVE

- pilot, rotor shaft

1шт.

6

A47160

SEAL

- front bearing

1шт.

7

A43280

RETAINER

- front bearing

1шт.

8

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

- retainer, #8 x 1/2" self-tapping

3шт.

9

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

12

A47267

ROTOR

ASSEMBLY

1шт.

13

A44427

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - rear, 3/8 x 1-3/16 x 3/8" (9.53 x 30.16 x 9.53 mm)

1шт.

14

A47268

STATOR

ASSEMBLY

1шт.

15

A47269

HOUSING

- rear

1шт.

16

A47271

RETAINER

- rear bearing

1шт.

17

A43432

INSULATOR

- rear housing (Mica)

3шт.

18

A41037

BOLT

BOLT - thru, #10-32 x 3-1/8"

4шт.

20

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley #5, 1/8" x 5/8", HT

1шт.

21

A47270

FAN

- ventilating

1шт.

22

A47162

SPACER

- fan

1шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

A41035

NUT

- pulley retaining, 5/8" - 18 hex

1шт.

A47263

ALTERNATOR

ASSEMBLY

1шт.

26

A43445

HEAD

HEAT SINK - positive diodes

1шт.

27

A43425

DIODE

- positive (in heat sink)

3шт.

28

A43424

DIODE

- negative (in rear housing)

3шт.

29

A47277

DIODE ELEMENT

DIODE - field

1шт.

32

111-138

BOLT,1/4"-28 x 1 3/4", G2, Ribbed Neck

- 1/4-28 x 1-3/4" carriage

1шт.

33

A43433

INSULATOR

- 1/4" ID x 5/8" OD (6.35 x 15.88 mm)

1шт.

34

A43428

INSULATOR

- 1/4" ID x 1/2" OD (6.35 x 12.7 mm)

2шт.

35

A47276

SPACER

- capacitor

1шт.

36

A47273

CAPACITOR

1шт.

37

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - capacitor, #10-24 x 5/8" self-tapping

1шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

39

129-121

NUT,1/4"-28, G5

1шт.

42

111-322

BOLT - #10-24 x 1-3/8" carriage

1шт.

43

111-2

CARRIAGE BOLT,Short NK, 3/16"-24 x 3/4", G2

BOLT, CARRIAGE, Short NK, 3/16"-24 x 3/4", G2

3шт.

44

A41041

INSULATOR

- (square type)

4шт.

45

A41040

INSULATOR

SLEEVE - insulator (for field diode)

1шт.

46

A43292

WASHER

INSULATOR - #10 x 1/2" OD (12.7 mm)

3шт.

47

A41038

WASHER

INSULATOR - #10 x 3/4" OD (19.05 mm)

1шт.

48

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

49

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

10шт.

52

A47272

BRUSH

AND HOLDER ASSEMBLY

1шт.

53

A43434

INSULATOR

- brush holder

1шт.

54

A47265

COVER

- brush holder

1шт.

55

A43440

GASKET

- brush cover

1шт.

56

A47274

CABLE

WIRE - connector

1шт.

57

187-480

SCREW,Hex Hd, #8 x 1/2"

- #8 x 1/2" self-tapping

2шт.

60

A47275

REGULATOR

ASSEMBLY - voltage

1шт.

61

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - #10-24 x 3/8" self-tapping

1шт.

62

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - #10-24 x 5/8" self-tapping

1шт.

A41361

PULLEY

1шт.
