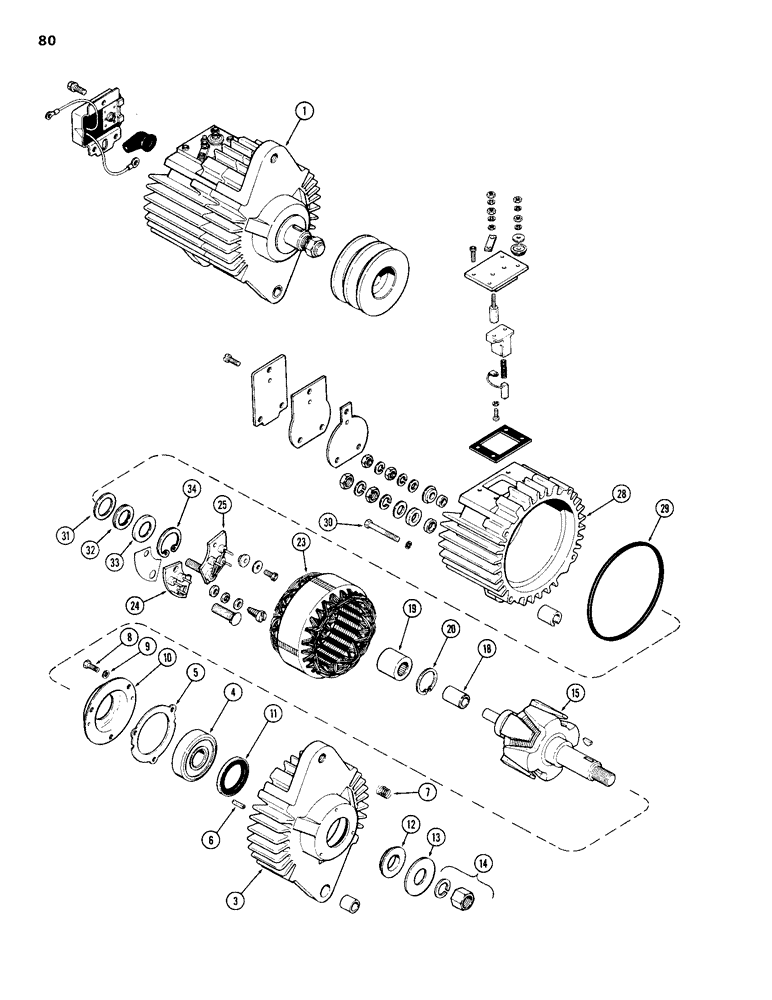

Запчасти Case 1150B (080) - R34730 ALTERNATOR, PRESTOLITE NO. ANB-7003 (06) - ELECTRICAL SYSTEMS

R34730

ALTERNATOR ASSEMBLY - (Prestolite No. ANB-7003) (Used in production only) (Order 1-A44794 alternator, 1-A45256 regulator and 1-A44442 pulley)

1шт.

1

A44794

ALTERNATOR

ASSEMBLY - (Prestolite No. ANB-6002) (Service only) (Without pulley and regulator) (Replaces A44440), Includes: Refs. 3 - 66

1шт.

A45245

HEAD (CYLINDER)

HEAD ASSEMBLY - drive end (Replaces A44452)

1шт.

3

NSS

NOT SOLD SEPARAT

HEAD - drive end

1шт.

4

A44453

BALL BEARING

BEARING - ball, 1 x 2-7/16 x 21/32" (25.4 x 61.91 x 16.67 mm)

1шт.

5

A44454

GASKET

- bearing retainer

1шт.

6

NSS

NOT SOLD SEPARAT

PIN - roll, head locating

1шт.

7

NSS

NOT SOLD SEPARAT

INSERT - thread adapter

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - bearing retainer

3шт.

9

NSS

NOT SOLD SEPARAT

WASHER - bearing retainer screws

3шт.

A44455

SEAL

PACKAGE - drive end seal and retainer, Includes: Refs. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - bearing, 1-3/8 x 1-3/4 x 3/16" (34.93 x 44.45 x 4.76 mm)

1шт.

12

NSS

NOT SOLD SEPARAT

SPACER - bearing and seal

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - spacer retainer, 7/8 x 2 x 3/64" (22.23 x 50.8 x 1.19 mm)

1шт.

14

A44457

NUT

PACKAGE - pulley nut and washer

1шт.

15

A44795

ROTOR

ASSEMBLY - with inner bearing race (Replaces A44463)

1шт.

16

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Pulley #6, 5/32" x 5/8"

1шт.

A44443

BEARING

PACKAGE - rotor bearing, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

RACE - needle bearing, inner

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - needle, outer race

1шт.

20

NSS

NOT SOLD SEPARAT

RING - snap, bearing stop

1шт.

A44458

STATOR

ASSEMBLY - with diodes, Includes: Refs. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

STATOR

1шт.

24

A44460

DIODE

ASSEMBLY - positive

1шт.

25

NLS

NO LONGER SERVICED

ASSEMBLY - negative

1шт.

28

A45246

HEAD

- slip ring end (Replaces A44456)

1шт.

29

A44451

GASKET

- sealing, 5 x 5-3/16 x 3/32" rubber (127 x 131.76 x 2.38 mm)

1шт.

A44444

SEAL ASSY.

PACKAGE - slip ring end seal and retainer, Includes: Refs. 31 - 34

1шт.

31

NSS

NOT SOLD SEPARAT

PLATE - felt seal retainer, 7/8 x 1-1/4 x 1/32" (22.23 x 31.75 x 0.79 mm)

1шт.

32

NSS

NOT SOLD SEPARAT

WIPER - seal, 3/4 x 1-3/16 x 1/8" (19.05 x 30.16 x 3.18 mm)

1шт.

33

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

34

NSS

NOT SOLD SEPARAT

RING - snap, seal retaining

1шт.

A44794

ALTERNATOR

ASSEMBLY

1шт.

A45276

STUD

PACKAGE - terminal stud (Replaces A44464),Includes: Refs. 38 - 51

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW - plate mounting, No.10-24 x 11/16" self tapping

2шт.

39

NSS

NOT SOLD SEPARAT

WASHER - plate screws, 3/16 x 9/16 x 3/64" (4.76 x 14.29 x 1.19 mm)

2шт.

40

NSS

NOT SOLD SEPARAT

INSULATOR - plate screws, 3/16 x 5/16 x 1/18" (4.76 x 7.94 x 3.18 mm)

2шт.

41

NSS

NOT SOLD SEPARAT

WASHER - insulating, 3/16 x 9/16 x 1/16" (4.76 x 14.29 x 1.59 mm)

1шт.

42

NSS

NOT SOLD SEPARAT

INSULATION - positive plate

1шт.

43

NSS

NOT SOLD SEPARAT

STUD - positive terminal, 7/16" NC x 1-1/2"

1шт.

44

NSS

NOT SOLD SEPARAT

BUSHING - positive terminal, 7/16 x 9/16 x 11/32" (11.11 x 14.29 x 8.73 mm)

1шт.

45

NSS

NOT SOLD SEPARAT

WASHER - insulating, positive terminal 7/16 x 3/4 x 1/8" (11.11 x 19.05 x 3.18 mm)

1шт.

46

NSS

NOT SOLD SEPARAT

WASHER - positive terminal, 7/16 x 3/4 x 3/64" (11.11 x 19.05 x 1.19 mm)

1шт.

47

NSS

NOT SOLD SEPARAT

WASHER - positive terminal, 7/16" lock

2шт.

48

NSS

NOT SOLD SEPARAT

BUSHING - negative terminal, 1/4 x 3/8 x 5/16" (6.35 x 9.53 x 7.94 mm)

1шт.

49

NSS

NOT SOLD SEPARAT

INSULATOR - negative terminal, 1/4" dia. hole (6.35 mm)

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER - negative terminal, 1/4 x 9/16 x 3/64" (6.35 x 14.29 x 1.19 mm)

1шт.

51

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Negative terminal 1/4"

2шт.

52

25-114

NUT,1/4"-28, G5

- negative terminal, 1/4" NF hex

2шт.

53

25-107

NUT,7/16"-14, G5

- positive terminal, 7/16" NC hex

2шт.

56

A45247

BOLT

- thru (Replaces A44465)

4шт.

58

A44445

HOLDER

ASSEMBLY - brush, Includes: Refs. 58 - 61

1шт.

59

A44447

BRUSH, COMMUTATOR

BRUSH SET - (Set of 2)

1шт.

60

A44450

SPRING

SET - brush (Set of 2)

1шт.

61

A44446

HOLDER - brushes

1шт.

62

A44449

GASKET - brush, Serial Range: holder-head

1шт.

A44461

KIT

PACKAGE - regulator mounting parts, Includes: Refs. 64 - 66

1шт.

64

A44462

GASKET - regulator

1шт.

65

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

66

NSS

NOT SOLD SEPARAT

GASKET - cover plate

1шт.

67

A45256

REGULATOR

ASSEMBLY - voltage (Replaces A44441 and A44572), Includes: Ref. 68

1шт.

68

S64612

BOOT

PROTECTOR - regulator terminals (Rubber boot)

2шт.

69

A44442

PULLEY

- alternator

1шт.
