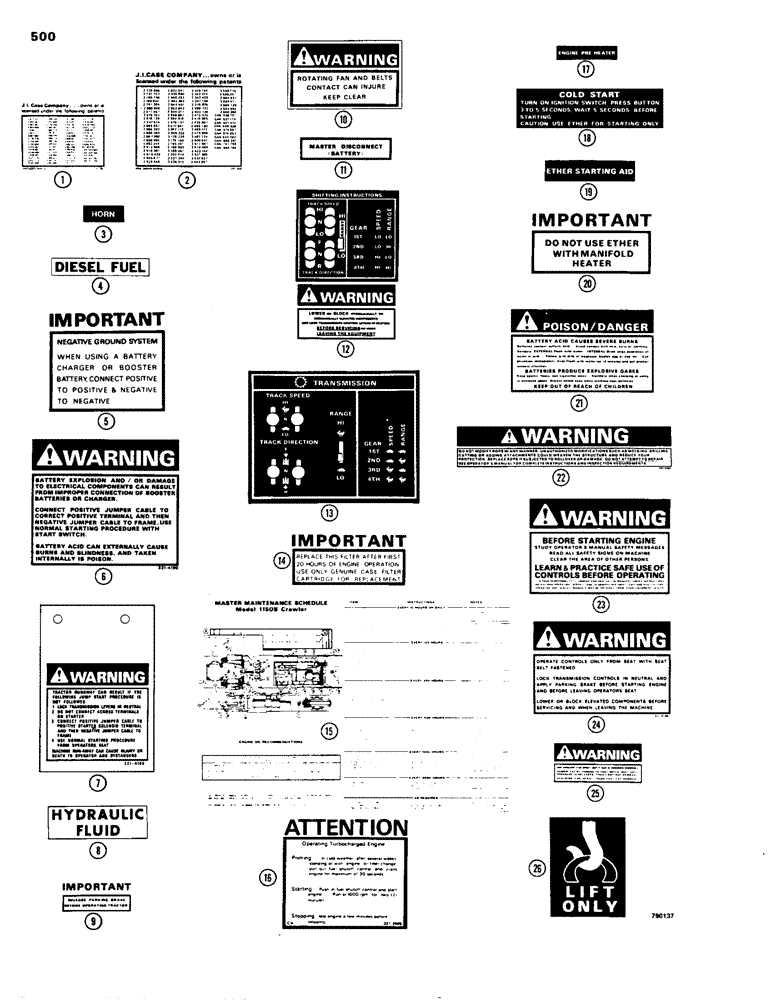

Запчасти Case 1150B (500) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

321-663

DECAL

- equipment patent

1шт.

2

321-246

DECAL

- tractor patent, no longer used

1шт.

3

321-3294

DECAL

HORN

1шт.

4

321-230

DECAL

- Diesel Fuel

1шт.

5

321-1062

DECAL

- Caution, battery, use 321-4190

1шт.

6

321-4190

DECAL

- Warning, battery

1шт.

7

321-4189

DECAL

- Warning, tractor can runaway

1шт.

8

321-229

DECAL

- Hydraulic Fluid

1шт.

9

321-2387

DECAL

- Important release parking brake, use 321-4188

1шт.

10

321-3596

DECAL

- Caution, fan

2шт.

11

321-2392

DECAL

- master disconnect

1шт.

12

321-3383

DECAL

- Warning, transmission, use 321-4178 and 321-4188

1шт.

13

321-4178

DECAL

- Transmission

1шт.

14

321-2101

DECAL

- oil filter

1шт.

15

321-4608

DECAL

- Master Maintenance Schedule

1шт.

16

321-2605

DECAL

- Operating Procedure, turbocharger

1шт.

17

321-2434

DECAL

- preheater

1шт.

18

321-1841

DECAL

- Cold Start

1шт.

19

321-2435

DECAL

- Ether Starting Aid

1шт.

20

321-2646

DECAL

- Do Not Use With Manifold Heater

1шт.

21

321-2996

DECAL

- Battery Hazard

1шт.

22

321-4192

DECAL

- Warning, ROPS modification

1шт.

23

321-3705

DECAL

- Warning, before starting engine

1шт.

24

321-4188

DECAL

- Warning, operate from seat

1шт.

25

321-3708

DECAL

- radiator, pressure

1шт.

26

321-3587

DECAL

- lift instructions

4шт.

REF

INSTRUCTION

KIT - decal, Figs. 496 & 498

1шт.
