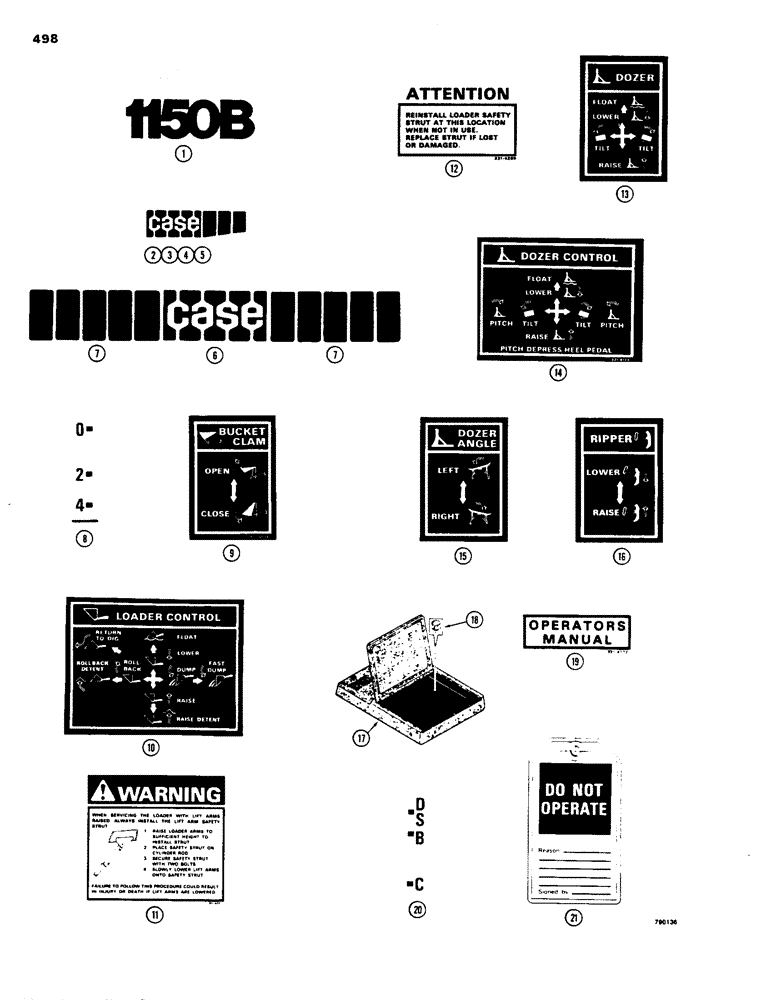

Запчасти Case 1150B (498) - DECALS, LATE PRODUCTION (05) - UPPERSTRUCTURE CHASSIS

1

321-3127

DECAL

- 1150B

2шт.

2

321-3132

DECAL

- Case, LH, dozer model

1шт.

#2 is rh, part 321-4426

1шт.

#2-#5--321-3132 is shown in picture, 321-3133 is opposite.

1шт.

3

321-3133

DECAL

- Case, RH, dozer model

1шт.

#3 is lh, part 321-3124. per manual in ce area. decals are black.

1шт.

4

321-3132

DECAL

- Case, LH, loader model

1шт.

5

321-3133

DECAL

- Case, RH, loader model

1шт.

6

321-5305

DECAL

- Case (Replaced 321-3428

1шт.

7

321-3123

DECAL

- treadmarks

6шт.

8

321-1706

DECAL

- clam position, 4-in-1 bucket

1шт.

9

321-4184

DECAL

- bucket position, 4-in-1 bucket

1шт.

10

321-4435

DECAL

- loader controls

1шт.

11

321-4227

DECAL

- Warning, safety strut usage

2шт.

12

321-4289

DECAL

- strut storage

1шт.

13

321-4181

DECAL

- Tilt Dozer Control

1шт.

14

321-4173

DECAL

- Dozer Control, lower, raise, tilt and pitch

1шт.

15

321-4182

DECAL

- Dozer Angle

1шт.

16

321-4185

DECAL

- Ripper Control

1шт.

17

R38893

CASE

- operator's manual

1шт.

18

151-522

RIVET,Pop, 3/16" x .575"

- pop

3шт.

19

321-4172

DECAL

- operator's manual

1шт.

20

321-2433

DECAL

- bucket position indicator

1шт.

21

321-4614

TAG

- Do Not Operate

1шт.

R41245

DECAL

KIT - decal, Refs. 1 - 16 Fig. 500

1шт.
