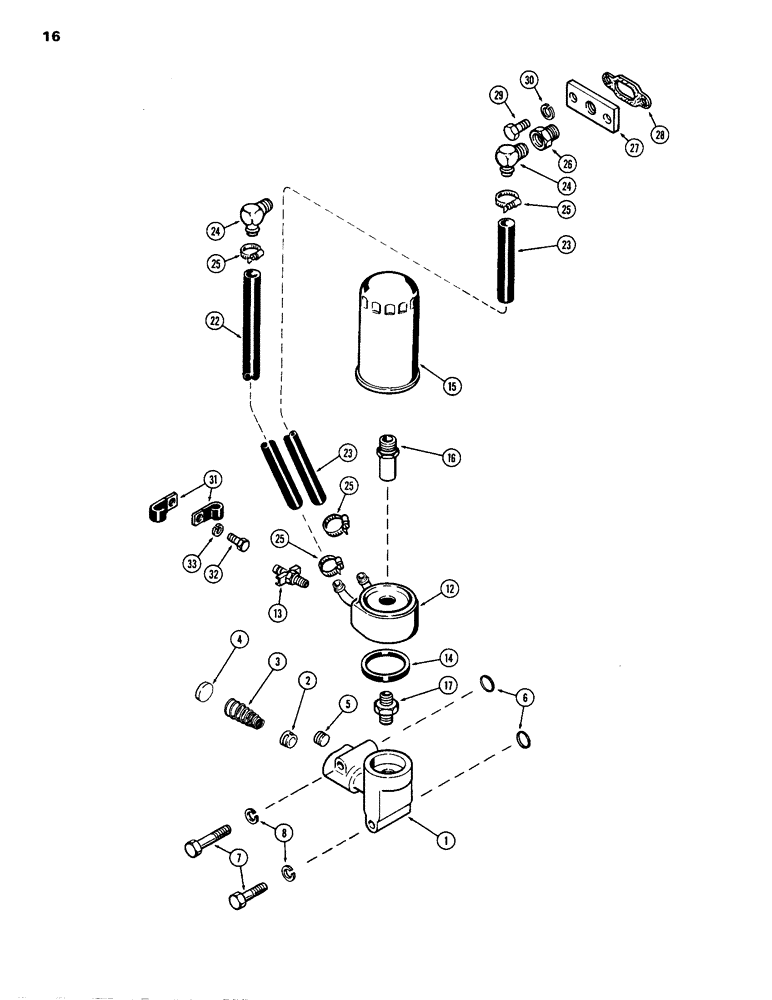

Запчасти Case 1150B (016) - OIL FILTER AND COOLER, (451BD) AND (451BDT) DIESEL ENGINES, 1ST USED ENG. SN 2572692 (01) - ENGINE

A65849

BASE

ASSEMBLY - oil filter and cooler

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - (Use A58831 adapter), Includes: RefS. 1 - 5

1шт.

2

A21090

VALVE

- relief

1шт.

3

A58669

SPRING

- relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve, 1-1/4" cup type (31.75 mm)

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT, socket head

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block, 15/16 x 1-5/16 x 1/8" (23.81 x 33.24 x 3.18 mm)

2шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Base to block Hex, 1/2"-13 x 3 3/4", G5

2шт.

8

195-33

WASHER,1/2"

- 1/2 x 1 x 1/8"

2шт.

12

A66295

COOLER

- oil

1шт.

13

217-107

VALVE

- cooler drain (discard 1/8" pipe plug in cooler)

1шт.

14

A153806

SEALING RING

- oil, cooler to base, 2-11/16 x 2-15/16 x 3/16" (68.26 x 74.61 x 4.76 mm) (Replaces A66410)

1шт.

15

A75294

ENGINE OIL FILTER

FILTER - oil (Use A66992 adapter)

1шт.

16

A66992

ADAPTER

- upper (1"-12 NF external threads and 3/4"-16 NF internal threads)

1шт.

17

A58831

ADAPTER

- lower (1"-8 NC external threads and 3/4"-16 NF external threads)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - water outlet, 15" long (381 mm) (Order A42610)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - water inlet, 29" long (736.6 mm) (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" ID x 1" OD x 50 feet (15.88 x 25.4 mm x 15.2 m) (cut to length required)

1шт.

24

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (90 degree with barb end)

2шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16" (14.29 to 27 mm)

4шт.

26

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducing, 3/4" PT to 1/2" PT

1шт.

27

A66993

FLANGE

- outlet hose (to cylinder block)

1шт.

28

A58670

GASKET

- flange

1шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Flange Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

NLS

NO LONGER SERVICED

CLIP - hose

2шт.

32

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.
