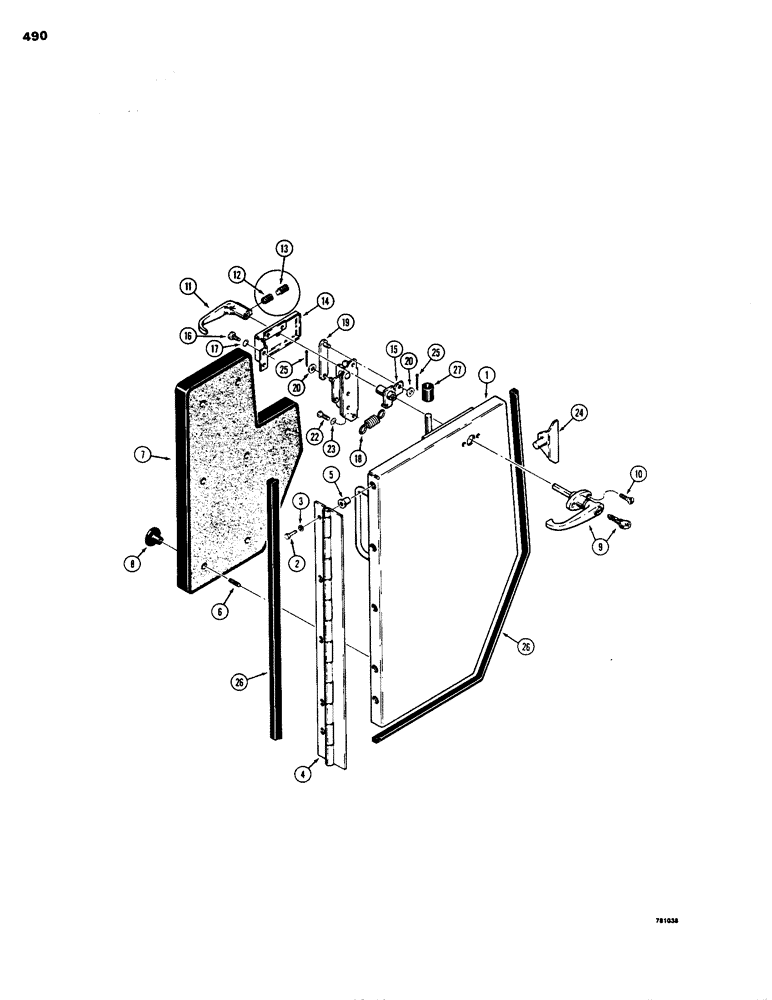

Запчасти Case 1150B (490) - CAB, LOWER DOORS (05) - UPPERSTRUCTURE CHASSIS

R37702

SPARE PART Lower, RH, Includes: Refs. 1 - 6

1шт.

R37703

SPARE PART Lower, LH, Includes: Refs. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

5шт.

3

92-4

LOCK WASHER,1/4"

5шт.

4

R37665

HINGE

1шт.

5

R37829

NUT - rivnut, 1/4" - 20 NC

5шт.

6

R38724

SPARE PART STUD - no. 10 - 24 NC x 1"

7шт.

7

R37821

SPARE PART PAD, LH

1шт.

7

R37820

SPARE PART PAD, RH

1шт.

8

R37817

SPARE PART RETAINER

16шт.

9

R37575

HANDLE

SPARE PART Outside

2шт.

10

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

4шт.

11

R37576

HANDLE

Inside

2шт.

12

83-43

SCREW - set, hex socket, 1/4" - 20 NC x 3/16"

2шт.

13

176-134

SCREW - set, slotted, 1/4" - 20 NC x 3/16"

2шт.

14

R37666

COVER

PLATE - RH door

1шт.

14

R37667

COVER

PLATE - LH door

1шт.

15

R37642

SPARE PART COVER - RH door

1шт.

15

R37694

PLATE

COVER - LH door

1шт.

16

187-339

SELF-TAP SCREW,Slotted Pan Hd, #12 x 5/8"

8шт.

17

193-7

LOCK WASHER,Ext Tooth, #12

8шт.

18

R37572

SPRING

2шт.

19

R41077

ASSEMBLY

LINK

2шт.

20

195-16

WASHER,#12

10шт.

21

R41074

LEVER

LATCH - RH door

1шт.

21

R41075

LATCH

LH door

1шт.

22

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

Round head slotted, no. 10 - 24 NC x 3/4"

8шт.

23

193-6

LOCK WASHER,Ext Tooth, #10

8шт.

24

R37647

STRIKER

2шт.

25

132-3

COTTER PIN,1/16" x 3/8"

4шт.

26

REF

INSTRUCTION

SEAL - door, 24" (610 mm) use R37570

2шт.

27

R37706

SPARE PART Seal

2шт.

R37570

SPARE PART SEAL - 25' (15.2 m) roll

1шт.
