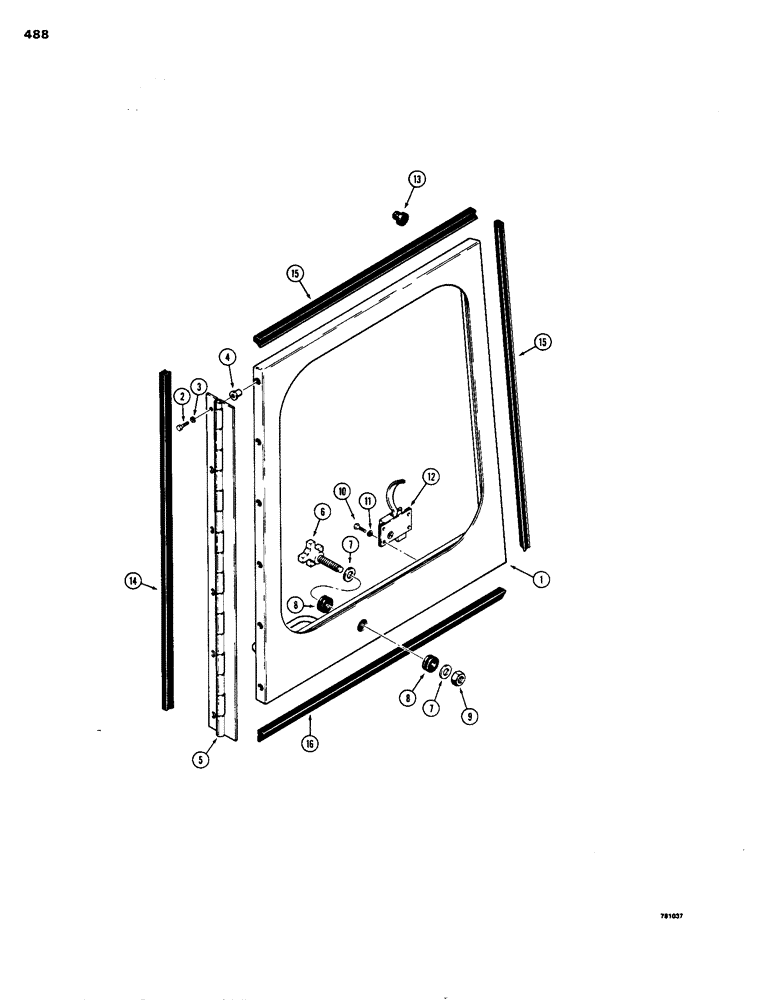

Запчасти Case 1150B (488) - CAB, UPPER DOORS (05) - UPPERSTRUCTURE CHASSIS

R37704

DOOR FRAME - RH upper, Includes: Refs. 1 - 5

1шт.

R37705

DOOR FRAME - LH upper, Includes: Refs. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

4

R37829

NUT - rivnut, 1/4" - 20 NC

6шт.

5

R37645

HINGE

1шт.

6

R37676

KNOB

2шт.

7

195-106

WASHER,1/2"

- flat, 1/2"

4шт.

8

R37662

GROMMET,9/16" ID x 13/16" Groove Dia

- rubber

4шт.

9

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, 1/2"-13, GB, Thin

2шт.

10

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- round head slotted, no. 10 - 24 NC x 3/4"

8шт.

11

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

8шт.

12

R37582

LATCH

- RH

1шт.

12

R37583

LATCH

- LH

1шт.

13

L60224

BUMPER

- rubber

2шт.

14

REF

INSTRUCTION

SEAL - 5' (1.74 m) use R37570

1шт.

15

REF

INSTRUCTION

SEAL - 3' (1.06 m) use R37709

1шт.

16

REF

INSTRUCTION

SEAL - 3' (1.06 m) use R37761

1шт.

R37761

SEAL - 25' (8.7 m) roll

1шт.

R37570

SEAL - 25' (8.7 m) roll

1шт.

R37709

SEAL - 25' (8.7 m) roll

1шт.
