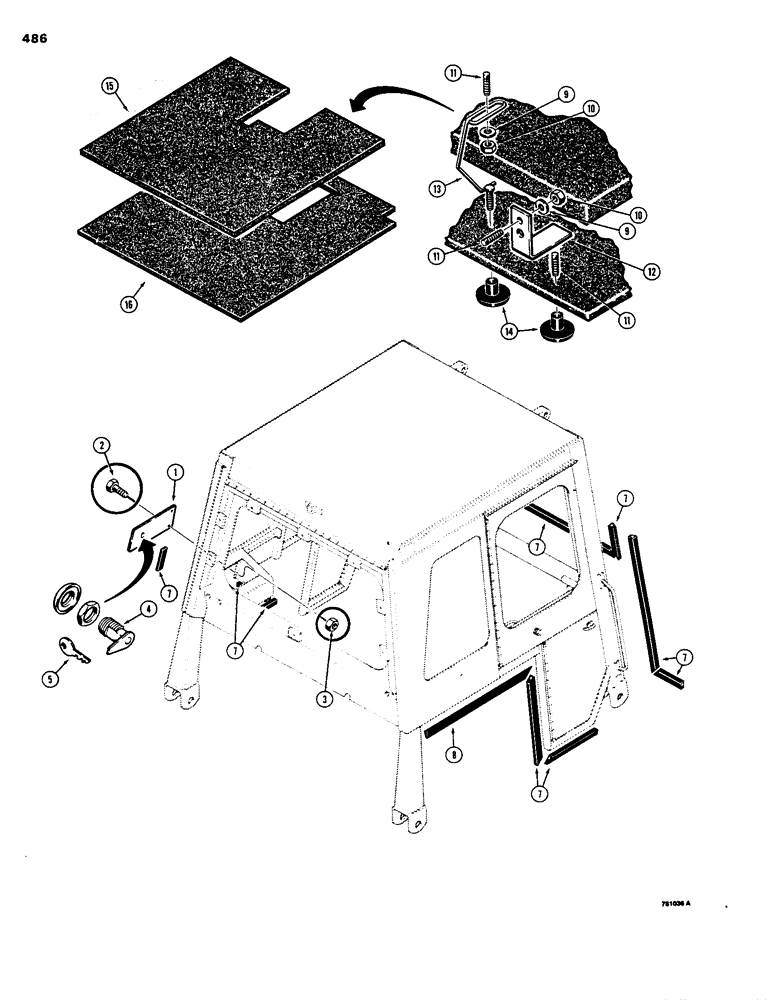

Запчасти Case 1150B (486) - CAB, FUEL ACCESS, SEALS AND ROOF PADS (05) - UPPERSTRUCTURE CHASSIS

1

R37623

DOOR - fuel access

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

3

131-2

NUT,1/4"-20, GB

NUT - hex, self lock, 3/4" - 20 NC

2шт.

4

R37681

LOCK

Includes: Ref.#5

1шт.

5

R41359

KEY

1шт.

7

R37716

SEAL - 40' (14 m) roll

1шт.

8

REF

INSTRUCTION

SEAL - cut from R37762

1шт.

9

195-513

WASHER,#10

- flat, no. 10

34шт.

10

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC

34шт.

11

R37824

STUD - no. 10 - 24 NC x 1"

34шт.

12

R37825

BRACKET

12шт.

13

R37826

BRACKET

15шт.

14

R37817

RETAINER - pads

15шт.

15

R37805

PAD - roof

1шт.

16

R37804

PAD - roof

1шт.
