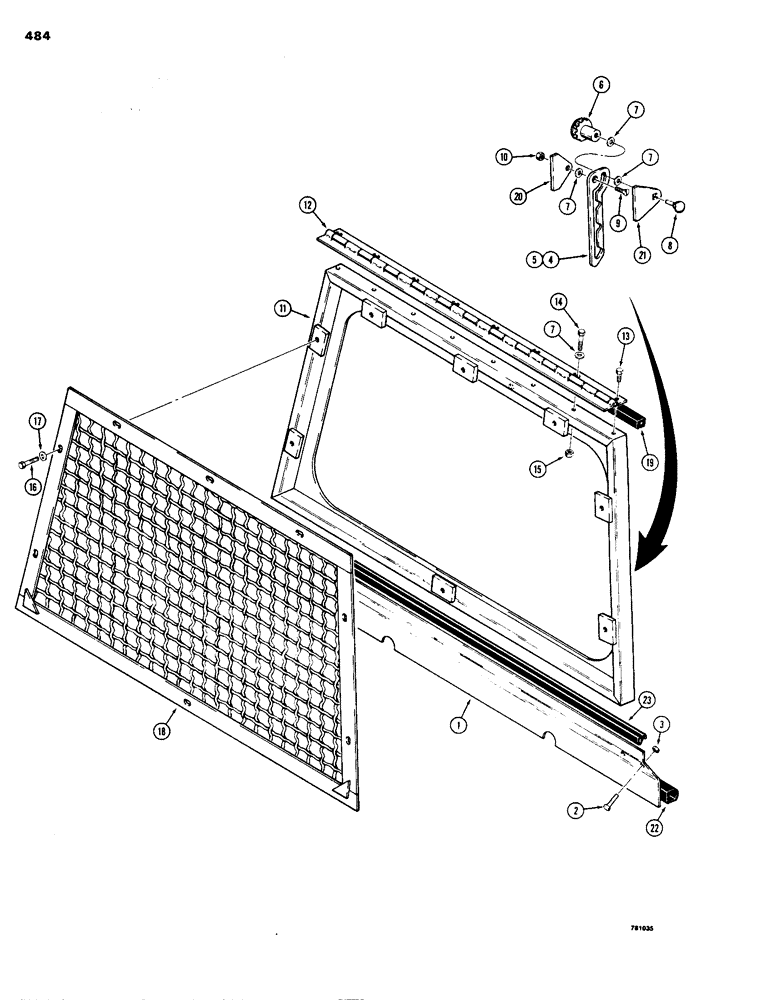

Запчасти Case 1150B (484) - CAB, REAR PANEL, SCREEN AND REAR CROSSMEMBER (05) - UPPERSTRUCTURE CHASSIS

1

R37699

CROSSMEMBER

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

4шт.

4

R37563

BAR - LH

1шт.

5

R37562

BAR - RH

1шт.

6

R37567

KNOB

2шт.

7

195-25

WASHER,3/8"

- flat, 3/8"

13шт.

8

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - round head square shoulder, 3/8" - 16 NC x 1-1/4"

2шт.

9

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- flat head slotted, 3/8" - 16 NC x 1"

2шт.

10

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

2шт.

R37557

PANEL - rear, Includes: Refs. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

PANEL

1шт.

12

R37558

HINGE

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

6шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

8шт.

17

193-115

WASHER - flat, 3/8", plated

8шт.

18

R37552

SCREEN - rear

1шт.

19

R41065

SEAL - 25' (8.7 m) roll

1шт.

20

R37559

PLATE - outer

2шт.

21

R37560

PLATE - inner

2шт.

22

REF

INSTRUCTION

SEAL - 5' (1.74 m) use R37764

1шт.

23

R41323

SEAL

- 25' (8.7 m)

1шт.

R37764

ORNAMENTAL STRIP

SEAL - 25' (8.7 m) roll

1шт.
