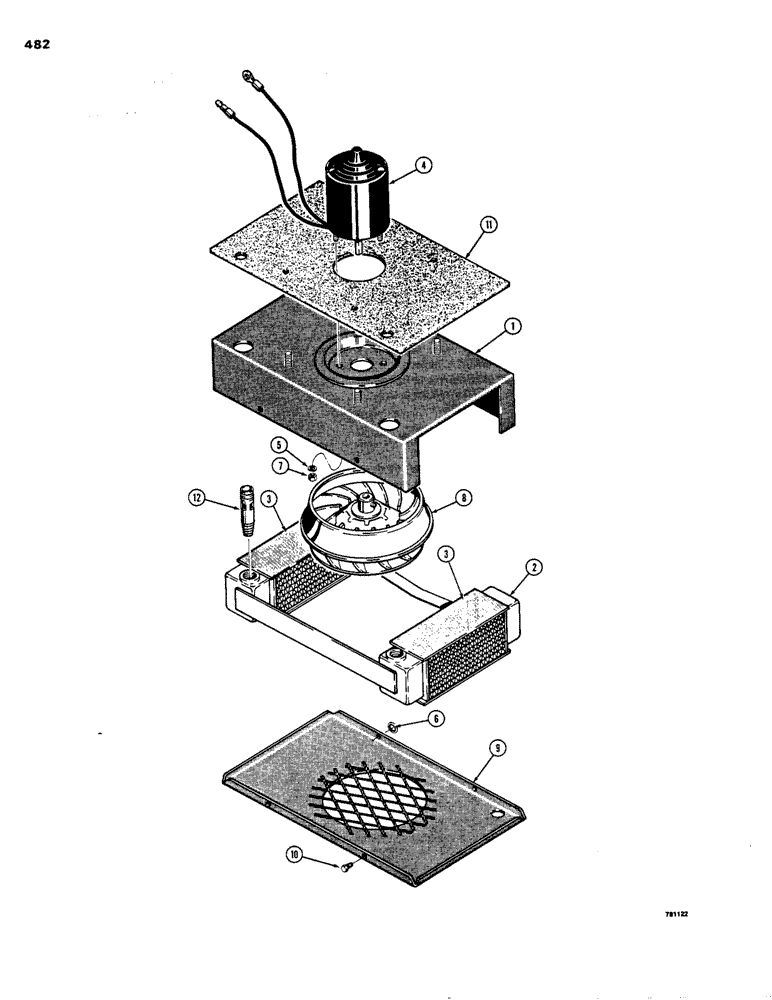

Запчасти Case 1150B (482) - CAB HEATER (05) - UPPERSTRUCTURE CHASSIS

R40468

HEATER

ASSEMBLY, Includes: Refs. 1 - 12

1шт.

R40425

HEATER, Includes: Refs. 1 - 10

1шт.

1

D63391

COVER - top

1шт.

2

D63393

CORE

1шт.

3

D83180

SPACER

4шт.

4

D83181

MOTOR, ELECTRIC

MOTOR

1шт.

5

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

6

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

7

129-37

NUT,#10-32

2шт.

8

D63396

FAN

1шт.

9

D63392

COVER

- lower

1шт.

10

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

- hex, self tap, no. 8 - 32 NC x 1/2"

4шт.

11

D63394

GASKET

1шт.

12

D65132

FITTING

- special, not used on 1150B

2шт.
