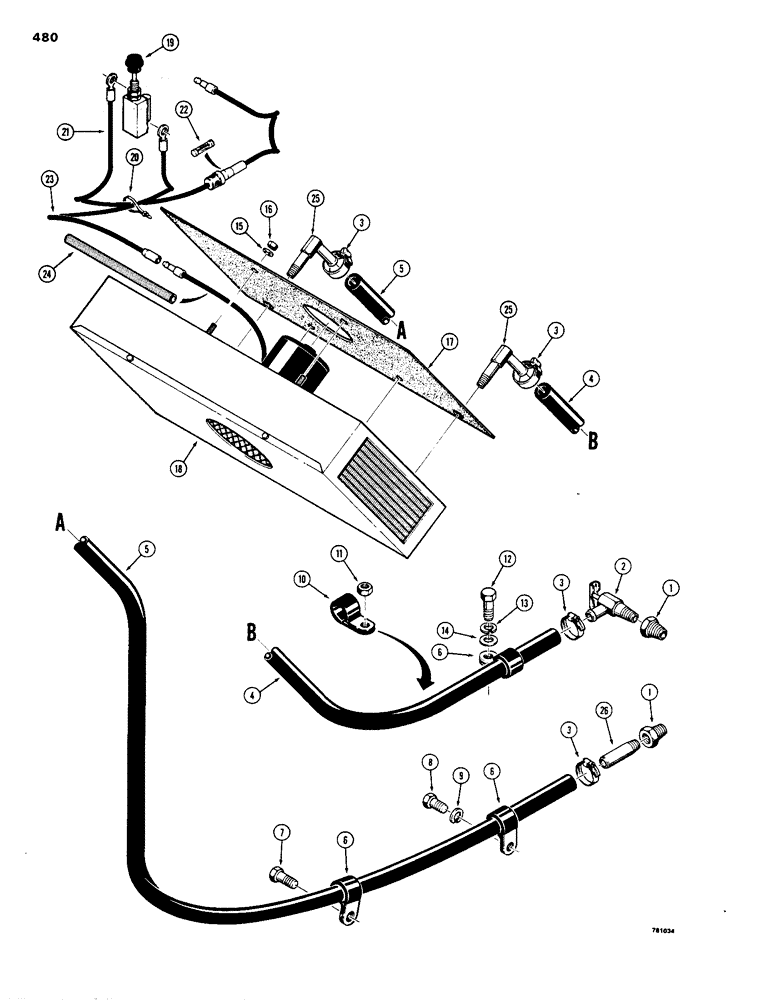

Запчасти Case 1150B (480) - CAB HEATER (05) - UPPERSTRUCTURE CHASSIS

1

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

2шт.

2

A16764

VALVE

1шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - worm screw style

4шт.

4

R40428

HOSE - 5/8" (16 mm) ID x 51" (1295 mm) long

1шт.

5

R40427

HOSE - 5/8" (16 mm) ID x 66" (1676 mm) long

1шт.

6

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- turbo models 3, non turbo models 2

2-3шт.

7

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

8

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

51200320

CLAMP

- turbo models only

1шт.

11

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

14

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

15

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

16

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

17

R40426

GASKET - heater

1шт.

18

REF

INSTRUCTION

HEATER - parts list Fig. 482

1шт.

19

L33827

SWITCH

- heater

1шт.

20

L76747

STRAP

- tie

1шт.

21

R40435

CABLE

1шт.

22

223-10

FUSE,10 Amp, Type 3AG

- AGC-10

1шт.

23

R40429

CABLE

1шт.

24

R40467

HOSE - guard, 6" (152 mm)

1шт.

25

L50610

ELBOW

FITTING - 90 degree, hose barb

2шт.

26

A19940

PIPE

FITTING - nipple

1шт.
