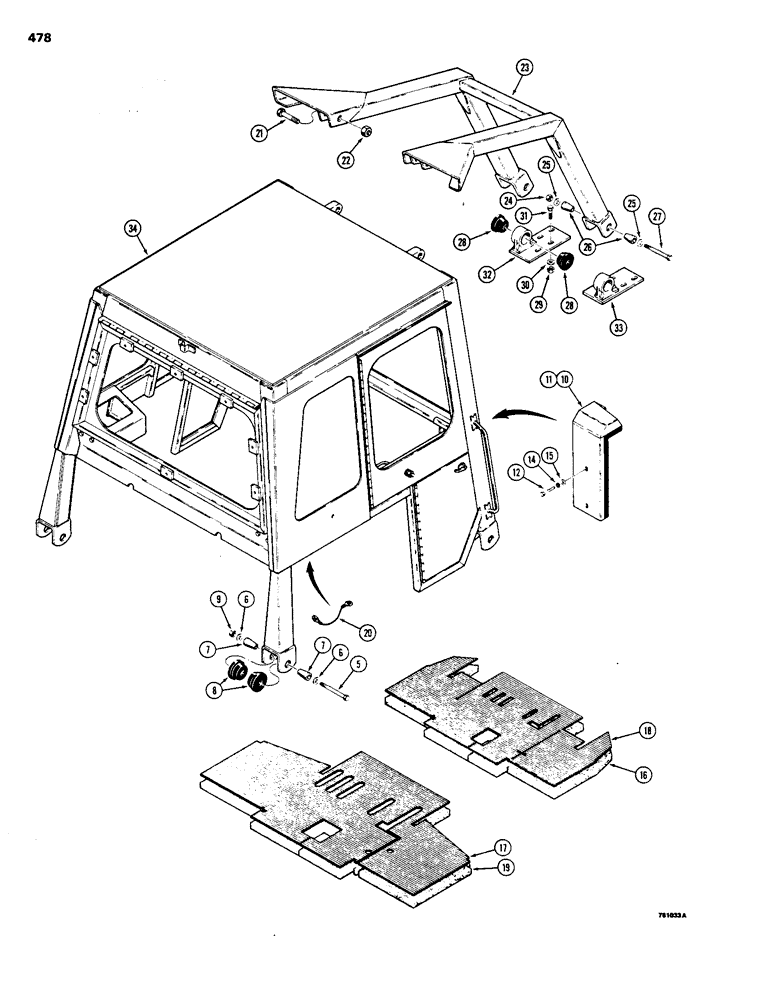

Запчасти Case 1150B (478) - CAB MOUNT AND FLOOR MATS (05) - UPPERSTRUCTURE CHASSIS

5

113-727

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

HHCS - 3/4" - 10 NC x 6-1/2", plated

4шт.

6

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened

8шт.

7

R37600

BUSHING

- insert (Replaced R37606)

8шт.

8

R37606

BUSHING

- rubber (Replaced R37600)

8шт.

9

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self lock, 3/4" - 10 NC

4шт.

10

R37722

COVER - RH, loader only

1шт.

11

R37723

COVER - LH, loader only

1шт.

12

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

16

R37797

MAT - floor, loader

1шт.

17

R37791

MAT - floor, dozer

1шт.

18

R37798

MAT - floor, loader

1шт.

19

R37790

MAT - floor, dozer

1шт.

20

R37566

WIRE - ground

1шт.

21

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

22

230-41116

NUT,1"-8, GA

NUT - hex, self lock, 1" - 8 NC

2шт.

23

R41347

PROTECTOR

GUARD - brush sweep

1шт.

24

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self lock, 3/4" - 10 NC, plated

2шт.

25

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened

4шт.

26

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

- insert

4шт.

27

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

28

F44212

MOUNTING PARTS

BUSHING - rubber

4шт.

29

25-102

WASHER

NUT - hex, 3/4" - 10 NC

6шт.

30

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

6шт.

31

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

32

R41321

GUARD

BRACKET - LH

1шт.

33

R41320

GUARD

BRACKET - RH

1шт.
