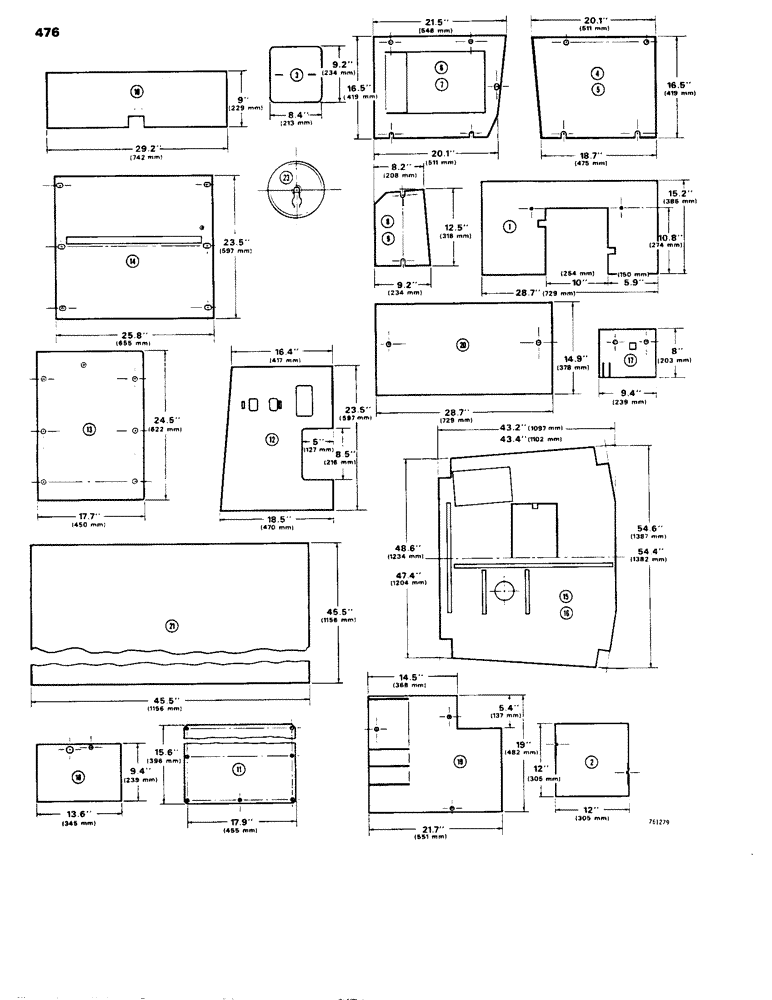

Запчасти Case 1150B (476) - NOISE REDUCTION PADS (05) - UPPERSTRUCTURE CHASSIS

R5474

NOISE REDUCTION KIT - loader, machinery item

1шт.

R5475

NOISE REDUCTION KIT - dozer, machinery item

1шт.

1

REF

INSTRUCTION

PAD - plate, under seat, cut from R30870

1шт.

2

REF

INSTRUCTION

PAD - plate, access, under seat, cut from R30870

1шт.

3

REF

INSTRUCTION

PAD - plate, access to valve, cut from R30870

1шт.

4

REF

INSTRUCTION

PAD - front side shield, LH, cut from R30870

1шт.

5

REF

INSTRUCTION

PAD - front side shield, RH, cut from R30870

1шт.

6

REF

INSTRUCTION

PAD - rear side shield, LH, cut from R30870

1шт.

7

REF

INSTRUCTION

PAD - rear side shield, RH, cut from R30870

1шт.

8

REF

INSTRUCTION

PAD - access panel, LH, dozer model, cut from R30870

1шт.

9

REF

INSTRUCTION

PAD - access panel, RH, dozer model, cut from R30870

1шт.

10

REF

INSTRUCTION

PAD - hood extension, cut from R30870

2шт.

11

REF

INSTRUCTION

PAD - top plate, hydraulic tank, cut from R30870

1шт.

12

REF

INSTRUCTION

PAD - hydraulic tank wrapper, cut from R30870

1шт.

13

REF

INSTRUCTION

PAD - side plate, hydraulic tank, cut from R30870

1шт.

14

REF

INSTRUCTION

PAD - rear cover, battery and tool box, cut from R30870

1шт.

15

REF

INSTRUCTION

PAD - hood, loader, cut from R30870

1шт.

16

REF

INSTRUCTION

PAD - hood, dozer, cut from R30870

1шт.

17

REF

INSTRUCTION

PAD - floor, RH front, cut from R30870

1шт.

18

REF

INSTRUCTION

PAD - floor, RH rear, hinged, cut from R30870

1шт.

19

REF

INSTRUCTION

PAD - floor, LH, cut from R30870

1шт.

20

REF

INSTRUCTION

PAD - battery cover, cut from R30870

1шт.

21

R42135

PAD

- roof, ROPS

1шт.

22

R30870

PAD

- bulk, 54" (1371.6 mm) x 72" (1828.8 mm) x 1" (25.4 mm), not shown

1шт.

23

R37160

RETAINER

- pad

1шт.

24

NSS

NOT SOLD SEPARAT

STRIPPING - vibration dampening, 1/4" (6.35 mm) x 3/4" (19.05 mm), not shown

1шт.
