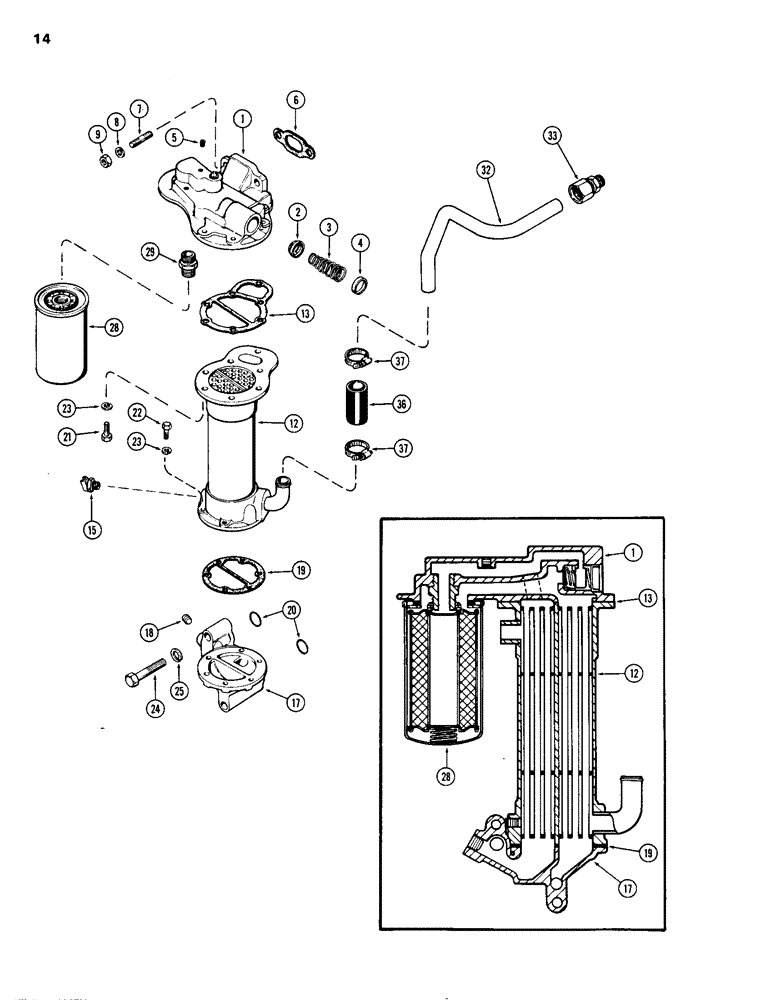

Запчасти Case 1150B (014) - OIL FILTER AND HEAT EXCHANGER, (451BD) DIESEL ENGINE, USED PRIOR TO ENG. SN 2572692 (01) - ENGINE

1

A58667

HEAD

ASSEMBLY - heat exchanger and oil filter, Includes: Refs. 2 - 4

1шт.

2

A21090

VALVE

- oil filter relief

1шт.

3

A58669

SPRING

- relief valve, 2-13/16" free length (71.44 mm)

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve, 1-1/4" cup type (31.75 mm)

1шт.

5

221-843

PLUG,Hex Soc, 3/8"-18

- head, 3/8" PT, socket head

1шт.

6

A58670

GASKET

-, Serial Range: head-block

1шт.

7

G102126

STUD

- head to block, 1/2" NC x 2-1/8"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

2шт.

12

A58674

COOLER

EXCHANGER - heat unit

1шт.

13

A58676

GASKET

- exchanger, Serial Range: unit-head

1шт.

15

A23656

COCK, DRAIN

VALVE - drain

1шт.

17

A64409

BASE

ASSEMBLY - heat exchanger, Includes: Ref. 18

1шт.

18

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT, socket head

1шт.

19

A58675

GASKET

- base to exchanger unit

1шт.

20

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block, 15/16 x 1-1/8 x 3/32" (23.81 x 28.58 x 2.38 mm)

2шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Unit to head Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

22

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- unit to head, 3/8 x 1-3/8" NC hex

5шт.

22

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- unit to head, 3/8 x 2-1/2" NC hex

1шт.

23

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

13шт.

24

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- base to lock, 1/2 x 3" NC hex

1шт.

24

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Base to block Hex, 1/2"-13 x 4 1/2", G5

1шт.

25

92-8

LOCK WASHER,1/2"

2шт.

28

A75294

ENGINE OIL FILTER

FILTER - oil (Replaces A58672)

1шт.

29

A63916

ADAPTER

-, Serial Range: filter-head

1шт.

32

A65956

TUBE

- to water pump body

1шт.

33

222-2020

FITTING

CONNECTOR ASSEMBLY - tube to water pump body

1шт.

36

A58681

HOSE

- heat exchanger, 1" ID x 2-1/2" (25.4 x 63.5 mm)

1шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

2шт.
