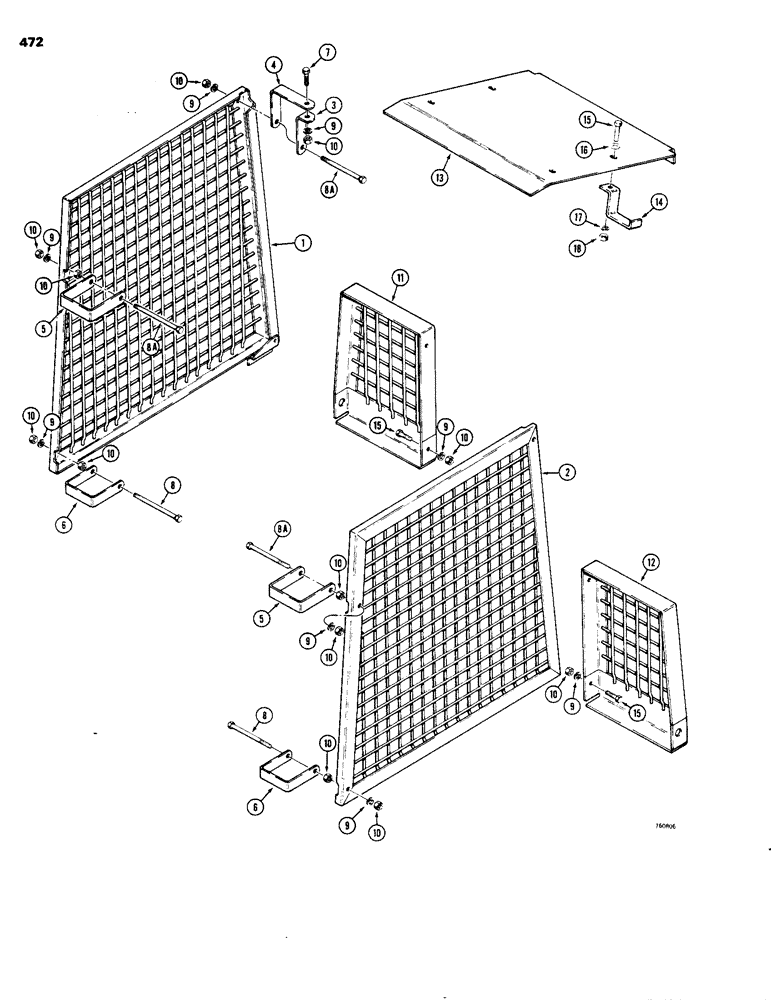

Запчасти Case 1150B (472) - ROLL-OVER PROTECTION SIDE SCREENS AND EXTENSION, USED BEFORE TRAC. SN 7306659 (05) - UPPERSTRUCTURE CHASSIS

1

F93819

SCREEN

- LH side, all models

1шт.

2

F93820

SCREEN

- RH side, all models

1шт.

3

F44063

SUPPORT - inner

2шт.

4

F44064

SUPPORT - outer

2шт.

5

R37018

CLAMP - upper rear

2шт.

6

F43755

CLAMP

- lower rear

2шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

8

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

2шт.

8a

113-2434

BOLT,Hex, 1/2" - 13 x 6", Gr 5

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

11

F93955

SCREEN - LH front, dozers and drawbars

1шт.

12

F93956

SCREEN - RH front, dozers and drawbars

1шт.

13

F43757

CANOPY EXTENSION - dozer and drawbar

1шт.

14

F43756

CLAMP - canopy

4шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

16

195-106

WASHER,1/2"

- flat, , plated 1/2"

4шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
