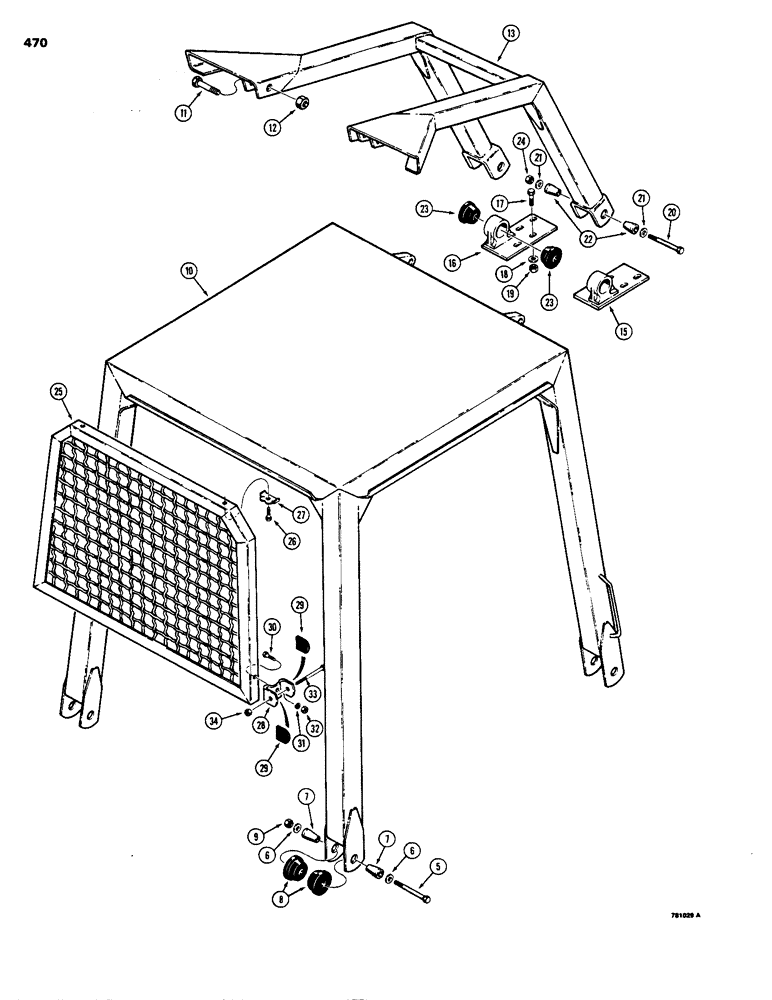

Запчасти Case 1150B (470) - ROLL-OVER PROTECTION STRUCTURE, USED TRACTOR SN 7306659 & AFTER (05) - UPPERSTRUCTURE CHASSIS

5

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

6

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened

8шт.

7

F44228

BUSHING,19.46mm ID x 38.1mm OD x 60.2mm L

- insert

8шт.

8

F44214

MOUNTING PARTS

BUSHING - rubber

8шт.

9

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self lock, 3/4" - 10 NC, plated

4шт.

10

ROPS - see Fig. 2 for ordering

1шт.

11

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

12

230-41116

NUT,1"-8, GA

NUT - hex, self lock, 1" - 8 NC

2шт.

13

R41347

PROTECTOR

GUARD - brush sweep, dozer

1шт.

15

R41320

GUARD

BRACKET - RH

1шт.

16

R41321

GUARD

BRACKET - LH

1шт.

17

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

6шт.

19

25-1012

NUT,3/4"-10, G5

6шт.

20

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

21

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened

4шт.

22

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

- insert

4шт.

23

F44212

MOUNTING PARTS

BUSHING - rubber

4шт.

24

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self lock, 3/4" -10 NC, plated

2шт.

25

F96638

SCREEN

- rear

1шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

R38226

LOCK WASHER

- special

2шт.

28

R40073

CLAMP

2шт.

29

R40074

CUSHION ASSY.

CUSHION - rubber

4шт.

30

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.

32

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

33

113-2429

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

HHCS - 1/2" - 13 NC x 5-3/4", plated

2шт.

34

131-70

NUT,1/2"-13, GB

NUT - hex, self lock, 1/2" - 13 NC, plated

2шт.
