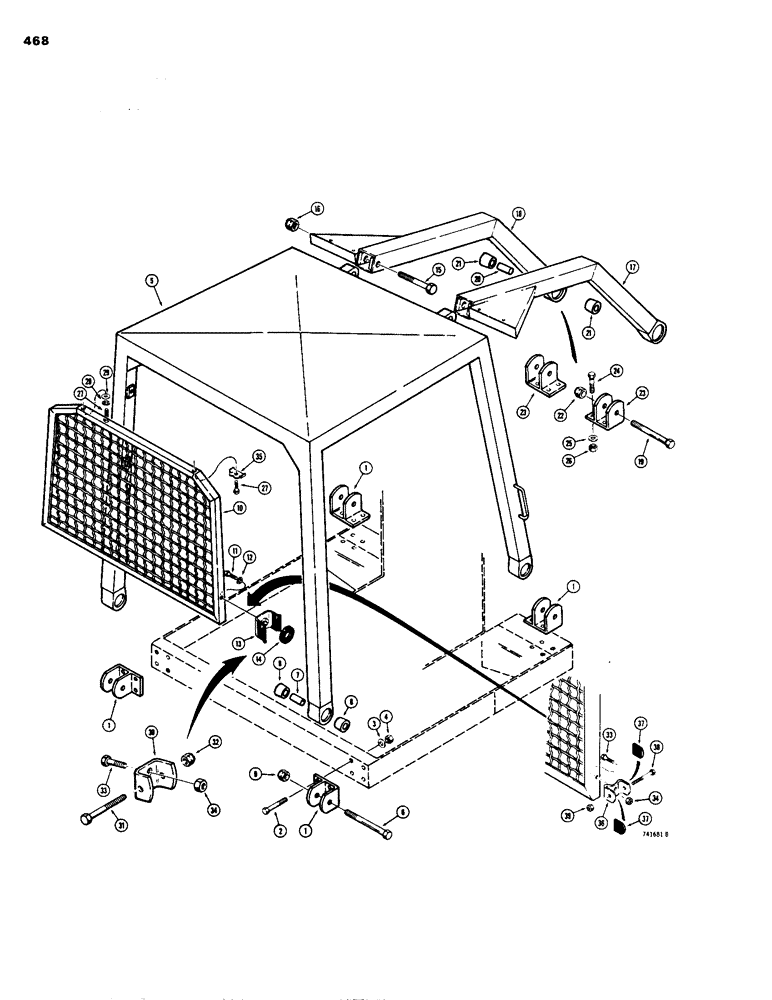

Запчасти Case 1150B (468) - ROLL-OVER PROTECTION STRUCTURE (05) - UPPERSTRUCTURE CHASSIS

1

F93219

PLATE

BRACKET - rear mounting, ROPS

2шт.

1

F96667

BRACKET - front mounting, LH, ROPS

1шт.

1

F96668

BRACKET - front mounting, RH, ROPS

1шт.

2

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

16шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, hardened

16шт.

4

25-1012

NUT,3/4"-10, G5

16шт.

5

NSS

NOT SOLD SEPARAT

ROPS - see Fig. 2 for ordering

1шт.

6

26-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

HHCS - 1" - 8 NC x 6"

4шт.

7

F42250

BUSHING

- insert

4шт.

8

F42265

INSERT

BUSHING - rubber

8шт.

9

131-20

LOCK NUT,1"-8, GB

NUT - hex, self lock, 1" - 8 NC

4шт.

10

F93370

SCREEN - rear guard

1шт.

11

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

F93723

BRACKET - screen, if used

2шт.

14

F43498

BUMPER - rubber, if used

2шт.

15

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

HHCS - 1" - 8 NC x 4"

2шт.

16

230-41116

NUT,1"-8, GA

NUT - hex, self lock, 1" - 8 NC

2шт.

17

F93518

GUARD

- RH brush sweep, dozer

1шт.

18

F93519

GUARD

- LH brush sweep, dozer

1шт.

17

F93520

GUARD ASSY.

GUARD - RH brush sweep, loader

1шт.

18

F93521

GUARD ASSY.

GUARD - LH brush sweep, loader

1шт.

19

26-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

HHCS - 1" - 8 NC x 4-1/2"

2шт.

20

F42250

BUSHING

- insert

2шт.

21

F42265

INSERT

BUSHING - rubber

4шт.

22

131-20

LOCK NUT,1"-8, GB

NUT - hex, self lock, 1" - 8 NC

2шт.

23

F96663

BRACKET - guard mounting

2шт.

24

25-1232

HHCS - 3/4" - 10 NC x 2"

8шт.

25

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, hardened

8шт.

26

25-1012

NUT,3/4"-10, G5

8шт.

27

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

28

92-8

LOCK WASHER,1/2"

use R38226 1/2"

2шт.

29

95-8

WASHER,1/2"

flat, use R38226 1/2"

2шт.

30

R37876

CLAMP - if used

2шт.

31

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8" - 16 NC x 4-1/2"

2шт.

32

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

2шт.

33

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

34

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

35

R38226

LOCK WASHER

- special, if used

2шт.

36

R40073

CLAMP

2шт.

37

R40074

CUSHION ASSY.

CUSHION - rubber

4шт.

38

113-2428

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

2шт.

39

131-70

NUT,1/2"-13, GB

NUT - hex, self lock, 1/2" - 13 NC

2шт.
