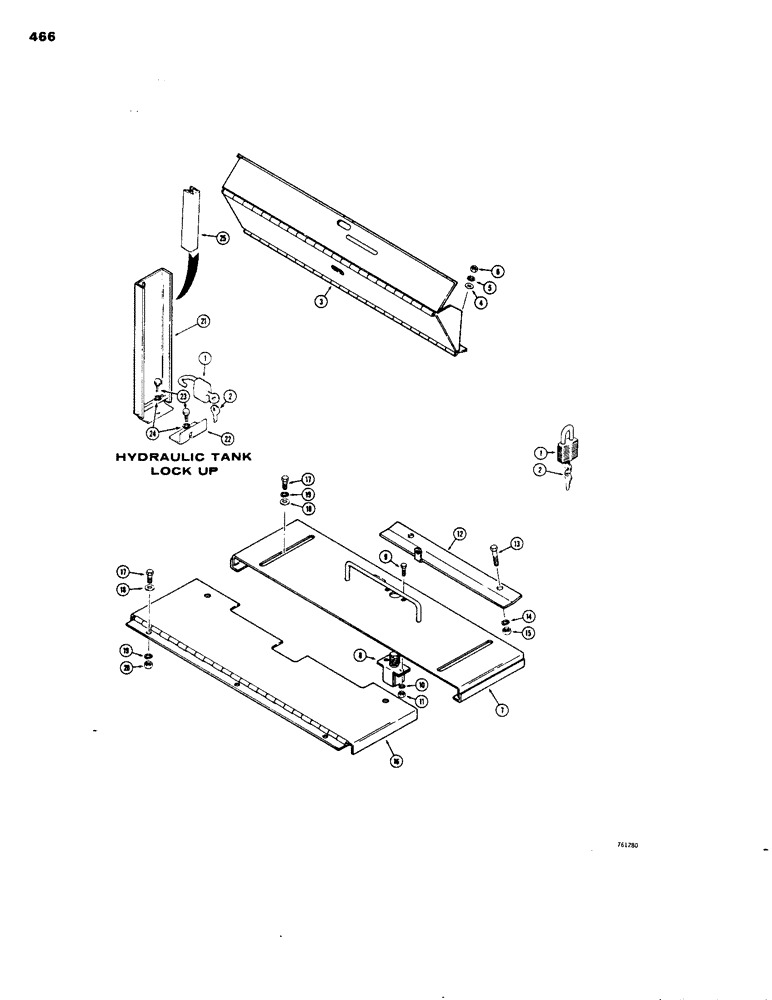

Запчасти Case 1150B (466) - LOCK UP PARTS, PADLOCK AND KEY (05) - UPPERSTRUCTURE CHASSIS

1

R29556

LOCK

PADLOCK - tractor lock up

7шт.

2

R29555

KEY

- padlock, set of two

1шт.

3

R38682

COVER

- instrument panel lock up

1шт.

For covers with studs use R38682 plate and 3 P/N A42923 bolts

1шт.

3a

A42923

CARRIAGE BOLT

BOLT - special, instrument panel lock up

3шт.

4

195-21

WASHER,5/16"

- flat, , Instrument panel lock up 5/16"

3шт.

5

92-5

LOCK WASHER,5/16"

WASHER - lock, , instrument panel lock up 5/16"

3шт.

6

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16", instrument panel lock up

3шт.

7

R27617

COVER

- tool box lock, outer

1шт.

8

R25164

FASTENER

- pawl, adjustable, tool box lock up

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Tool box lock up Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Tool box lock up 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

Tool box lock up 1/4"-20, G5

2шт.

12

R27622

PLATE

- tool box lock up

1шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Tool box lock up Hex, 3/8"-16 x 1 3/4", G5

2шт.

14

92-6

LOCK WASHER,3/8"

WASHER - lock, , tool box lock up 3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, tool box lock up

2шт.

16

R27620

PLATE

- tool box, inner, lock up

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Tool box lock up Hex, 3/8"-16 x 3/4", G5, Full Thd

5шт.

18

195-25

WASHER,3/8"

- flat, , tool box lock up 3/8"

5шт.

19

92-6

LOCK WASHER,3/8"

WASHER - lock, , tool box lock up 3/8"

5шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, tool box lock up

3шт.

21

R31153

GUARD

- hydraulic tank lock up

1шт.

22

R31155

ANGLE

BRACKET - hydraulic tank, angle, lock up

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hydraulic tank lock up Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

WASHER - lock, , hydraulic tank up 3/8"

2шт.

25

R38772

RUBBER STRIP

TRIM, hydraulic tank lock up

1шт.
