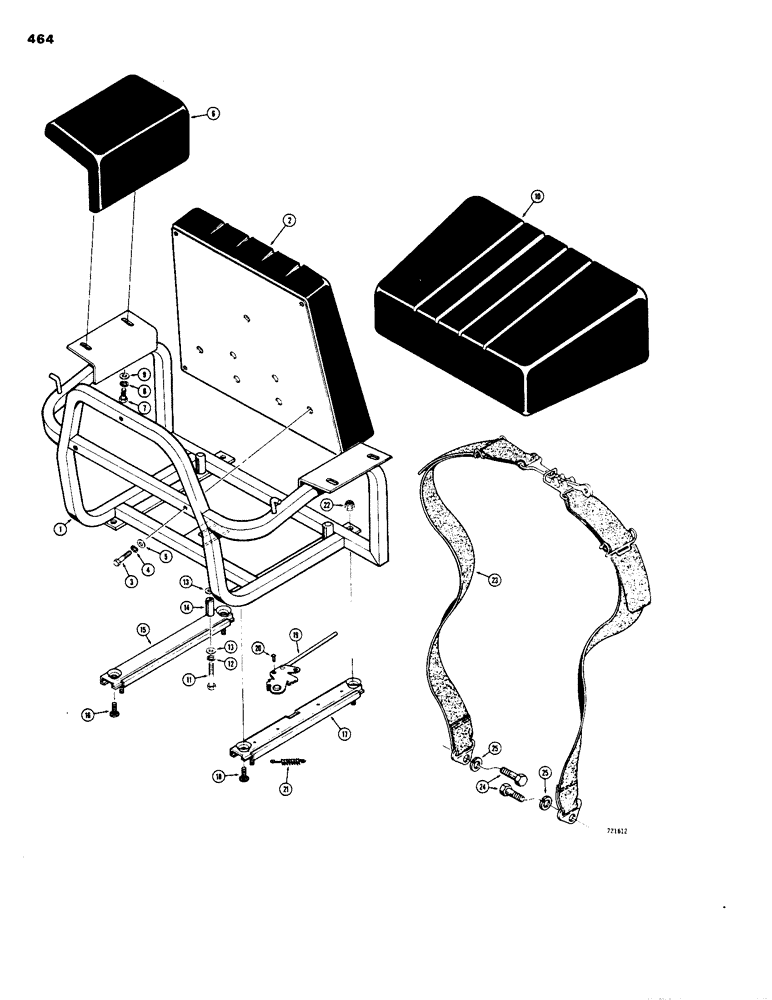

Запчасти Case 1150B (464) - SEAT ASSEMBLIES AND SEAT BELT (05) - UPPERSTRUCTURE CHASSIS

1

R27594

SEAT

FRAME - tubular

1шт.

2

R27596

CUSHION

- back

1шт.

3

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

4

92-5

LOCK WASHER,5/16"

WASHER - lock, 3/8"

3шт.

5

195-25

WASHER,3/8"

- flat, 3/8"

3шт.

6

R27579

CUSHION

- arm rest, order R39420

2шт.

7

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

8

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

9

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

10

R27595

CUSHION

- seat

1шт.

R27898

RUNNER

SLIDE ASSEMBLY - seat, LH

1шт.

12

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

13

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

14

D35217

BUSHING

SPACER - tube

1шт.

R27898

RUNNER

SLIDE ASSEMBLY - seat, LH, Includes: Refs. 15 & 16

1шт.

15

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

R27894

RUNNER

SLIDE ASSEMBLY - seat adjusting, RH, Includes: Refs. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

18

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

19

R25577

LEVER

HANDLE - seat adjusting

1шт.

20

45-311

RIVET - 3/16" x 11/16"

2шт.

21

NSS

NOT SOLD SEPARAT

SPRING - handle return

1шт.

22

131-351

LOCK NUT,5/16"-18, GA

NUT - hex, self lock, 5/16" - 18 NC

8шт.

23

R39063

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide

1шт.

23

R36488

SAFETY BELT

SAFETY BELT, 3" (76 mm) wide

2шт.

24

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.
