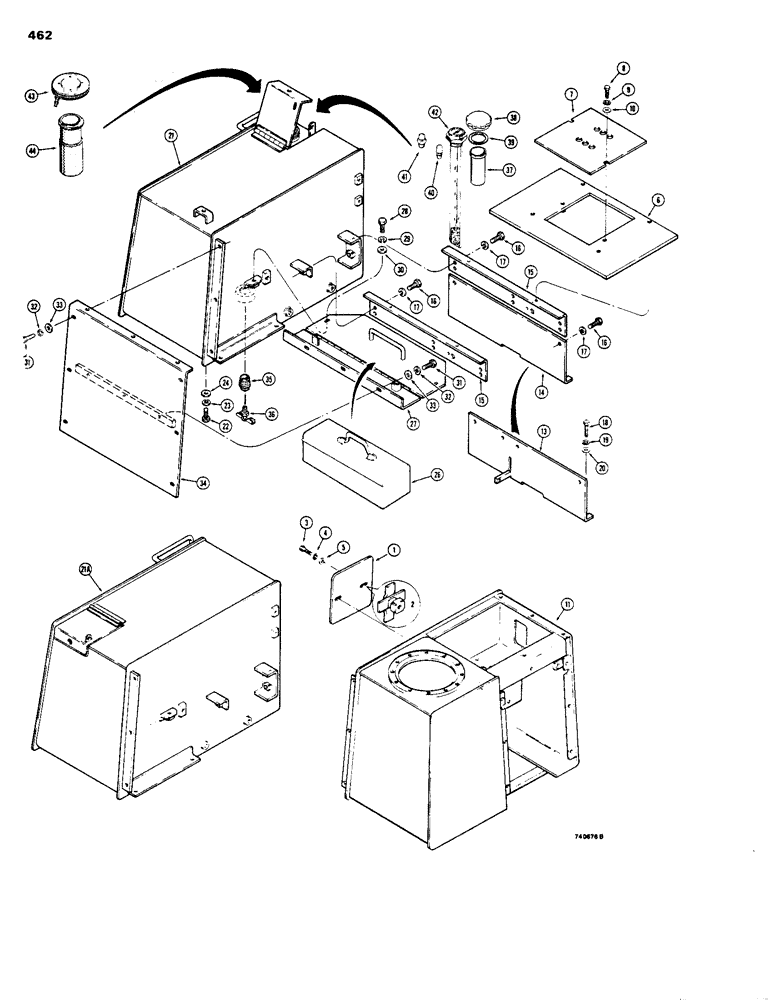

Запчасти Case 1150B (462) - FUEL TANK, TOOL BOX AND PLATES (05) - UPPERSTRUCTURE CHASSIS

1

R30357

COVER

PLATE - access, valve

1шт.

2

R30355

STEEL SHEET NUT

CLAMP - plate retaining

2шт.

3

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

4

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

5

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

6

R30292

PLATE - under seat

1шт.

7

R30291

PLATE - access, under seat

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

10

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

11

REF

INSTRUCTION

HYDRAULIC - tank, parts list Fig. 212

1шт.

13

R27512

PLATE - heel, dozer models

1шт.

14

R27607

PLATE - heel, loader models

1шт.

15

R27605

ANGLE - seat mounting

2шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

17

92-8

LOCK WASHER,1/2"

6шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

21

R26914

FUEL TANK - front fueling, service with R33356 tank, Serial Range: -7306041

1шт.

21a

R39373

TANK

FUEL TANK, Start Serial: 7306041

1шт.

22

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

195-41

WASHER,5/8"

- flat, 5/8"

4шт.

26

R29693

BOX, TOOL

BOX - tool

1шт.

27

R27604

COVER

PLATE - battery cover, hinged

1шт.

28

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

2шт.

29

92-8

LOCK WASHER,1/2"

2шт.

30

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

9шт.

32

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

9шт.

33

195-25

WASHER,3/8"

- flat, 3/8"

9шт.

34

R27603

COVER ASSY

PLATE - rear cover, tool box and batteries

1шт.

35

R27578

PLUG

- special

1шт.

36

217-81

VALVE

- drain cock

1шт.

37

D36346

STRAINER ELEMENT

STRAINER - fuel, R26914 & R33356 tank

1шт.

38

D31747

COVER

CAP - fuel tank, R26914 & R33356 tank

1шт.

39

D34975

GASKET

- fuel cap, R26914 & R33356 tank

1шт.

40

D33028

VALVE

- relief, R26914 & R33356 tank

1шт.

41

D33027

BREATHER

VALVE - air inlet, R26914 & R33356 tank

1шт.

42

R28475

FUEL GAUGE

GAUGE - fuel

1шт.

43

R39338

CUP

CAP - R39373 tank

1шт.

44

R39339

STRAINER ELEMENT

STRAINER - R39373 tank

1шт.

45

REF

INSTRUCTION

TRIM - 24-3/4" (628 mm) long, cab models, cut from F64277 bulk, not shown

1шт.
