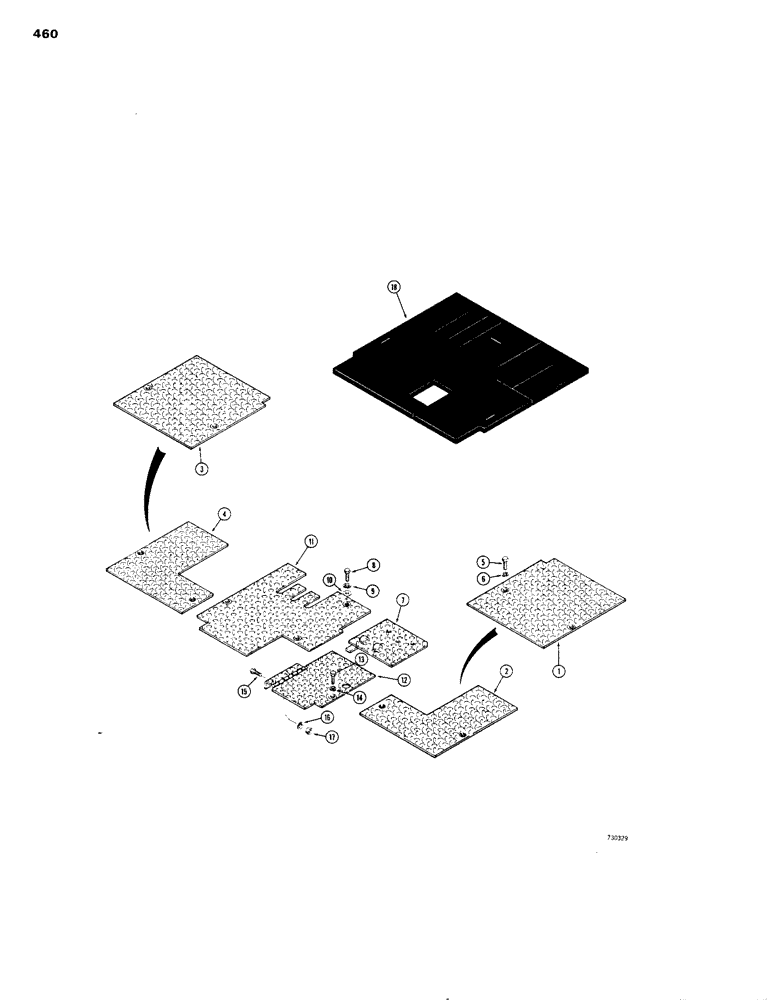

Запчасти Case 1150B (460) - FLOOR PLATES AND MAT (05) - UPPERSTRUCTURE CHASSIS

1

R27193

PLATE - step, RH, dozer models

1шт.

2

R27150

PLATE - step, RH, loader models

1шт.

3

R27192

PLATE - step, LH, dozer models

1шт.

4

R27149

PLATE - step, LH, loader models

1шт.

5

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

7

R27198

PLATE

- floor, RH front

1шт.

8

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

3шт.

9

92-8

LOCK WASHER,1/2"

3шт.

10

195-33

WASHER,1/2"

- flat, 1/2"

3шт.

11

R37517

PLATE

- floor, LH side

1шт.

12

R27194

PLATE - floor, RH rear, hinged

1шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

14

92-8

LOCK WASHER,1/2"

3шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

16

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

18

R29945

MAT

- floor

1шт.
