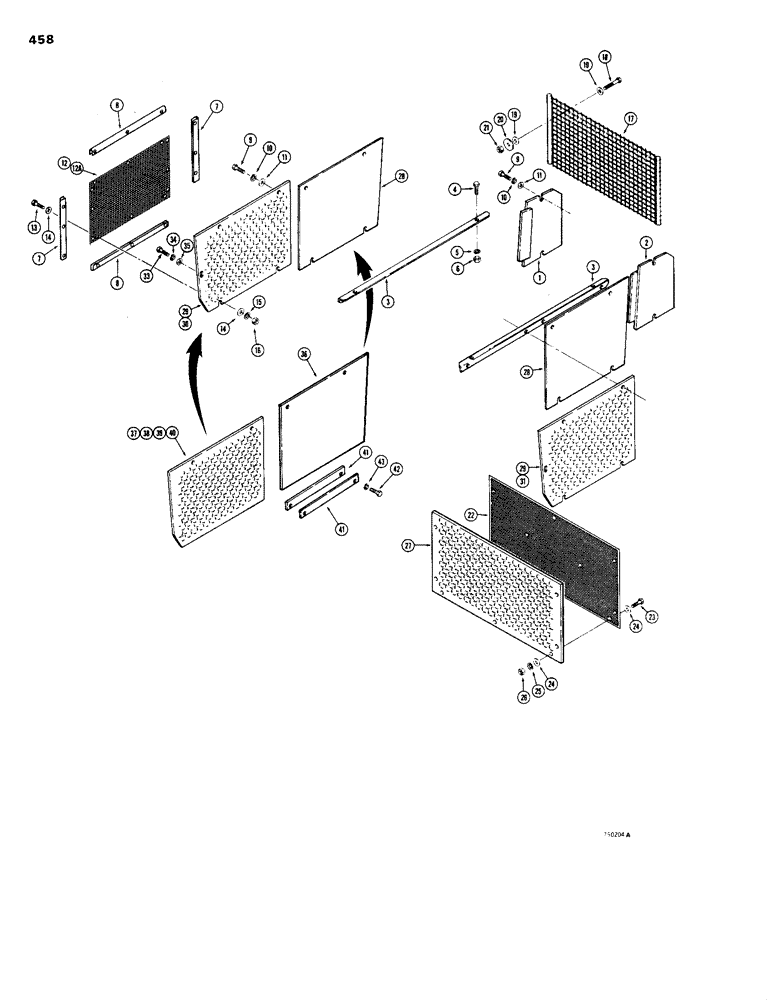

Запчасти Case 1150B (458) - BRUSH SCREENS, DIRT SCREENS AND SIDE SHIELDS (05) - UPPERSTRUCTURE CHASSIS

1

R27296

COVER

SHIELD - access panel, LH, dozer models

1шт.

2

R27297

COVER

SHIELD - access panel, RH, dozer models

1шт.

3

R27299

ANGLE

- dozer models

2шт.

4

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

7

R40304

STRIP

PLATE - used with Ref.#12A

4шт.

8

R40303

STRIP

PLATE - used with Ref.# 12A

4шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Loader models - 16, dozer models - 20 Hex, 1/2"-13 x 1 1/4", G5, Full Thd

20шт.

10

92-8

LOCK WASHER,1/2"

20шт.

11

195-33

WASHER,1/2"

- flat, 1/2"

20шт.

12

R27757

SCREEN

- brush, use R40308 screen and (2) R40303 and R40304 plates

2шт.

12a

R40308

SCREEN

- brush

2шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

24шт.

14

194-28

WASHER - flat, 3/8"

32шт.

15

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

24шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

24шт.

17

R27890

BRUSH

SCREEN - brush, radiator, inside of grille

1шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

16шт.

19

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

32шт.

20

R20553

WASHER

SPACER - screen

16шт.

21

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self lock, 3/8" - 16 NC

16шт.

22

R29637

SCREEN - dirt, radiator, outside of grille

1шт.

23

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

24

195-33

WASHER,1/2"

- flat, 1/2"

12шт.

25

92-8

LOCK WASHER,1/2"

6шт.

26

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

6шт.

27

R27713

GRILLE - radiator, forestry, Fig. 452 for mounting parts

2шт.

28

R27228

SHIELD

- front, side, Non sliding side shields

2шт.

29

R27349

SHIELD

- rear, side, LH and RH standard, Non sliding side shields

2шт.

30

R33517

SHIELD

- rear, side, LH noise reduction, not shown, Non sliding side shields

1шт.

31

R33518

SHIELD

- rear, side, RH noise reduction, not shown, Non sliding side shields

1шт.

33

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Non sliding side shields Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

34

92-8

LOCK WASHER,1/2"

Non sliding side shields 1/2"

2шт.

35

195-33

WASHER,1/2"

- flat, Non sliding side shields 1/2"

2шт.

36

R35351

PANEL

SHIELD - front, RH and LH, Sliding side shield

2шт.

36

R38135

SHIELD

- LH front, noise reduction, not shown, Sliding side shield

1шт.

See Fig. 476 for replacement pads.

1шт.

36

R38136

GUARD

SHIELD - RH front, noise reduction, not shown, Sliding side shield

1шт.

See Fig. 476 for replacement pads.

1шт.

37

R35352

SHIELD - RH front, noise reduction, not shown, Sliding side shield

1шт.

38

R38163

GUARD

SHIELD - RH rear, noise reduction, not shown, Sliding side shield

1шт.

See Fig. 476 for replacement pads.

1шт.

39

R38162

SHIELD

- LH rear, loader noise reduction, not shown, Sliding side shield

1шт.

See Fig. 476 for replacement pads.

1шт.

40

R38139

SHIELD

- LH rear, dozer noise reduction, not shown, Sliding side shield (Replaced R38136)

1шт.

See Figure 476 for replacement pads.

1шт.

41

R34023

STRIP

- shield retaining, Sliding side shield

8шт.

42

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Sliding side shield Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

43

92-8

LOCK WASHER,1/2"

Sliding side shield 1/2"

8шт.
