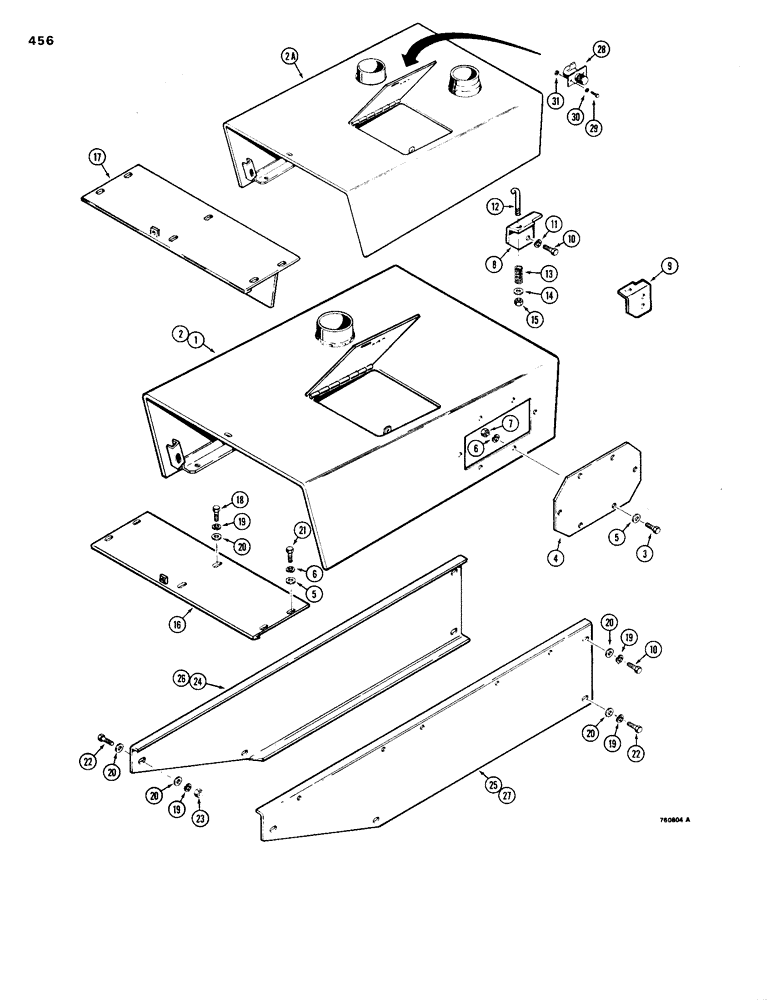

Запчасти Case 1150B (456) - HOOD AND SIDE PANELS, HOOD WITH SIDE AIR CLEANER INTAKE (05) - UPPERSTRUCTURE CHASSIS

1

R27283

HOOD - dozer, non-turbocharged models

1шт.

1

R27231

HOOD - loader, non-turbocharged models

1шт.

1

R38180

HOOD - dozer, noise reduction models

1шт.

When replacing hoods without studs, also order 17 P/N R37160 retainers for dozers and 21 P/N R37160 retainers for loaders

1шт.

2

R33889

HOOD - loader, turbocharged models

1шт.

2

R33882

HOOD - dozer, turbocharged models

1шт.

2a

R38994

HOOD

- loader, turbocharger, w/ top air cleaner intake

1шт.

2a

R38995

HOOD

- loader, non-turbocharger, w/ top air cleaner intake

1шт.

2a

R39004

HOOD - loader, noise reduction models, w/ top air cleaner intake

1шт.

When replacing hoods without studs, also order 17 P/N R37160 retainers for dozers and 21 P/N R37160 retainers for loaders

1шт.

2a

R39007

HOOD

- dozer, turbocharger, w/ top air cleaner intake

1шт.

2a

R38996

HOOD

- dozer and drawbar, non-turbocharger, w/ top air cleaner intake

1шт.

2a

R39005

HOOD - dozer, noise reduction models, w/ top air cleaner intake

1шт.

When replacing hoods without studs, also order 17 P/N R37160 retainers for dozers and 21 P/N R37160 retainers for loaders

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hood w/ top air cleaner intake Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

4

R35813

PLATE

- hood w/ top air cleaner intake

1шт.

5

195-25

WASHER,3/8"

- flat, , hood w/ top air cleaner intake 3/8"

10шт.

6

92-6

LOCK WASHER,3/8"

WASHER - lock, , hood w/ top air cleaner intake 3/8"

10шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, hood w/ top air cleaner intake

6шт.

8

R27284

ANGLE

- LH, hold down, hood w/ top air cleaner intake

1шт.

9

R27285

ANGLE

- RH, hold down, hood w/ top air cleaner intake

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 1/2" - 13 NC x 1", hood w/ top air cleaner intake

8шт.

11

92-8

LOCK WASHER,1/2"

hood w/ top air cleaner intake 1/2"

4шт.

12

D33958

BOLT

- special - J, hood w/ top air cleaner intake

4шт.

13

F60482

SPRING

- hold down, hood w/ top air cleaner intake

4шт.

14

195-25

WASHER,3/8"

- flat, , hood w/ top air cleaner intake 3/8"

4шт.

15

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, lock, 3/8" - 16 NC, hood w/ top air cleaner intake

4шт.

16

R27287

PLATE

- hood extension, standard, w/ top air cleaner intake

1шт.

17

R29900

PLATE

- hood extension, noise reduction, w/ top air cleaner intake

1шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Hood w/ top air cleaner intake Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

hood w/ top air cleaner intake 1/2"

10шт.

20

195-33

WASHER,1/2"

- flat, , hood w/ top air cleaner intake 1/2"

12шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Hood w/ top air cleaner intake Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Hood w/ top air cleaner intake Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, hood w/ top air cleaner intake

4шт.

24

R27317

SHIELD - LH, dozer models, used w/ non sliding side

1шт.

Used with non sliding side shields, Fig. 458

1шт.

25

R27318

SHIELD

- RH, dozer models, used w/ non sliding side

1шт.

Used with non sliding side shields, Fig. 458

1шт.

26

R27226

SHIELD

- LH, loader models, used w/ non sliding side

1шт.

Used with non sliding side shields, Fig. 458

1шт.

27

R27227

SHIELD - RH, loader models, used w/ non sliding side

1шт.

Used with non sliding side shields, Fig. 458

1шт.

24

R35347

SHIELD

- LH, dozer models, used w/ sliding side

1шт.

Used with sliding side shields, Fig. 458

1шт.

25

R35348

SHIELD

- RH, dozer models, used w/ sliding side

1шт.

Used with sliding side shields, Fig. 458

1шт.

26

R35353

SHIELD

- LH, loader models, used w/ sliding side

1шт.

Used with sliding side shields, Fig. 458

1шт.

27

R35354

SHIELD

- RH, loader models, used w/ sliding side

1шт.

Used with sliding side shields, Fig. 458

1шт.

28

R25164

FASTENER

LATCH, used w/ sliding side shield

1-2шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Used w/ sliding side shield Hex, 1/4"-20 x 3/4", G5, Full Thd

2-4шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used w/ sliding side shield 1/4"

2-4шт.

31

25-104

NUT,1/4"-20, G5

Used w/ sliding side shield 1/4"-20, G5

2-4шт.
