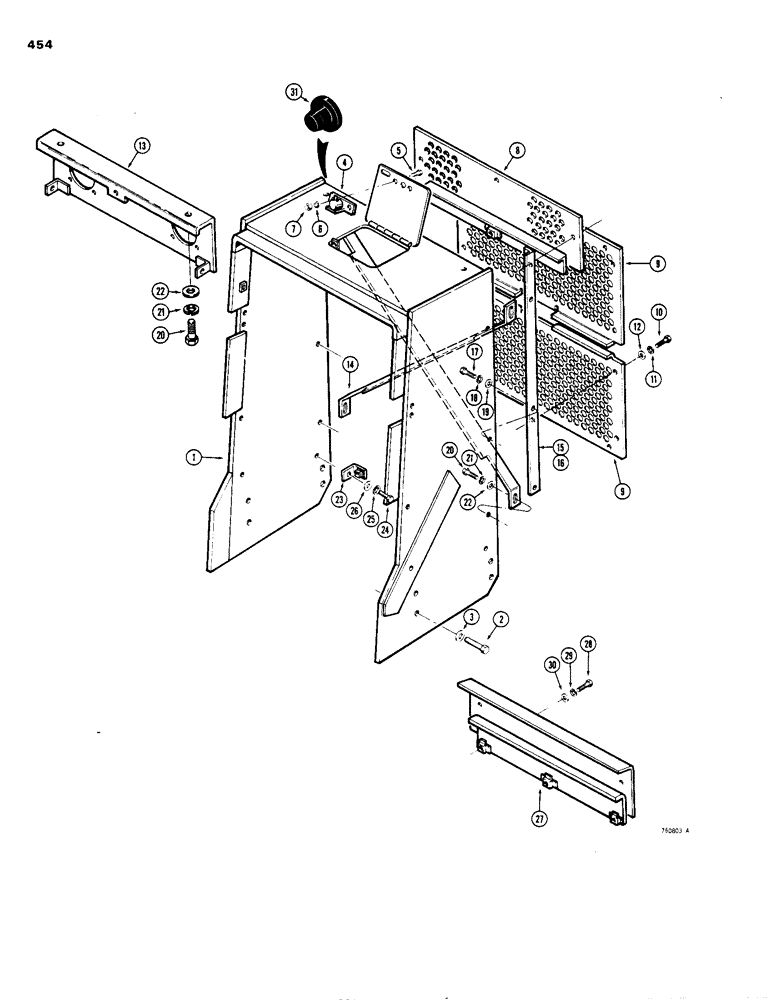

Запчасти Case 1150B (454) - LOADER RADIATOR SHROUD AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

R32105

GUARD

SHROUD - radiator guard

1шт.

2

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

8шт.

4

R25164

FASTENER

- pawl, adjustable

1шт.

5

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

25-104

NUT,1/4"-20, G5

2шт.

8

R27137

GUARD

GRILLE - headlight

1шт.

9

R26864

GUARD

GRILLE - radiator

2шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

13шт.

11

92-8

LOCK WASHER,1/2"

13шт.

12

195-33

WASHER,1/2"

- flat, 1/2"

13шт.

13

R33495

PLATE - headlight mounting

1шт.

14

R40846

BRACKET

BRACE - "X"

1шт.

15

R27148

BRACKET

ANGLE - RH, grille mounting

1шт.

16

R27147

BRACKET

ANGLE - LH, grille mounting

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 1/2" - 13 NC x 1"

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

20

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

21

92-8

LOCK WASHER,1/2"

6шт.

22

195-33

WASHER,1/2"

- flat, 1/2"

6шт.

23

R27212

ANGLE

- guard mounting

2шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

27

R27216

GUARD

- radiator, lower

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

29

92-8

LOCK WASHER,1/2"

5шт.

30

195-33

WASHER,1/2"

- flat, 1/2"

5шт.

31

R38025

PLUG

- rubber, if used

8шт.
