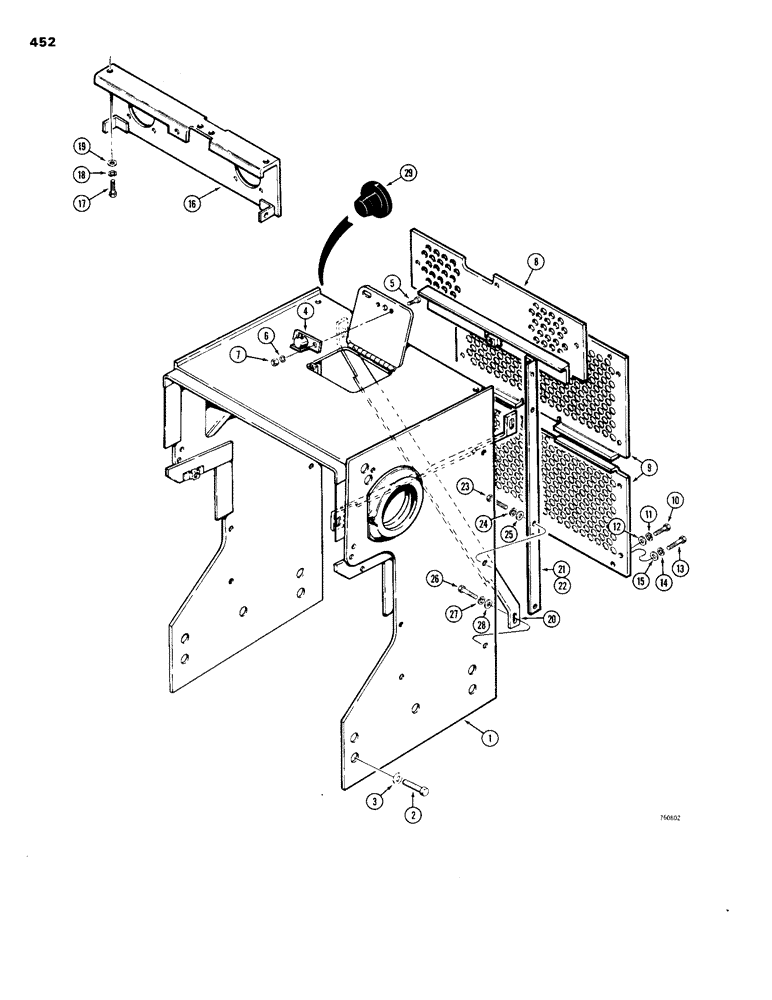

Запчасти Case 1150B (452) - DOZER RADIATOR SHROUD AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

R31573

GUARD

SHROUD - radiator guard

1шт.

2

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

10шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

10шт.

4

R25164

FASTENER

- pawl, adjustable

1шт.

5

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

25-104

NUT,1/4"-20, G5

2шт.

8

R27137

GUARD

GRILLE - headlight

1шт.

9

R26864

GUARD

GRILLE - radiator, standard

2шт.

9

R27713

GRILLER - radiator, forestry, not shown

2шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

10шт.

11

92-8

LOCK WASHER,1/2"

10шт.

12

195-33

WASHER,1/2"

- flat, 1/2"

10шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

10шт.

14

92-8

LOCK WASHER,1/2"

3шт.

15

195-33

WASHER,1/2"

- flat, 1/2"

3шт.

16

R33492

PLATE

- headlight mounting

1шт.

17

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

20

R27134

BRACE

- "X"

1шт.

21

R27148

BRACKET

ANGLE - R.H., grille mount

1шт.

22

R27147

BRACKET

ANGLE - L.H., grille mount

1шт.

23

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

26

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

27

92-8

LOCK WASHER,1/2"

4шт.

28

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

29

R38025

PLUG

- rubber, if used

8шт.
