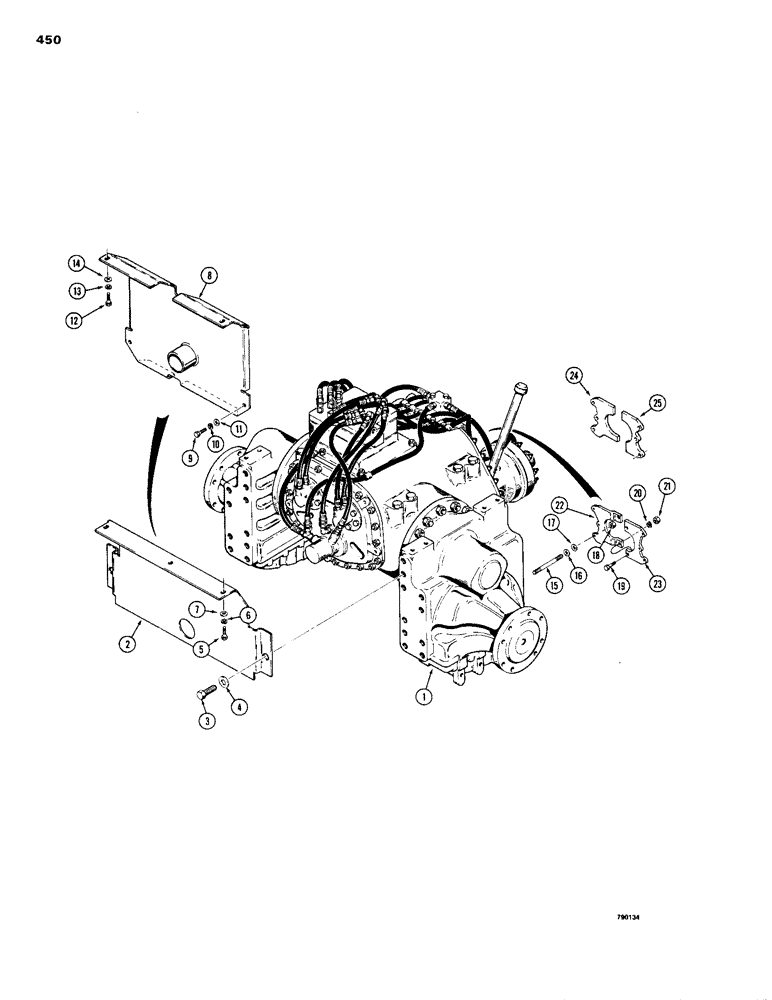

Запчасти Case 1150B (450) - REAR AND FRONT TRANSMISSION GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

TRANSMISSION - Fig. 148

1шт.

2

R36045

GUARD

- rear, drawbar

1шт.

3

13-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5, Full Thd

2шт.

4

195-53

WASHER,1" x 2" x .134"

- flat, 1"

2шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

3шт.

7

195-25

WASHER,3/8"

- flat, 3/8"

3шт.

8

R33417

GUARD

- rear, ripper

1шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

14

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

R40404

KIT

- guard, Includes: Refs. 15 - 25

1шт.

15

A51467

STUD

- 3/8" - 16 NC x 4-3/8"

6шт.

16

A50694

DISC

WASHER - seal

6шт.

17

195-25

WASHER,3/8"

- flat, 3/8"

6шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" x 16 NC

6шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

22

R39707

GUARD

- LH

1шт.

23

R39708

GUARD

- RH

1шт.

24

R36632

GUARD - LH, order Ref. 22

2шт.

25

R36632

GUARD - RH, order Ref. 24

1шт.
