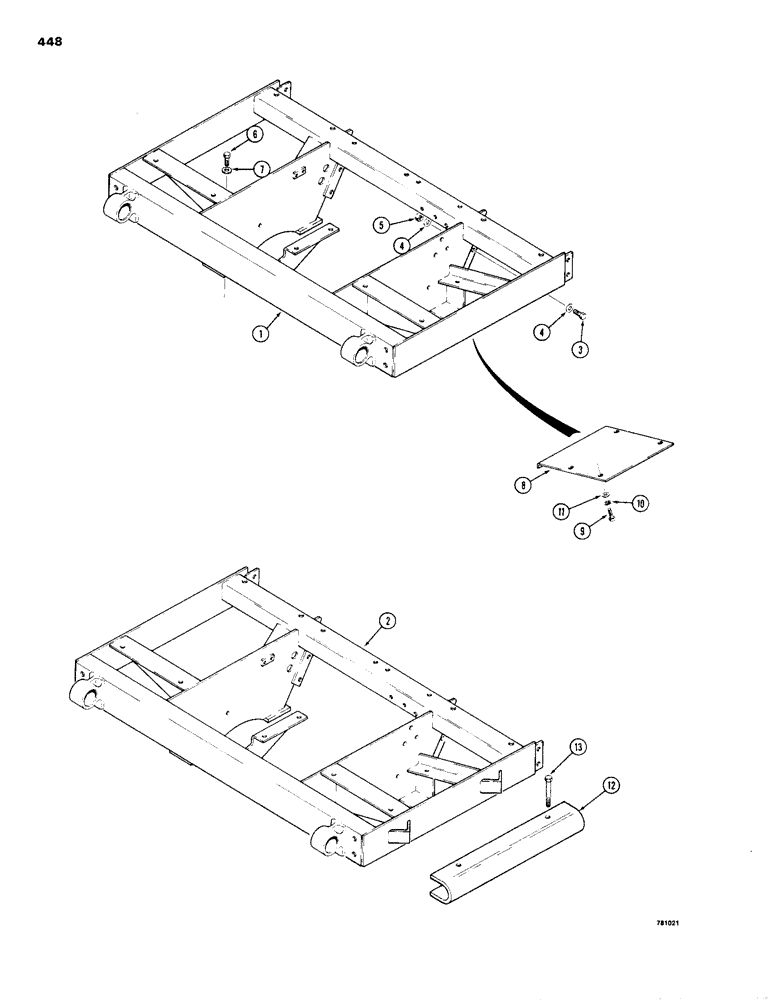

Запчасти Case 1150B (448) - SEAT AND RESERVOIRS FRAME AND SAFETY STRUT (05) - UPPERSTRUCTURE CHASSIS

1

R40292

FRAME

- dozer and drawbar, Start Serial: 3170107

1шт.

1

R26517

FUNNEL

FRAME - dozer and drawbar, Serial Range: -3170107

1шт.

2

R40293

FRAME

- loader, Start Serial: 3170107

1шт.

2

R36338

FRAME

- loader, Serial Range: -3170107

1шт.

3

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

HHCS - 5/16" - 11 NC x 2"

6шт.

4

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

12шт.

5

25-1010

NUT,5/8"-11, G5

6шт.

6

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

8шт.

8

R27237

PLATE ASSY.

GUARD - hydraulic lines

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

11

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

12

R38865

STAY

STRUT - safety

1шт.

13

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.
