(446) - UNDERCARRIAGE GUARDS, DOZER AND DRAWBAR MODELS

Запчасти Case 1150B (446) - UNDERCARRIAGE GUARDS, DOZER AND DRAWBAR MODELS (05) - UPPERSTRUCTURE CHASSIS

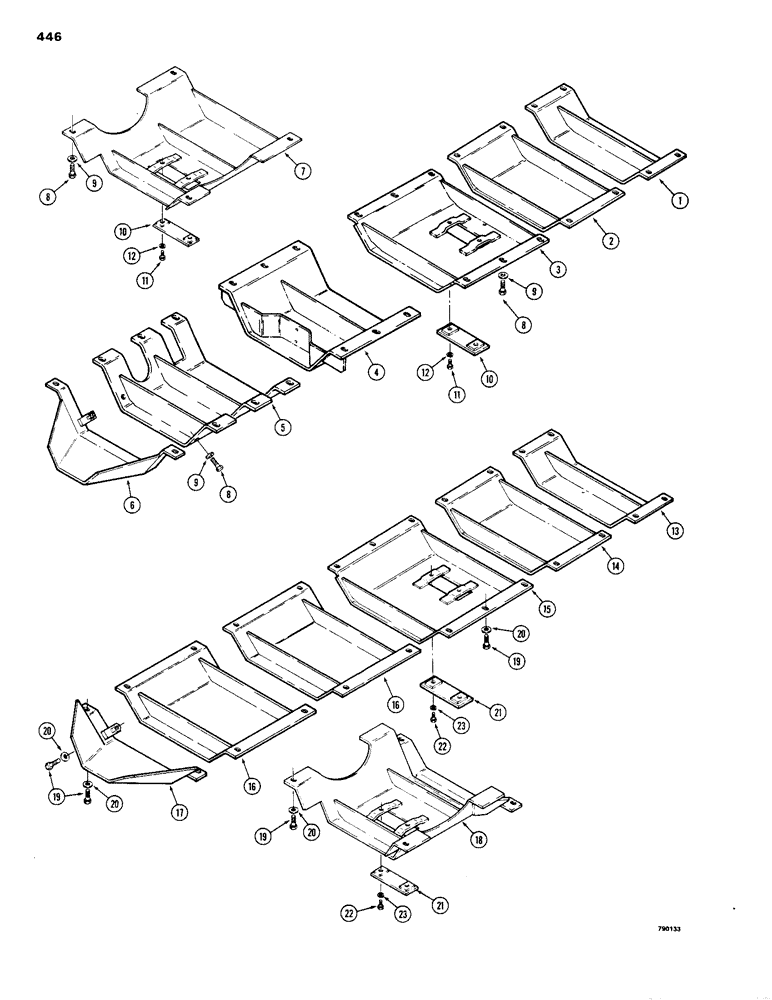

Схема запчастей Case 1150B - (446) - UNDERCARRIAGE GUARDS, DOZER AND DRAWBAR MODELS (05) - UPPERSTRUCTURE CHASSIS
5
4
16
23
9
9
12
3
22
8
1
12
10
21
2
20
18
11
17
14
6
15
20
8
22
16
11
19
19
19
7
8
23
20
21
10
9
13
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R26803

GUARD ASSY.

GUARD - cleanout

1шт.

2

R26805

GUARD

- center

1шт.

3

R26865

GUARD - oil pan

1шт.

4

R26868

GUARD

1шт.

5

R26875

GUARD

1шт.

6

R26861

GUARD

- extension

1шт.

7

R26356

GUARD ASSY.

GUARD - transmission

1шт.

8

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

36шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

36шт.

10

R26886

PLATE

2шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

13

R26803

GUARD ASSY.

GUARD - cleanout, loader models

1шт.

14

R26805

GUARD

- center, loader models

1шт.

15

R26800

GUARD - oil pan, loader models

1шт.

16

R26797

GUARD

- loader models

2шт.

17

R26793

GUARD

- extension, loader models

1шт.

18

R27909

GUARD

- transmission, loader models

1шт.

19

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Loader models Hex, 5/8"-11 x 2", G5

30шт.

20

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, loader models

30шт.

21

R26886

PLATE

loader models

2шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Loader models Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

WASHER - lock, , loader models 3/8"

4шт.
