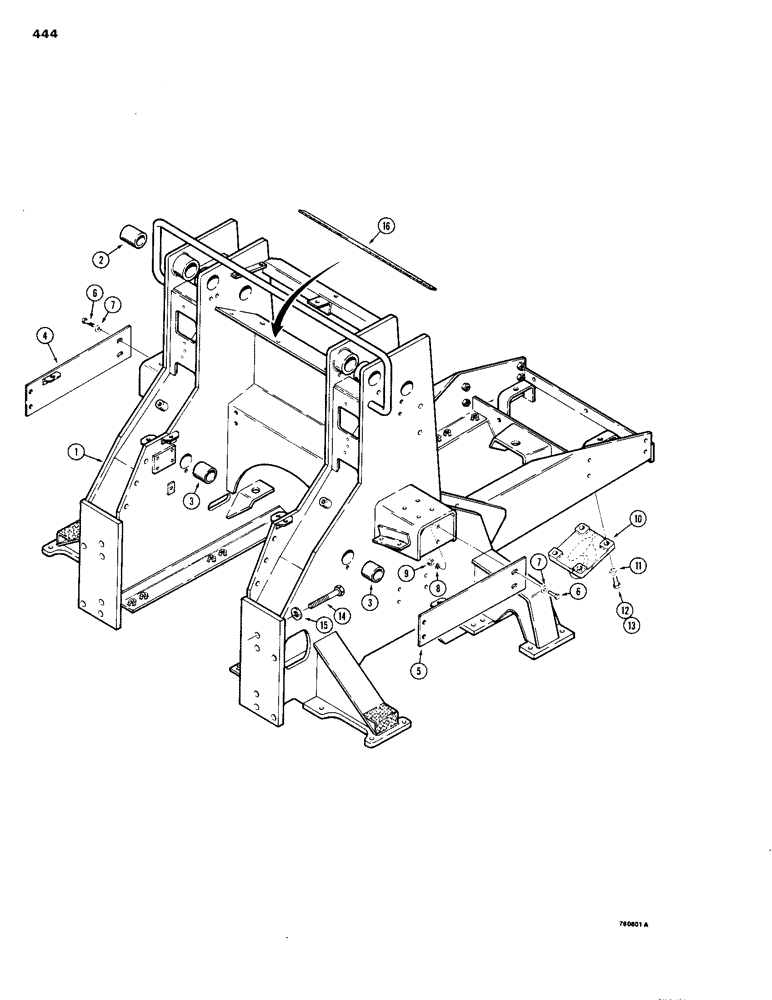

Запчасти Case 1150B (444) - LOADER ENGINE AND MAIN FRAME (05) - UPPERSTRUCTURE CHASSIS

1

R27085

FRAME, Includes: Refs. 2 & 3, Serial Range: -7306659

1шт.

1

R40291

FRAME , Includes: Refs. 2 & 3, Start Serial: 7306659

1шт.

2

D47245

BUSHING

- at loader arm

4шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- at lift cylinder

4шт.

4

R27101

PLATE - side frame, LH

1шт.

5

R27102

PLATE - side frame, RH

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

7

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

10

71671

PLATE ASSY.

HOOK - pull

1шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

12

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

13

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Models without pull hook Hex, 3/4"-10 x 1 3/4", G5

4шт.

14

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

HHCS - 1" - 8 NC x 2-1/2", grade 8

12шт.

15

D30196

WASHER

- flat, special

12шт.

16

R39424

SEAL - cab models

1шт.
