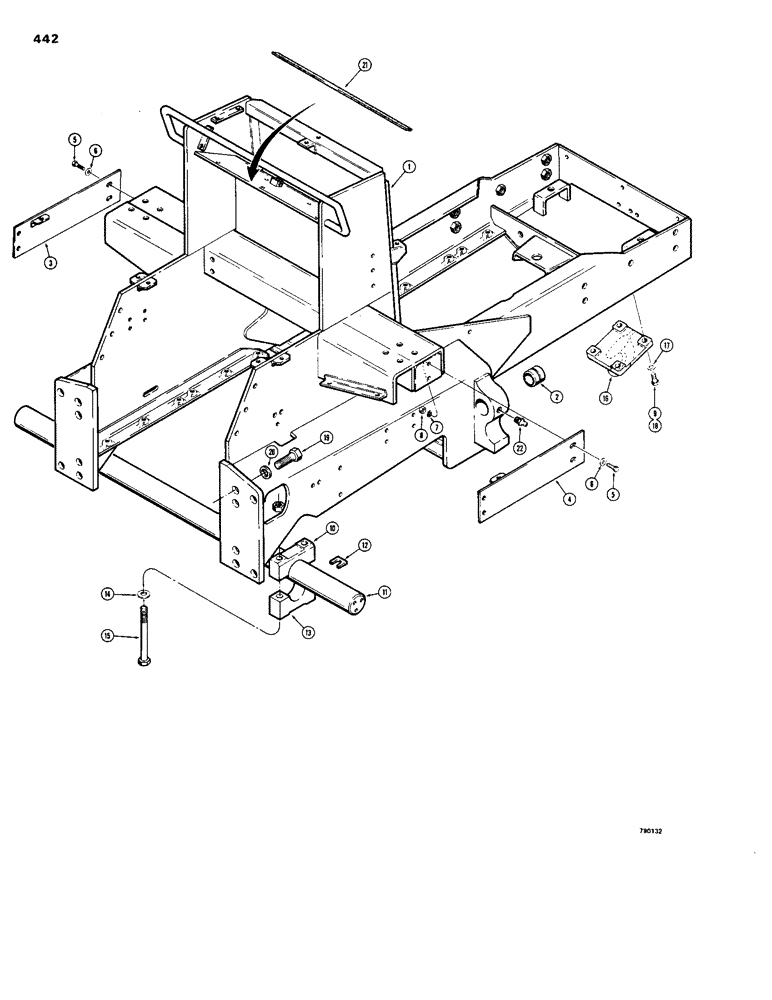

Запчасти Case 1150B (442) - DRAWBAR AND DOZER ENGINE AND MAIN FRAME (05) - UPPERSTRUCTURE CHASSIS

1

R26595

FRAME - 62" (1575 mm) gauge, Includes: Ref. 2, Serial Range: -3170107

1шт.

1

R31440

FRAME - 74" (1880 mm) gauge, Includes: Ref. 2, Serial Range: -3170107

1шт.

1

R40289

FRAME - 62" (1575 mm) gauge, Includes: Ref. 2, Start Serial: 3170107

1шт.

1

R40290

FRAME - 74" (1880 mm) gauge, Includes: Ref. 2, Start Serial: 3170107

1шт.

2

R26633

BUSHING

- all frames

2шт.

3

R26878

PLATE - side frame, LH

1шт.

4

R26879

PLATE - side frame, RH

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

6

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

7

92-8

LOCK WASHER,1/2"

8шт.

8

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

9

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

without pull hook Hex, 3/4"-10 x 1 3/4", G5

4шт.

10

R26859

BODY

CLAMP - pivot shaft, top

4шт.

11

R26860

SHAFT

- pivot, 62" (1574 mm) gauge dozer

1шт.

11

R31363

SHAFT

- pivot, 74" (1880 mm) gauge dozer

1шт.

12

R26802

SPACER

- clamp

4шт.

13

R26857

CLAMP

- pivot shaft, bottom

4шт.

14

D30196

WASHER

- special

8шт.

15

15-16144

BOLT,Hex, 1" - 8 x 9", Gr 5

HHCS - 1" - 8 NC x 9"

8шт.

16

71671

PLATE ASSY.

HOOK - pull

1шт.

17

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

18

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

19

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

HHCS - 1" - 8 NC x 2-1/2", grade 8

12шт.

20

D30196

WASHER

- special

12шт.

21

R39424

SEAL - cab models

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

25-2810

SQUARE NUT

heavy sq., frame

18шт.

D35240

CAGE

5/8 square nut

16шт.
