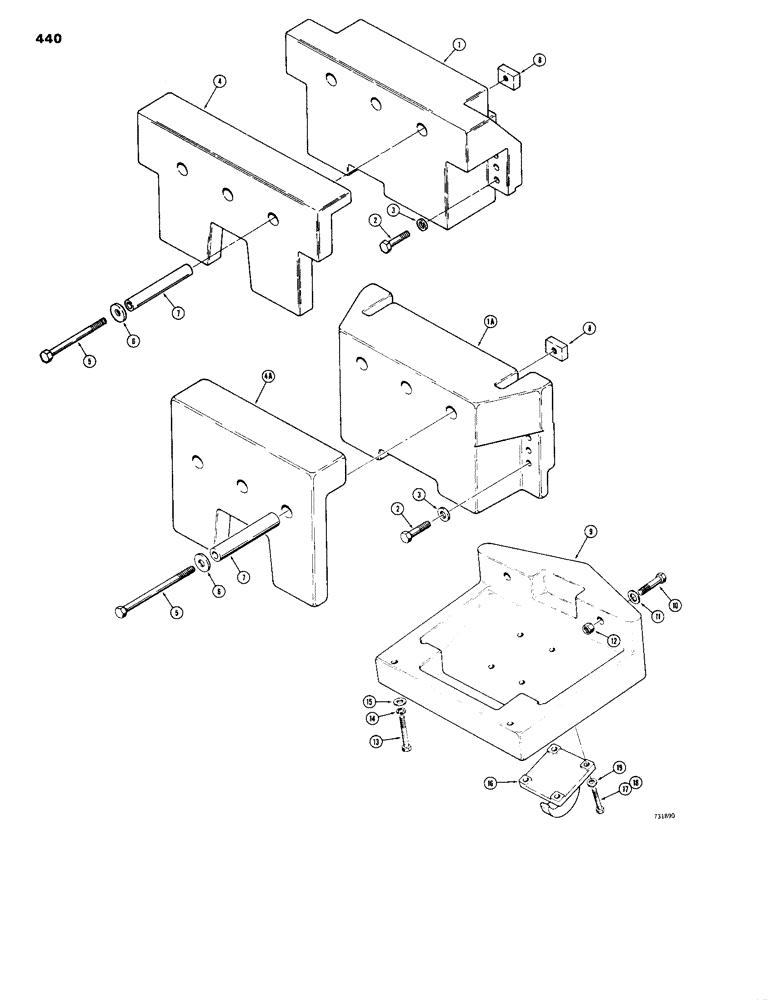

Запчасти Case 1150B (440) - COUNTERWEIGHTS, REAR COUNTERWEIGHT - LOADER MODELS W/OUT REAR EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

1

R29568

COUNTERWEIGHT - rear, loader models, 2000 lbs (907.2 kg), early production, order R31422

1шт.

1

R31422

WEIGHT

COUNTERWEIGHT - rear, loader models 2000 lbs. (907.2 kg), late production

1шт.

2

13-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

6шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

6шт.

4

R29005

WEIGHT

COUNTERWEIGHT - rear, 4-in-1 bucket loader models, 600 lbs (272.16 kg) early production, order R34123

1шт.

4a

R31423

WEIGHT

COUNTERWEIGHT - rear, 4-in-1 bucket, loader models 1000 lbs. (453.6 kg), late production

1шт.

5

15-16256

BOLT

HHCS - 1" - 8 NC x 16"

2шт.

6

K5386

WASHER

- special

2шт.

7

R29775

BUSHING

SPACER - counterweight

2шт.

8

R29774

BLOCK

- tapped

2шт.

9

R41701

WEIGHT

COUNTERWEIGHT - front, 1200 lbs. (544.32 kg) dozer models

1шт.

10

13-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

Front counterweight dozer models Hex, 1"-8 x 4 1/2", G5

2шт.

11

195-53

WASHER,1" x 2" x .134"

- flat, 1", front counterweight dozer models

2шт.

12

25-1016

NUT,1"-8, G5

Front counterweight dozer models 1"-8, G5

2шт.

13

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

HHCS - 5/8" - 11 NC x 5-1/2", front counterweight dozer models

4шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Front counterweight dozer models 5/8"

4шт.

15

195-41

WASHER,5/8"

- flat, , Front counterweight dozer models 5/8"

4шт.

16

71671

PLATE ASSY.

HOOK - pull, front counterweight dozer models

1шт.

17

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Without hook, front counterweight dozer models Hex, 3/4"-10 x 3 1/2", G5

4шт.

18

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

with hook, front counterweight dozer models Hex, 3/4"-10 x 4", G5

4шт.

19

195-45

WASHER,3/4"

Front counterweight dozer models 3/4"

4шт.
