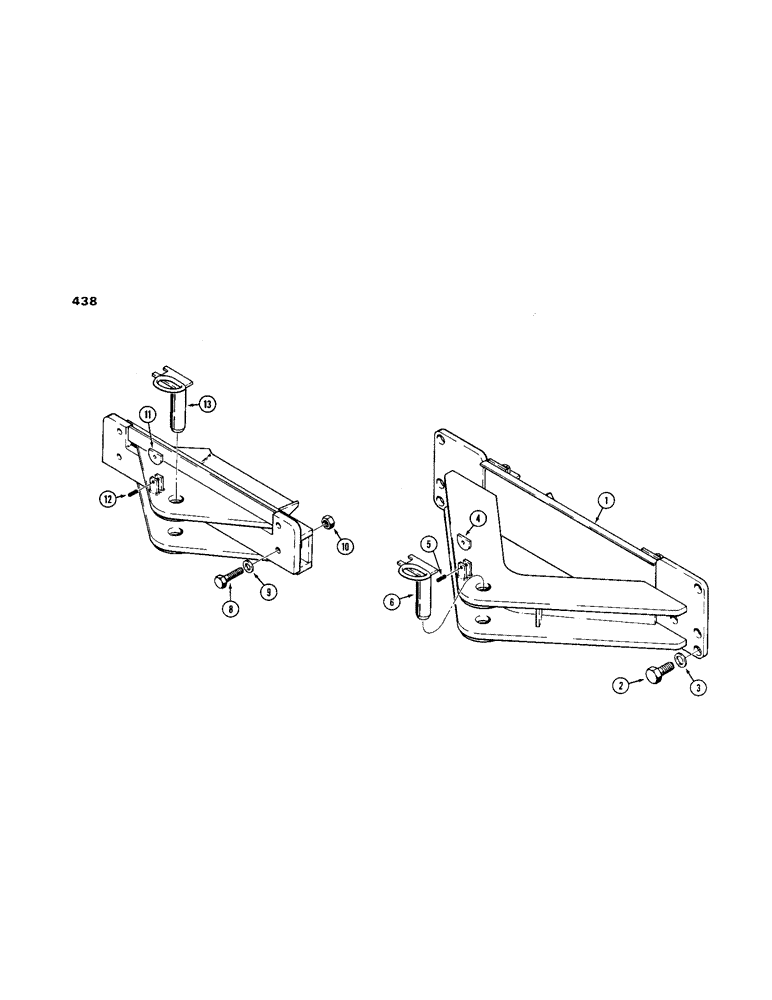

Запчасти Case 1150B (438) - DRAWBARS, MODELS W/OUT REAR MOUNTED EQUIPMENT, REAR COUNTERWEIGHT (05) - UPPERSTRUCTURE CHASSIS

1

R41056

DRAWBAR

- crawler

1шт.

2

13-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

8шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

8шт.

4

R26752

DISC

LOCK DISC - drawbar pin

1шт.

5

138-153

LOCK PIN,5/16" x 1", Slotted

PIN, 5/16" x 1", Slotted

1шт.

6

R26750

PIN

- drawbar

1шт.

7

R26732

DRAWBAR, SWINGING

DRAWBAR - crawler

1шт.

8

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

10

25-1012

NUT,3/4"-10, G5

4шт.

11

R26752

DISC

LOCK DISC - drawbar pin

1шт.

12

138-153

LOCK PIN,5/16" x 1", Slotted

PIN, 5/16" x 1", Slotted

1шт.

13

R26750

PIN

- drawbar

1шт.
