Запчасти Case 1150 (084) - HYDRAULIC VALVE AND HOSES (07) - HYDRAULIC SYSTEM

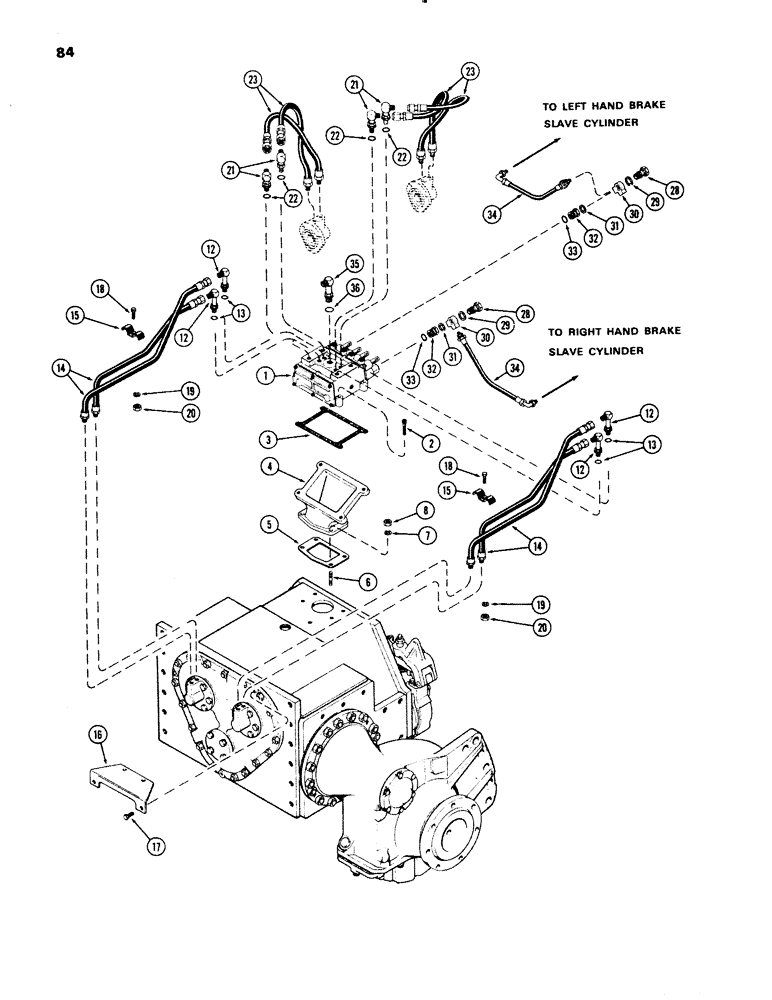

Схема запчастей Case 1150 - (084) - HYDRAULIC VALVE AND HOSES (07) - HYDRAULIC SYSTEM
33
20
7
5
31
30
16
22
35
29
14
3
28
18
20
28
23
6
34
8
12
15
22
4
31
18
14
13
17
15
22
21
34
12
13
36
12
32
30
21
23
19
32
12
1
29
33
19
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R20723

VALVE

ASSY. - trans. control (Repairs Figure 86)

1шт.

2

61-632

HEX SOC SCREW,3/8"-16 x 2"

SCREW - valve, 3/8 x 2" N.C. hex. sckt. hd.

4шт.

3

50238

GASKET - valve mounting

1шт.

4

A50330

NO LONGER SERVICED

BASE - support, control valve

1шт.

5

A50331

GASKET

- valve base mounting

1шт.

6

G11204

STUD

- valve base, 3/8" N.C. x 1-7/16"

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

12

R20739

FITTING

ELBOW ASSY. - hose, 90deg. adjustable, long, Includes: Ref. 13

4шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

14

A50297

HYDRAULIC HOSE,6.35 mm ID x 704.80 mm, SAE100R1

6.35 mm ID x 704.80 mm, SAE 100R1, Assy - Valve to rear trans. cover

4шт.

15

A50369

CLAMP

- rear hose retainer

2шт.

16

A50328

BRACKET - hose clamp (on trans. case)

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Clamp to bracket Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - hose, 90 deg. adjustable, short, Includes: Ref. 22

6шт.

22

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

23

A50329

HOSE

ASSY. - valve to trans. front cover (18-1/2" long)

4шт.

28

A12864

BOLT

- connecting, brake line

2шт.

29

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - connecting bolt (33/64 x 13/16 x 1/32" copper)

2шт.

30

51200243

FITTING

- brake tube & hose

2шт.

31

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- brake fitting & adapter (39/64 x 13/16 x 1/32" copper)

2шт.

32

72125

ADAPTER

- connector, Serial Range: bolt-valve

2шт.

34

A50326

HOSE

- brake line, Serial Range: valve-cylinder

2шт.

35

R20894

FITTING

ELBOW ASSY. - center, 90 deg. adjustable, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow (3/4 x 15/16 x 3/32")

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - adapter (41/64 x 13/16 x 5/64")

2шт.
