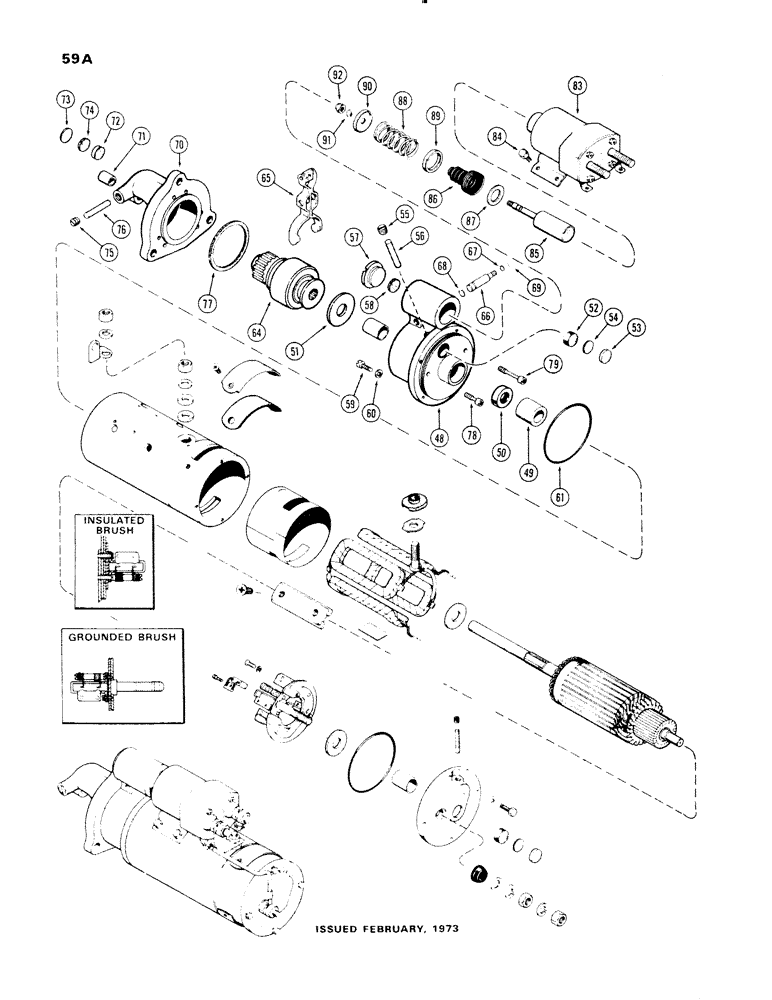

Запчасти Case 1150 (059A) - D42964 STARTER, (401B) DIESEL ENGINE, USED PRIOR TO SN. 7301780 (06) - ELECTRICAL SYSTEMS

D42964

X

STARTER ASSY., Includes: Ref. 48 - 92

1шт.

48

R21579

HOUSING

ASSY. - shift lever, Includes: Ref. 49 - 56

1шт.

49

R21580

BUSHING

- housing (27/32 x 1 x 1-1/4")

1шт.

50

R21582

OIL SEAL

- oil (13/16 x 1-3/8 x 13/32")

1шт.

51

R15145

DISC

WASHER - brake, starter drive

1шт.

52

A41923

PLUG

- oil reservoir (felt)

1шт.

53

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole (1-1/32" exp.)

1шт.

54

A41973

GASKET

- expansion plug

1шт.

55

221-1041

PLUG

- oil wick hole

1шт.

56

R15023

WICK

- oil

1шт.

57

R21587

PLUG

- shift lever housing

1шт.

58

A41924

GASKET

- housing plug

2шт.

59

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Shift lever housing Hex, 1/4"-28 x 1", G5

5шт.

60

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

61

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

"O" RING - shift lever hsg. (4-1/8 x 4/38 x 13/32")

1шт.

64

A42397

DRIVE

ASSY. - starter

1шт.

65

D32547

LEVER

- shifter

1шт.

66

A42199

PIN

STUD - pivot, shift lever

1шт.

67

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - pivot stud (1/4 x 3/8 x 1/16")

1шт.

68

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - pivot stud (3/8 x 1/2 x 1/16")

1шт.

69

A40422

RING

- snap, pivot stud retaining

2шт.

70

A40283

HOUSING

ASSY. - drive end

1шт.

71

A40893

BUSHING

- armature pilot (5/8 x 3/4 x 25/32"), Includes: Ref. 72 - 76

1шт.

72

A41923

PLUG

- oil reservoir (felt)

1шт.

73

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole (1-1/32") exp.)

1шт.

74

A41973

GASKET

- expansion plug

1шт.

75

221-1041

PLUG

- oil wick hole

1шт.

76

R15023

WICK

- oil

1шт.

77

R21562

GASKET

- drive eng hsg. to shifter lever hsg.

1шт.

78

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end hsg (5/16 x 7/8" N.C. sckt. hd.)

1шт.

49

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive end hsg. (5/16 x 1-1/2" N.C. sckt. hd.)

5шт.

83

A42376

SWITCH

SOLENOID ASSY. - (See Figure 60)

1шт.

84

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mtg. (1/4 x 3/8" N.C. hex.)

4шт.

85

A42309

PLUNGER

- solenoid core

1шт.

86

A42308

BOOT

- plunger

1шт.

87

A41922

WASHER

SEAT - boot (27/32 x 1-3/8 x 1/16"), Includes: Ref. 88

1шт.

88

A41242

SPRING

- plunger return

1шт.

89

R21572

RETAINER

- spring (with 1-1/4" hole)

1шт.

90

R21571

RETAINER

- spring (with 3/8" hole)

1шт.

91

A40422

RING

- snap, plunger spring retaining

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT - stop, 5/16" N.F. hex.

1шт.
