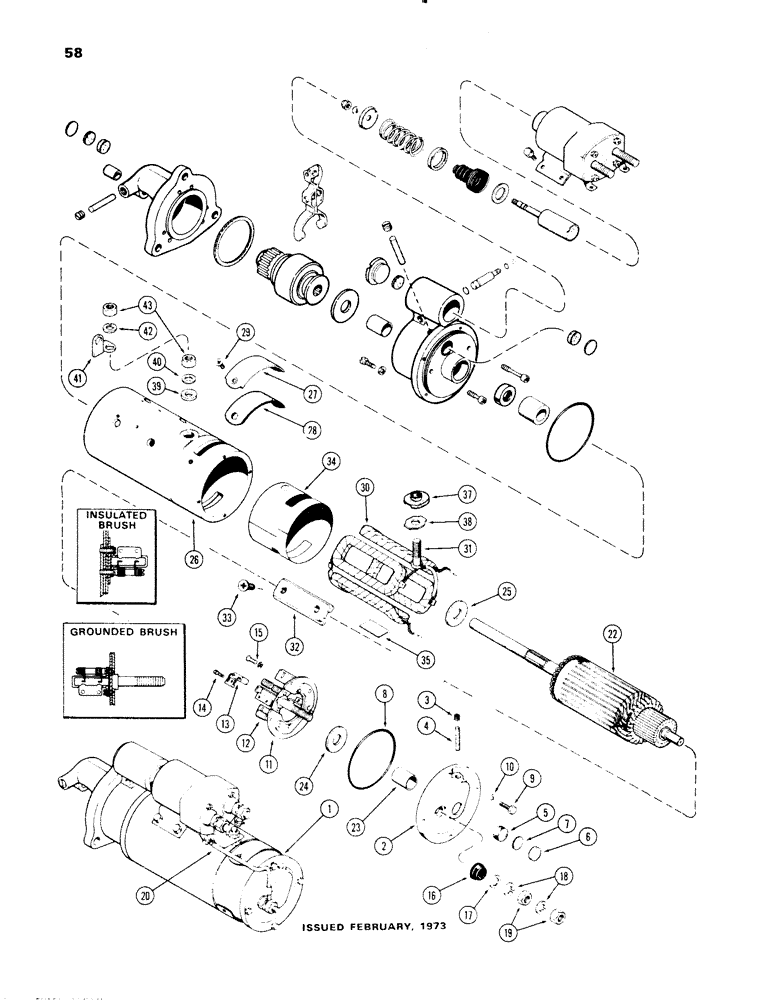

Запчасти Case 1150 (058) - D42964 STARTER, (401B) DIESEL ENGINE, USED PRIOR TO SN. 7301780 (06) - ELECTRICAL SYSTEMS

1

D42964

X

STARTER ASSY. - (Delco #1113949), Includes: Ref. 2 - 43

1шт.

2

A42314

GASKET

FRAME ASSY. - commutator end

1шт.

3

221-1041

PLUG

- oil wick hole

1шт.

4

R15023

WICK

- oil

1шт.

5

A41923

PLUG

- oil reservoir (felt)

1шт.

6

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole (1-1/32" exp.)

1шт.

7

A41973

GASKET

- expansion plug

1шт.

8

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

"O" RING - end frame

1шт.

9

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

End frame Hex, 1/4"-28 x 1", G5

4шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

11

A42373

PLATE

ASSY. - brush holder mtg. (less brushes), Includes: Ref. 12

1шт.

12

A25393

SPRING

- brush tension

8шт.

13

A41456

BRUSH, COMMUTATOR

BRUSH - starter

8шт.

14

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- brush lead (#8-32 x 5/16" rd. hd.)

8шт.

15

A43847

SCREW,3/8" - 32 x 1/2"

ASSY. - mtg. plate (w/lockwashers)

3шт.

16

A41918

INSULATOR

BUSHING - terminal stud insulating

1шт.

17

D30006

WASHER

- terminal stud (1/2 x 7/8 x 1/32")

1шт.

18

192-113

LOCK WASHER,1/2"

WASHER - term. stud ( lock) 1/2"

2шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal stud 1/2"-13, G5

2шт.

20

A41978

ELECTRICAL WIRE

WIRE - term., Serial Range: stud-solenoid

1шт.

22

A41458

ARMATURE

- starter

1шт.

23

A25336

BUSHING

- armature pilot (in comm. end)

1шт.

24

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- thrust, armature (at comm. end)

1шт.

25

A40892

WASHER

- thrust, armature (at lever hsg.)

1шт.

26

NSS

NOT SOLD SEPARAT

FRAME - starter housing

1шт.

27

A43366

PLATE

- cover, brush (Replaces A41957)

2шт.

28

A41849

GASKET

- cover

1шт.

29

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- cover plate (#8-24 x 1/2" Phillips hd.)

4шт.

30

A41590

COIL

ASSY. - field, Includes: Ref. 31

1шт.

31

A40896

STUD

- field terminal

1шт.

32

R15115

SHOE

- pole

4шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoe (3/8 x 5/8" N.F. Phillips hd.)

8шт.

34

A41920

INSULATOR

- field coil

1шт.

35

A41977

RUBBER INSULATOR

INSULATION - coil wire junction

2шт.

A41925

BUSHING

ASSY. - field coil stud insulating, Includes: Ref. 37 - 43

1шт.

37

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud (inner)

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

39

D30005

INSULATOR

- field coil stud (outer)

1шт.

40

D30006

WASHER

- field coil stud (1/2 x 7/8 x 1/32")

1шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR - coil, Serial Range: stud-solenoid

1шт.

42

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

1шт.

43

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.
