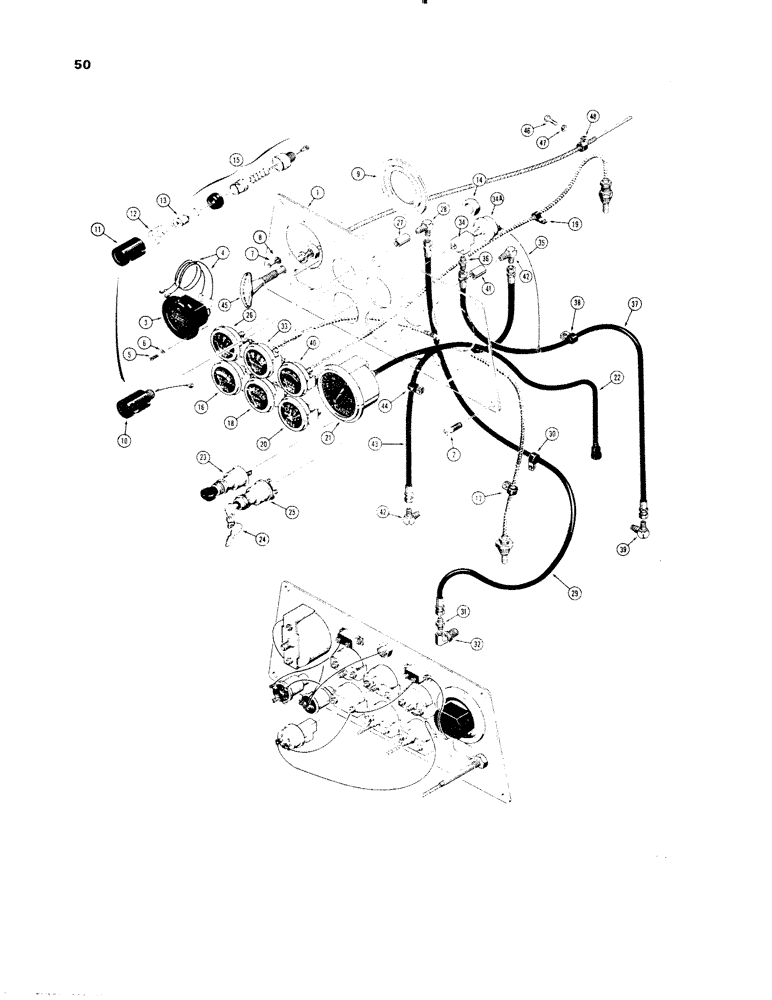

Запчасти Case 1150 (050) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

1

D41010

PANEL

- instrument

1шт.

2

174-205

SCREW,Phil Rnd Hd, 5/16" - 24 x 7/8"

RHMS - 5/16" - 24 NF x 7/8"

4шт.

D39287

HOURMETER

KIT - hourmeter, Includes: Ref. 3 - 6

1шт.

3

R24646

ELECTRICAL GAUGE

METER - hour

1шт.

4

D39285

ELECTRICAL WIRE

WIRE - hourmeter (36" long)

2шт.

D39284

KIT

PACKAGE - mounting hardware, Includes: Ref. 5 and 6

1шт.

5

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

6

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

7

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2" (ZINC PLATED)

3шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

9

D35079

DAMPER

DAMPENER - vibration

1шт.

10

D35815

LAMP

- dash, Includes: Ref. 11 - 15

1шт.

11

D37918

COVER

- lamp

1шт.

12

D37919

LENS

- lamp

1шт.

13

R19897

BULB

- lamp

1шт.

14

D39095

NUT

- hex., special

1шт.

15

NSS

NOT SOLD SEPARAT

BODY AND WIRE - lamp

1шт.

16

D44005

ELECTRICAL GAUGE

GAUGE - converter temperature

1шт.

17

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- converter temperature tube

1шт.

18

11284

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

19

49832

CLAMP

- water temperature tube

1шт.

20

R18748

AMMETER

GAUGE - ammeter

1шт.

21

D38122

TACHOMETER

- engine, R.P.M.

1шт.

22

D48095

CABLE

- tachometer

1шт.

23

D35065

SWITCH

- light

1шт.

D35092

SWITCH

AND KEY - complete, Includes: Ref. 24 and 25

1шт.

24

D36822

KEY

- switch, set of two

1шт.

25

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

26

R15953

GAUGE

- torque converter oil pressure

1шт.

27

221-335

COUPLING,Pipe, 1/8" NPT

COUPLER - female

1шт.

28

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90deg.

1шт.

29

D95115

HOSE

- converter to oil pressure gauge

1шт.

30

49774

CLAMP

- converter pressure hose

1шт.

31

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, male

1шт.

32

D48854

FITTING

ELBOW - male, 90deg.

1шт.

33

D22853

GAUGE

- engine oil pressure

1шт.

34

217-10

TEE,1/8" - 27 NPTF Fem

- pipe, female (1/8" NPT)

1шт.

34a

D28798

SWITCH

- pressure, Includes: Ref. 35

1шт.

35

D28797

ELECTRICAL WIRE

WIRE - switch

1шт.

36

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight

1шт.

37

D95116

HOSE

- engine to oil pressure gauge

1шт.

38

D43839

CLAMP

- engine oil pressure hose

1шт.

39

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90deg.

1шт.

40

D29570

GAUGE

- transmission oil pressure

1шт.

41

221-335

COUPLING,Pipe, 1/8" NPT

COUPLER - female, straight

1шт.

42

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90deg.

2шт.

43

D95114

HOSE

- transmission to oil pressure gauge

1шт.

44

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- transmission oil pressure hose

1шт.

45

D22773

CONTROL

- engine shut off

1шт.

46

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

47

92-6

LOCK WASHER,3/8"

1шт.

48

D43839

CLAMP

- engine shut off

1шт.
