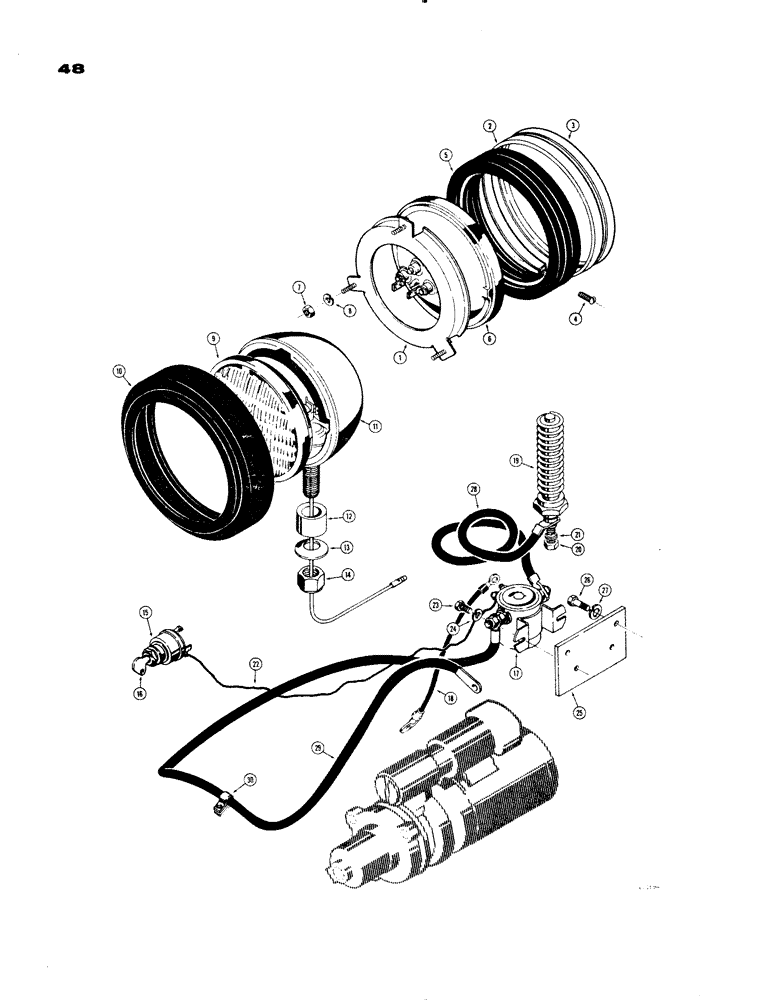

Запчасти Case 1150 (048) - D41701 HEADLIGHT ASSEMBLY (06) - ELECTRICAL SYSTEMS

D41701

LAMP

HEADLIGHT ASSEMBLY - 24 volt, Includes: Ref. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

FRAME - light

1шт.

2

A40693

HUB CAP

RETAINING RING - light, rear

1шт.

3

A40694

RETAINER

RETAINING RING - light, front

1шт.

4

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

RHMS - #10 - 24 NC x 3/4" (Zinc plated)

2шт.

5

A40695

RING

RETAINER - light, rubber

1шт.

6

D37920

LAMP

LIGHT - sealed beam, 24 volt

1шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex., (#10 - 24 NC) Zinc plated

6шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

D35913

LAMP

TAILLIGHT ASSEMBLY - 24 volt, Includes: Ref. 9 - 14

1шт.

9

D37920

LAMP

LIGHT - sealed beam, 24 volt, D35913 taillight assembly

1шт.

10

A25210

MOUNTING PARTS

RETAINER - light, rubber, D35913 taillight assembly

1шт.

11

NSS

NOT SOLD SEPARAT

SHELL - light, D35913 taillight assembly

1шт.

12

D37048

BUSHING

D35913 taillight assembly

1шт.

13

D37049

WASHER

- special, D35913 taillight assembly

1шт.

14

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), D35913 taillight assembly

1шт.

15

D35092

SWITCH

AND KEY - electrical, engine preheater, Includes: Ref. 16

1шт.

16

D36822

KEY

- switch, set of two, engine preheater

1шт.

17

D31479

SOLENOID SWITCH

SWITCH - solenoid, preheater, engine

1шт.

18

D31548

ELECTRICAL WIRE

WIRE - ground, solenoid, engine preheater

1шт.

19

A34278

HEATER

ELEMENT - manifold heater preheater (24 volt), engine

1шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Engine Pre-heater

1шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Engine preheater 1/4"

1шт.

22

G44090

CABLE

WIRE - electrical switch to solenoid (18" long), engine preheater

1шт.

23

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Engine preheater Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Engine preheater 1/4"

2шт.

24a

95-4

WASHER,1/4"

- plain () Not shown, engine preheater 1/4"

2шт.

25

D47796

BRACKET

- solenoid mounting, engine preheater

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Engine preheater Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

27

92-5

LOCK WASHER,5/16"

engine preheater 5/16"

2шт.

28

A21483

CABLE

- solenoid to preheater element (15-3/4" long), engine

1шт.

29

D47797

CABLE

- solenoid to starter (11-1/2" long), engine preheater

1шт.

30

49836

CLAMP

- cable (If required), engine preheater

1шт.

A40476

HEATER

- engine block (Includes cord) Not illustrated

2шт.
